Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

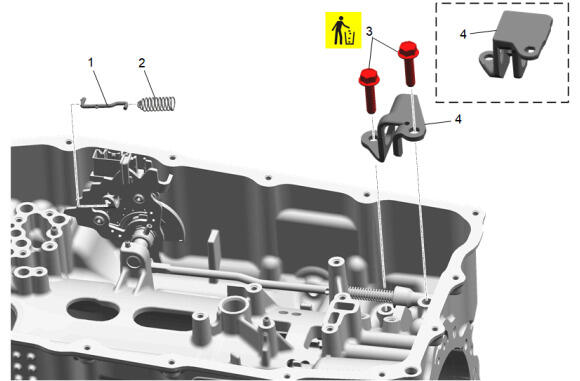

  1. GM5420347Courtesy of GENERAL MOTORS COMPANY

    Manual Valve Link Spring (2) - Remove

  2. Manual Valve Link (1) - Remove
  3. Parking Pawl Actuator Bracket Bolt (3) - Remove and DISCARD [2x]
  4. Park Pawl Actuator Bracket (4) - Remove

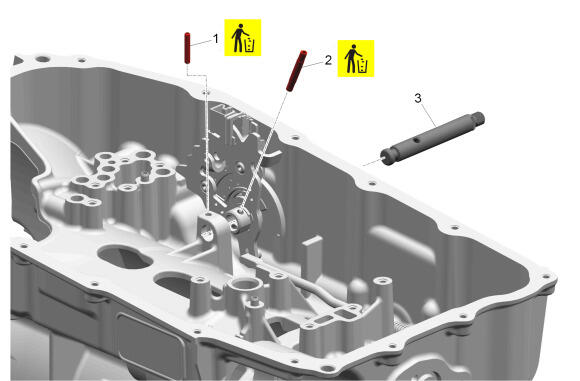

  5. GM5420348Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Pin Reuse Caution .

    Manual Shift Detent Lever Hub Pin (1) - Remove and DISCARD

  6. Manual Shift Shaft Pin (2) - Remove and DISCARD
  7. Manual Shift Shaft (3) - Remove

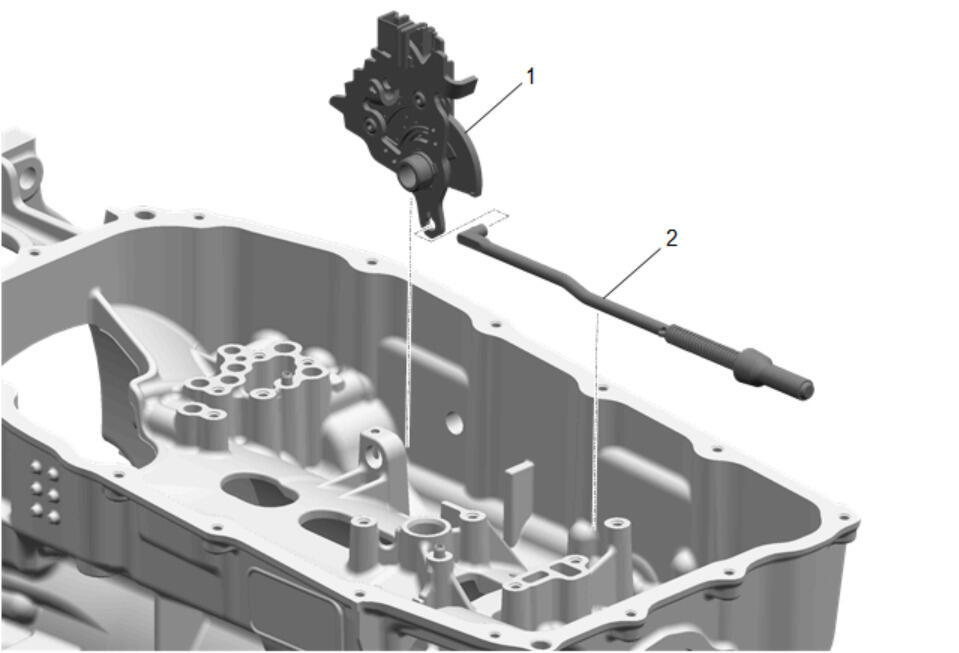

  8. GM5420349Courtesy of GENERAL MOTORS COMPANY

    Manual Shift Shaft Position Switch Assembly (1) - Remove

  9. Park Pawl Actuator (2) - Remove

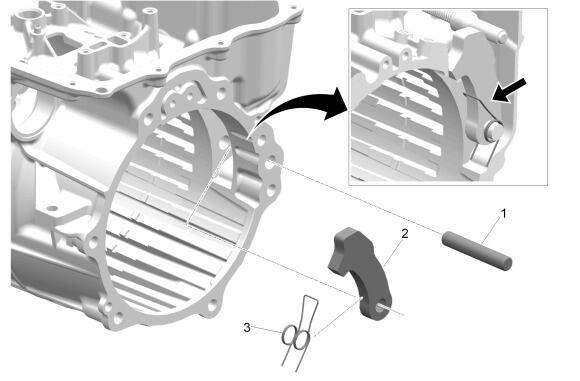

  10. GM5420350Courtesy of GENERAL MOTORS COMPANY

    Park Pawl Shaft (1) - Remove

  11. Park Pawl (2) - Remove
  12. Park Pawl Spring (3) - Remove
