Special Tools

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

DT-47693-2 Compressor Adapter
DT-51087 Bearing Installer
GE-8092 Driver Handle

Equivalent regional tools: Special Tools

Courtesy of GENERAL MOTORS COMPANY

Automatic Transmission Case Extension Hole Plug (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

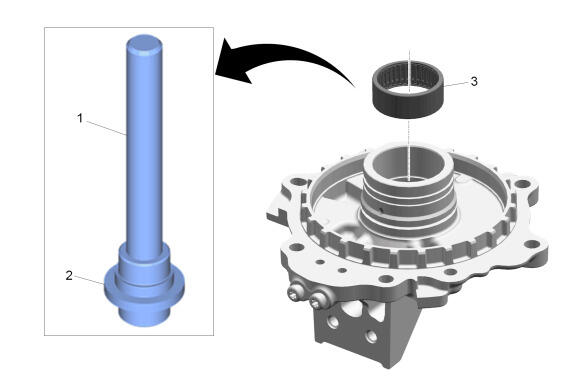

Assemble the tools as shown. Use the GE-8092 Driver Handle (1) with DT-51087 Bearing Installer (2) to install Output Shaft Bearing (3).
Output Shaft Bearing (3) - Install
Courtesy of GENERAL MOTORS COMPANY

Assemble the tools as shown. Use the GE-8092 Driver Handle (1) with DT-51087 Bearing Installer (2) to install Output Shaft Bearing (3).
Output Shaft Bearing (3) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Seal Reuse Caution

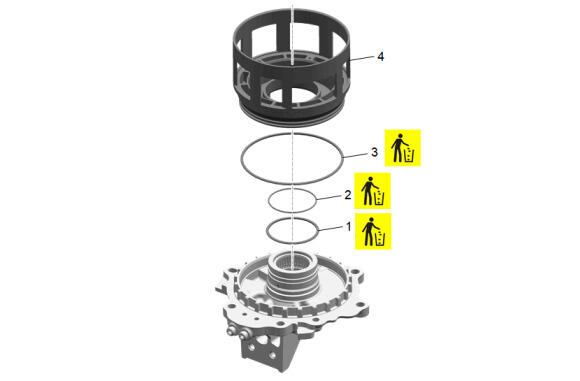

1-2-3-4-5-Reverse Clutch Piston Inner Seal - O-Ring (1) - Install NEW
1-2-3-4-5-Reverse Clutch Piston Inner Seal (2) - Install NEW
1-2-3-4-5-Reverse Clutch Piston Outer Seal (3) - Install NEW
1-2-3-4-5-Reverse Clutch Piston (4) - Install
Courtesy of GENERAL MOTORS COMPANY

1-2-3-4-5-Reverse Clutch Piston Return Spring (1) - Install

CAUTION:

Refer to Seal Reuse Caution .

1-2-3-4-5-Reverse Clutch Piston Dam Seal (2) - Install NEW
1-2-3-4-5-Reverse Clutch Piston Dam (3) - Install
Use DT-47693-2 Compressor Adapter (4) and an arbor press to install the retaining ring (5).
1-2-3-4-5-Reverse Clutch Piston Dam Retaining Ring (5) - Install NEW
