Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

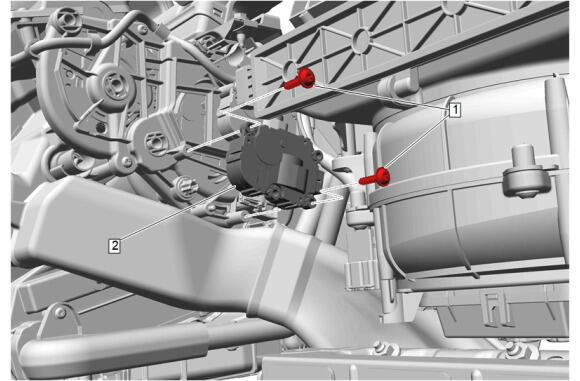

  1. GM5638564Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  2. Programmable Temperature Valve Actuator- Right Side (2) - Install
  3. CAUTION:

    Refer to Fastener Caution .

  4. Heater and Air Conditioning Evaporator and Blower Upper and Blow Lower Case Bolt (1) - Install and tighten [2x] - Fastener Specifications
  5. GM5338075Courtesy of GENERAL MOTORS COMPANY

    With the aid of an assistant, position the instrument panel tie bar assembly into the vehicle. (1)

  6. Install the instrument panel wiring harness to the position noted in the removal procedure.
  7. Connect and position the wiring harness.
  8. Remove the support from the heater and air conditioning and evaporator blower module.
  9. GM5337748Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Tie Bar Bolt (1) - Install and tighten - Fastener Specifications

  10. Heater and Air Conditioning Evaporator and Blower Module Bolt (2) - Install and tighten [6x] - Fastener Specifications
  11. GM5337747Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Tie Bar Bolt (1) - Install and tighten [4x] - Fastener Specifications

  12. GM5337750Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Tie Bar Bolt (1) - Install and tighten [4x] - Fastener Specifications

  13. Front Compartment Fuse Block Bolt (2) - Install and tighten [2x] - Fastener Specifications
  14. GM5337744Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Tie Bar Brace Bolt (1) - Install and tighten [3x] - Fastener Specifications

  15. GM5454443Courtesy of GENERAL MOTORS COMPANY

    Serial Data Gateway Bracket (2) - Install

  16. Serial Data Gateway Module Bracket Bolt (1) - Tighten [2x] - Fastener Specifications
  17. Connect and position the wiring harness.
  18. GM5454224Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Typical wiring harness shown. Individual wiring harnesses may differ based on option content.

    Connect the electrical connectors. (1)

  19. GM5335101Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Outer Air Outlet Inner Duct - Right Side (1) - Install

  20. GM5335106Courtesy of GENERAL MOTORS COMPANY

    Air Distributor Duct Bolt (2) - Install and tighten [2x] - Fastener Specifications

  21. Air Distributor Duct Bolt (1) - Install and tighten - Fastener Specifications
  22. GM5501911Courtesy of GENERAL MOTORS COMPANY

    Side Window Defogger Outlet Duct - Right Side (1) - Install

  23. GM5501910Courtesy of GENERAL MOTORS COMPANY

    Side Window Defogger Outlet Bolt (1) - Install and tighten - Fastener Specifications

  24. GM5335530Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Outer Air Outlet Inner Duct - Left Side (1) - Install

  25. GM5335527Courtesy of GENERAL MOTORS COMPANY

    Air Distributor Duct Bolt (2) - Install and tighten - Fastener Specifications

  26. Air Distributor Duct Bolt (1) - Install and tighten [2x] - Fastener Specifications
  27. Connect the electrical connector.
  28. GM5502704Courtesy of GENERAL MOTORS COMPANY

    Side Window Defogger Outlet Duct - Left Side (1) - Install

  29. GM5502702Courtesy of GENERAL MOTORS COMPANY

    Side Window Defogger Outlet Bolt (1) - Install and tighten - Fastener Specifications

  30. GM5331769Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Center Air Outlet Duct (1) - Install

  31. Clip the harness onto the instrument panel center air outlet duct.
  32. GM5331767Courtesy of GENERAL MOTORS COMPANY

    Air Distributor Duct Bolt (1) - Install and tighten [3x] - Fastener Specifications

  33. GM5493268Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Carrier (1) - Install - Instrument Panel Carrier Replacement (without Head Up Display) , or Instrument Panel Carrier Replacement (with Head Up Display)

  34. GM5420344Courtesy of GENERAL MOTORS COMPANY

    Install the windshield wiper system module (2) in the vehicle.

  35. Windshield Wiper System Module Bolt (1) - Install and tighten [2x] - Fastener Specifications
  36. Connect the windshield wiper motor electrical connector.
  37. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
  38. GM5420286Courtesy of GENERAL MOTORS COMPANY

    Windshield Wiper System Module Shield (1) - Install

  39. GM5417442Courtesy of GENERAL MOTORS COMPANY

    Install the air inlet grille panel (2) between both hood hinges.

  40. Air Inlet Grille Panel (2) - Install
  41. Connect the windshield washer nozzle hose to the windshield washer pump hose.
  42. Air Inlet Grille Panel Retainer (1) - Install [6x]
  43. GM5421986Courtesy of GENERAL MOTORS COMPANY

    Hood Rear Outer Air Inlet Seal (2) - Install [2x]

  44. Hood Rear Outer Air Inlet Seal Retainer (1) - Install [4x]
  45. GM5417116Courtesy of GENERAL MOTORS COMPANY

    Air Inlet Grille Panel Extension (1) - Install [2x]

  46. Remove the masking tape from the top edge of the service part.
  47. Using a 50/50 mixture of isopropyl alcohol and clean drinkable water with a clean towel, remove any left over adhesive residue from the masking tape.
  48. GM5487924Courtesy of GENERAL MOTORS COMPANY

    Align the windshield wipers (1) to their respective alignment circles (2) on the windshield.

  49. GM5325063Courtesy of GENERAL MOTORS COMPANY

    Position the windshield wiper arms (3) onto the windshield wiper transmission pivot shafts.

  50. Windshield Wiper Arm Nut (2) - Install and tighten [2x] - Fastener Specifications
  51. Lubricate the windshield with clean washer fluid.
  52. Run the windshield wipers for two complete cycles then turn off the windshield wipers.
  53. Ensure the windshield wipers are in the full park position.
  54. Inspect the windshield wipers for proper position to the alignment circles on the windshield.
  55. If alignment is required, remove the windshield wiper arms and repeat steps 47 through 54 to achieve the proper windshield wiper (3) alignment.
  56. Windshield Wiper Arm Finish Cap (1) - Install [2x]
