Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

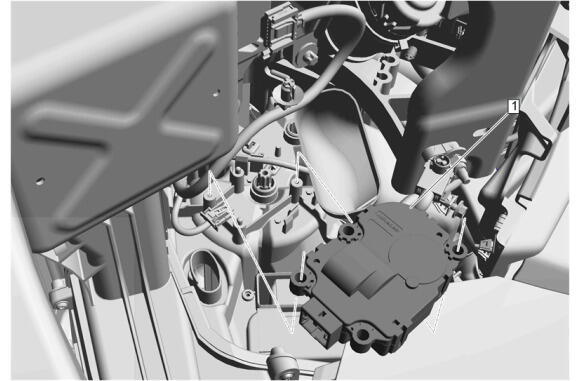

  1. GM5325621Courtesy of GENERAL MOTORS COMPANY

    Programmable Temperature Valve Actuator- Left Side (1) - Install

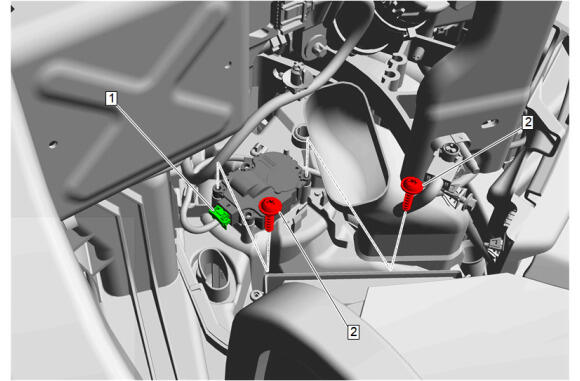

  2. GM5325619Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Heater and Air Conditioning Evaporator and Blower Upper and Blow Lower Case Bolt (2) - Install and tighten [2x] - Fastener Specifications

  3. Connect the electrical connector. (1)
  4. Connect the instrument panel compartment air duct at the air conditioning evaporator and blower case.
  5. GM5325852Courtesy of GENERAL MOTORS COMPANY

    Floor Front Air Outlet Duct - Left Side- Outer (2) - Install

  6. Floor Front Air Outlet Duct Bolt (1) - Install and tighten - Fastener Specifications
  7. Connect the electrical connectors to the instrument panel knee bolster switches, and position the harness back to its original position.
  8. GM5446428Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Knee Bolster (1) - Install

  9. GM5446424Courtesy of GENERAL MOTORS COMPANY

    Data Link Connector Bolt (1) - Install and tighten [2x] - Fastener Specifications

  10. Instrument Panel Knee Bolster Bolt (2) - Install and tighten [3x] - Fastener Specifications
  11. GM5433957Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector to the Instrument panel center trim pad (1) and install.

  12. Return the steering column to its original position.
  13. GM5310879Courtesy of GENERAL MOTORS COMPANY

    Front Floor Courtesy Lamp - Connect

  14. Instrument Panel Lower Trim Panel Insulator - Left Side (1) - Install
  15. GM5310878Courtesy of GENERAL MOTORS COMPANY

    Install the tabs into the instrument panel lower trim panel insulator (1).

  16. GM5310877Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Insulator Nut (3) - Install and tighten [2x] - Fastener Specifications

  17. Instrument Panel Insulator Bolt (2) - Install and tighten [2x] - Fastener Specifications
  18. Instrument Panel Lower Trim Panel Insulator Retainer (1) - Install
  19. GM5300282Courtesy of GENERAL MOTORS COMPANY

    Slide the hood primary latch release cable handle (1) onto the instrument panel lower trim panel insulator to install.

  20. GM5453687Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  21. Instrument Panel Lower Airbag - Driver Side (2) - Install
  22. Instrument Panel Lower Airbag Nut (1) - Install and tighten [2x] - Fastener Specifications
  23. GM5421735Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Outer Trim Cover - Left Side (1) - Install

  24. Enable the SIR System. SIR Disabling and Enabling
