Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
- Disable the SIR system. SIR Disabling and Enabling
Instrument Panel Lower Airbag Nut (1) - Remove [2x]
- Instrument Panel Lower Airbag - Passenger Side (2) - Remove
- Disconnect the electrical connector.
Body Control Module Bracket Bolt (1) - Remove
- Unlock and lower the body control module bracket (2) from the instrument panel lower trim panel insulator.
Instrument Panel Insulator Bolt (1) - Remove [4x]
Release the detent (2) from the instrument panel lower trim panel insulator.
- Detach the wiring harness clips (1) from the body control module bracket.
- Disconnect the body control module connectors (3).
- Body Control Module (4) - Remove
Instrument Panel Lower Trim Panel Insulator - Right Side (1) - Remove
Using a flat bladed plastic trim tool, start at the front of the right-side instrument panel outer trim cover (1), and work your way back releasing the retaining clips to remove the cover.
- Disconnect electrical connections, if applicable.
Instrument Panel Compartment Bolt (1) - Remove [5x]
Instrument Panel Compartment (1) - Remove
- Disconnect the electrical connector.

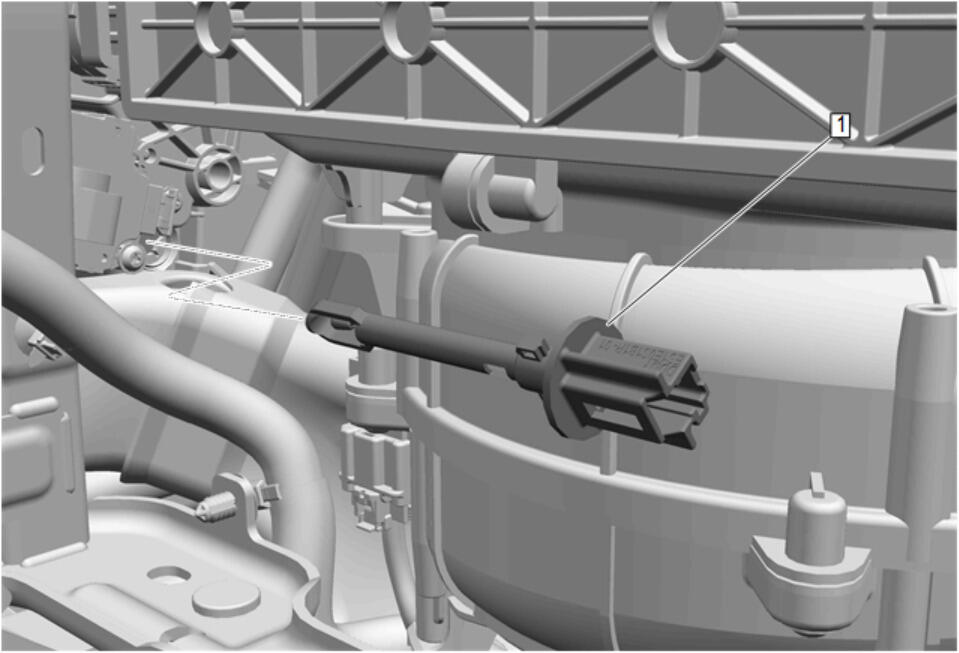

Air Conditioning Evaporator Air Temperature Sensor (1) - Remove
- Disconnect the electrical connector.
