Installation Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

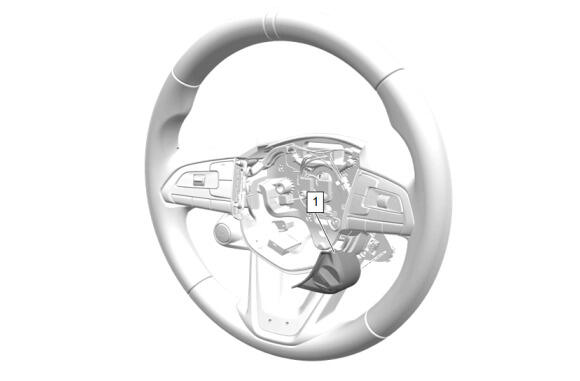

Drive Mode Selector Auxiliary Switch (1) - Install

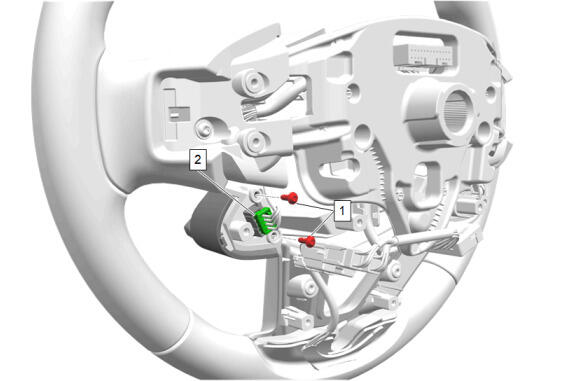

Connect the electrical connector. (2)
- Steering Wheel Bolt (1) @ Drive Mode Selector Auxiliary Switch - Install and tighten [2x] - Fastener Specifications
Steering Wheel Shroud (1) - Install [3x]
- Connect the electrical connectors.
Steering Wheel Bolt (2) - Install and tighten [6x] - Fastener Specifications
- Steering Wheel Bolt (1) - Install and tighten [4x] - Fastener Specifications
Steering Wheel (2) - Install
- If a NEW threaded component is being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded component is reused, prepare the threaded component using the following steps:
- Remove any loose cured adhesive from the external threads of the component using a lint free cloth.
- Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive.
- Remove loose debris from internal and external threads using compressed air.
- Apply liquid thread locking adhesive in a strip along half of the length of the external threads, starting at the tip, just prior to installation. Adhesives, Fluids, Lubricants, and Sealers
- Steering Wheel Bolt (1) - Install and tighten - Fastener Specifications
Connect the electrical connectors.
- Install any connector position assurance (CPA) devices or secondary locks.
- Steering Wheel Airbag (2) - Install
- Steering Wheel Airbag Bolt (1) - Install and tighten [2x] - Fastener Specifications
Install the 2 steering wheel airbag access hole covers (1).
- Enable the SIR System. SIR Disabling and Enabling
CAUTION:
