Powertrain Mount Balancing (AWD)

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

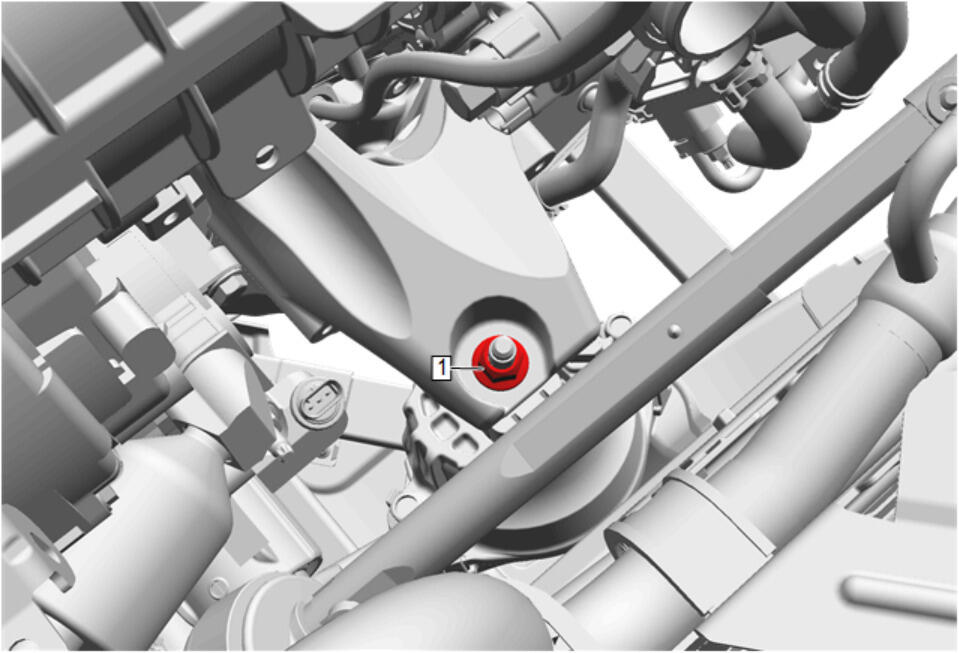

  1. GM5333388

    Engine Mount Nut (1) - Loosen

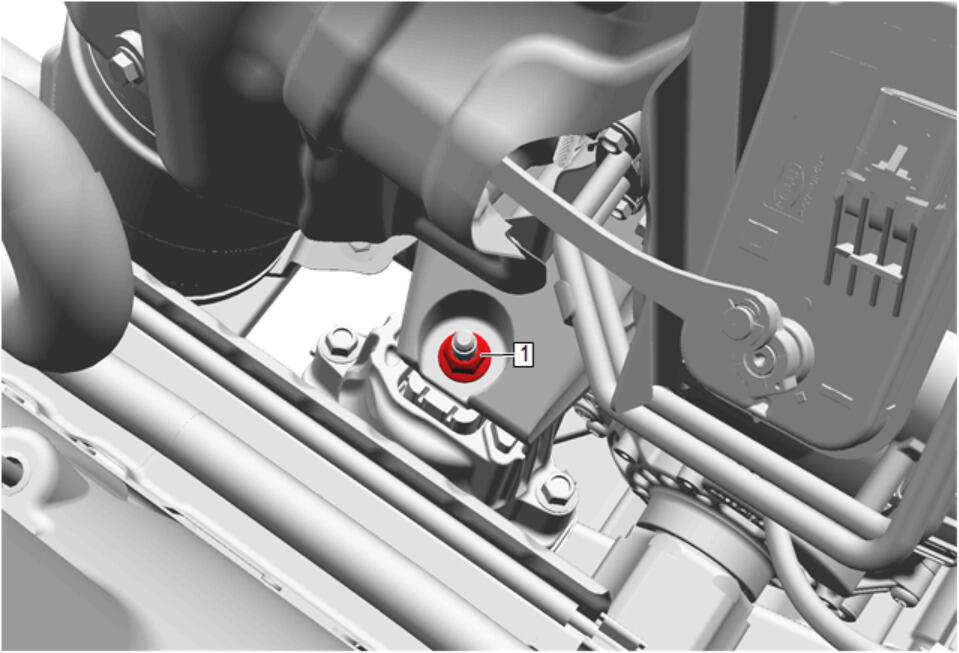

  2. GM5333415

    Engine Mount Nut (1) - Loosen

  3. GM5336524

    Transmission Mount Bracket Bolt (1) - Loosen [4x]

  4. Transmission Mount Bracket Bolt (2) - Loosen
  5. Shake the powertrain vigorously from front to rear and allow the powertrain to settle.
  6. GM5336524

    Transmission Mount Bracket Bolt (2) - Tighten - Fastener Specifications

  7. Transmission Mount Bracket Bolt (1) - Tighten [4x] - Fastener Specifications
  8. GM5333415

    Engine Mount Nut (1) - Tighten - Fastener Specifications

  9. GM5333388

    Engine Mount Nut (1) - Tighten - Fastener Specifications
