Installation Procedure
- Ensure the phenolic spacer remains in place.

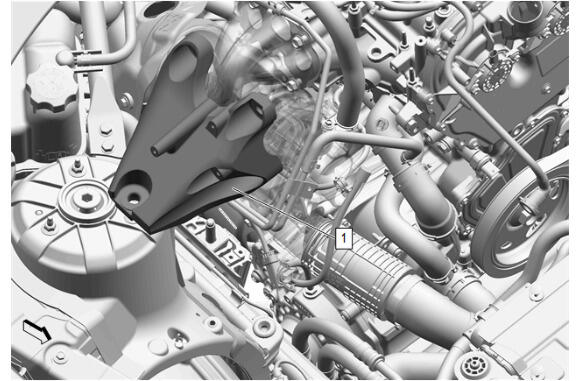

Engine Mount Bracket (1) - Install
- Install harness retainer.
- CAUTION:
Refer to Torque-to-Yield Fastener Caution .

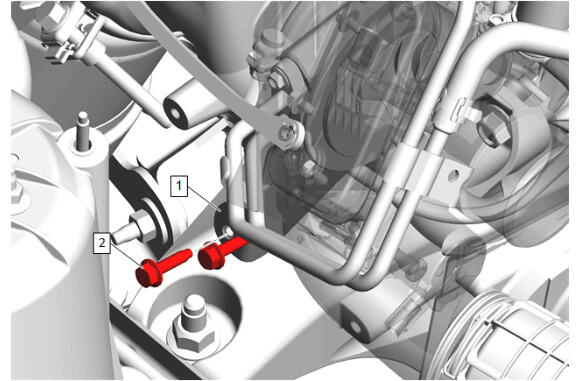

Engine Mount Bracket Bolt (1) - Install NEW and tighten [4x] - Fastener Specifications
Water Pump Cover (2) - Install
- Water Pump Cover Bolt (1) - Install and tighten [2x] - Fastener Specifications
- CAUTION:
Refer to Fastener Caution .
Engine Mount Nut (1) - Install and tighten - Fastener Specifications
Charge Air Cooler Inlet Air Tube (2) @ Compressor Air Intake Turbocharger (3) - Reposition
- Retainer Spring (1) - Install
- Install harness retainer.
Turbocharger Heat Shield (1) - Install
Turbocharger Heat Shield Bolt (1) - Install and tighten [3x] - Fastener Specifications
Install the air cleaner (1) and air cleaner outlet duct (2) as an assembly.
Air Cleaner Outlet Duct Clamp (2) - Tighten - Fastener Specifications
- Air Cleaner Bolt (1) - Install and tighten - Fastener Specifications
Electrical Connector (4) - Connect [2x]
- Evaporative Emission Canister Purge Tube (3) - Connect - Plastic Collar Quick Connect Fitting Service
- Positive Crankcase Ventilation Tube (2) - Connect - Plastic Collar Quick Connect Fitting Service
- Wiring Harness Retainer (1) @ Air Cleaner Assembly - Install [4x]
- Connect the battery. Battery Negative Cable Disconnection and Connection
Phenolic spacer must be present to prevent galvanic/corrosive reaction and/or excessive temperature conduction between engine mount bracket and engine mount. Replace mount if phenolic spacer is missing or damaged. Failure to ensure phenolic spacer is intact and not damaged can lead to premature failure of engine mount and/or engine mount bracket.
