Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Refer to Glass and Sheet Metal Handling Warning .

Open the sunroof sunshade.
Courtesy of GENERAL MOTORS COMPANY

Sunroof Air Deflector Cover- Left Side (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Sunroof Air Deflector Cover- Right Side (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Sunroof Window Bolt (1) - Remove [4x]
Sunroof Window (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Observe the mounting and location of the sunroof window seal to ensure proper reinstallation.

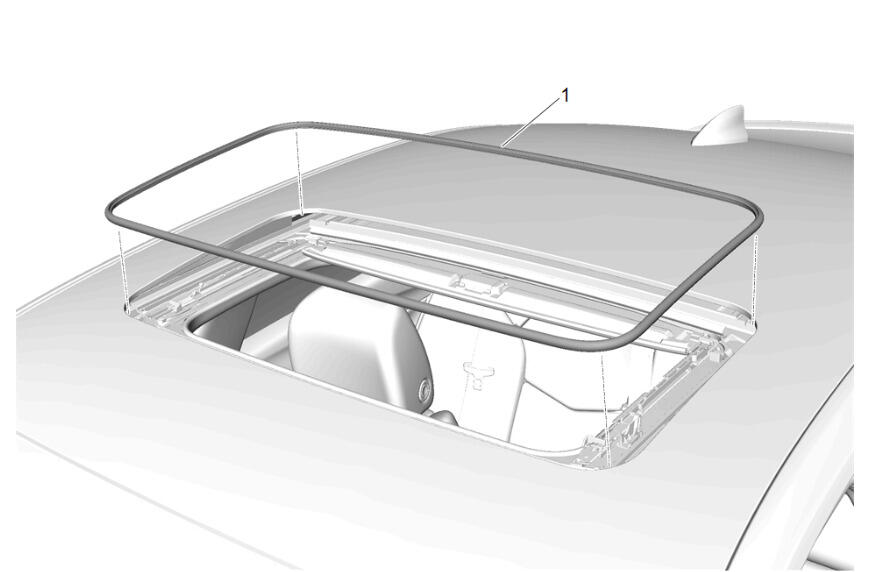

Starting at one end of the sunroof window seal (1), pull up and away from the frame.
Sunroof Window Seal (1) - Remove
Clean the mounting area using a lint-free cloth dampened with a 50/50 mixture of isopropyl alcohol and water.
