Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:

Refer to Glass and Sheet Metal Handling Warning .

  1. Open the sunroof sunshade.

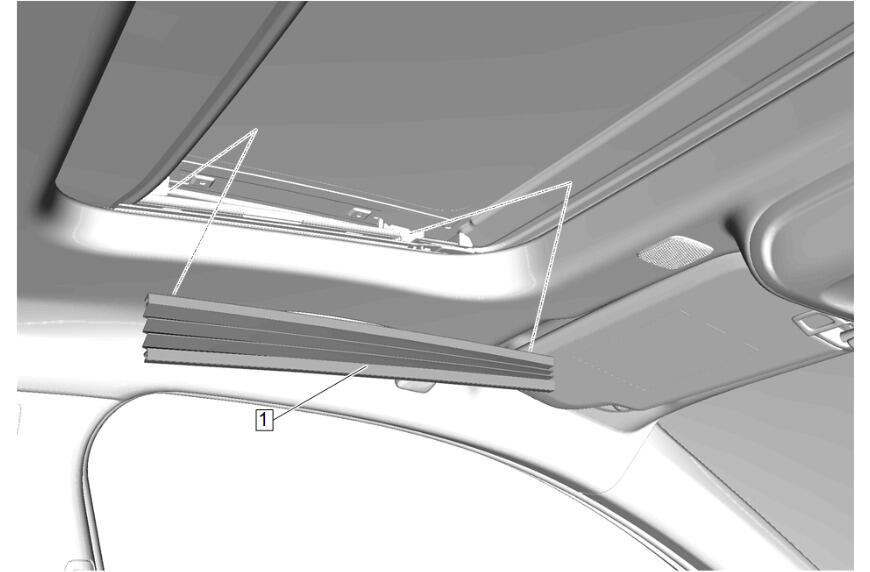

  2. GM5461936Courtesy of GENERAL MOTORS COMPANY

    Sunroof Air Deflector Cover- Left Side (1) - Remove

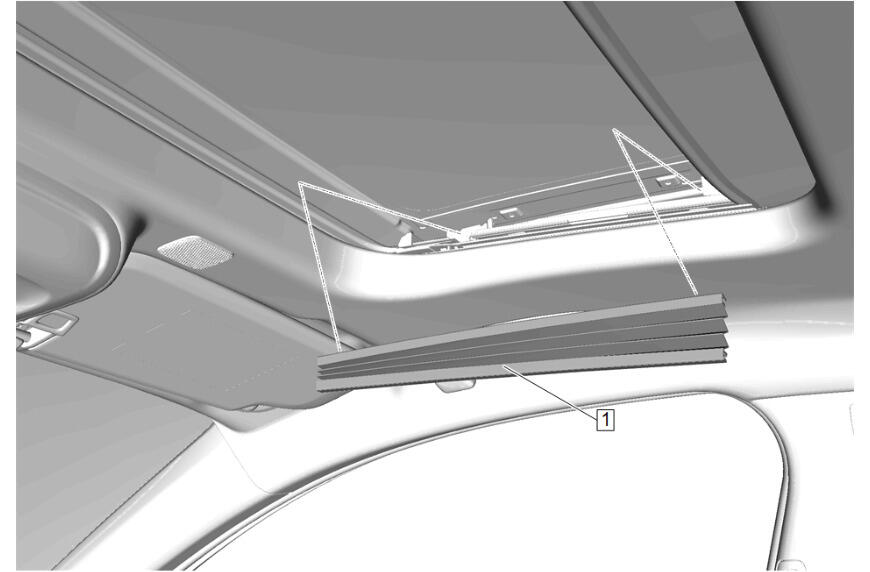

  3. GM5461937Courtesy of GENERAL MOTORS COMPANY

    Sunroof Air Deflector Cover- Right Side (1) - Remove

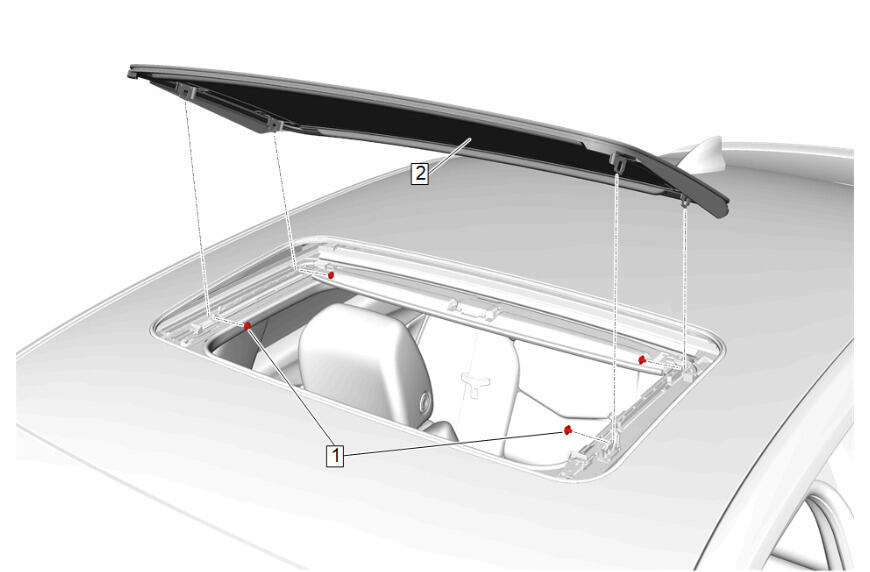

  4. GM5461938Courtesy of GENERAL MOTORS COMPANY

    Sunroof Window Bolt (1) - Remove [4x]

  5. Sunroof Window (2) - Remove
