Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

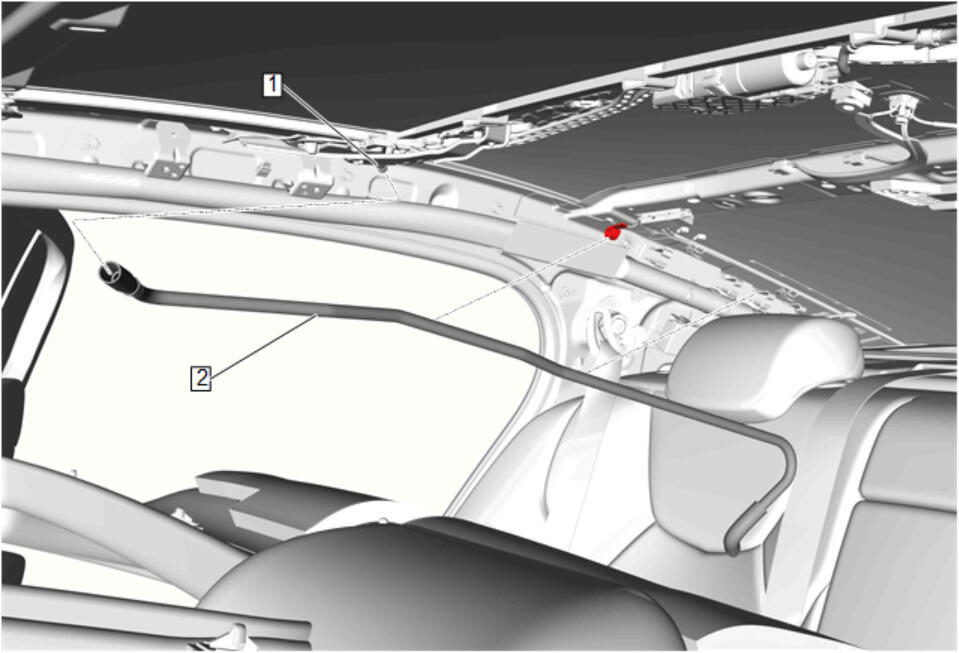

  1. GM5331760Courtesy of GENERAL MOTORS COMPANY

    Sunroof Housing Rear Drain Hose (2) - Install

  2. Sunroof Housing Rear Drain Hose (2) @ Sunroof Housing Drain Gutter (1) - Connect

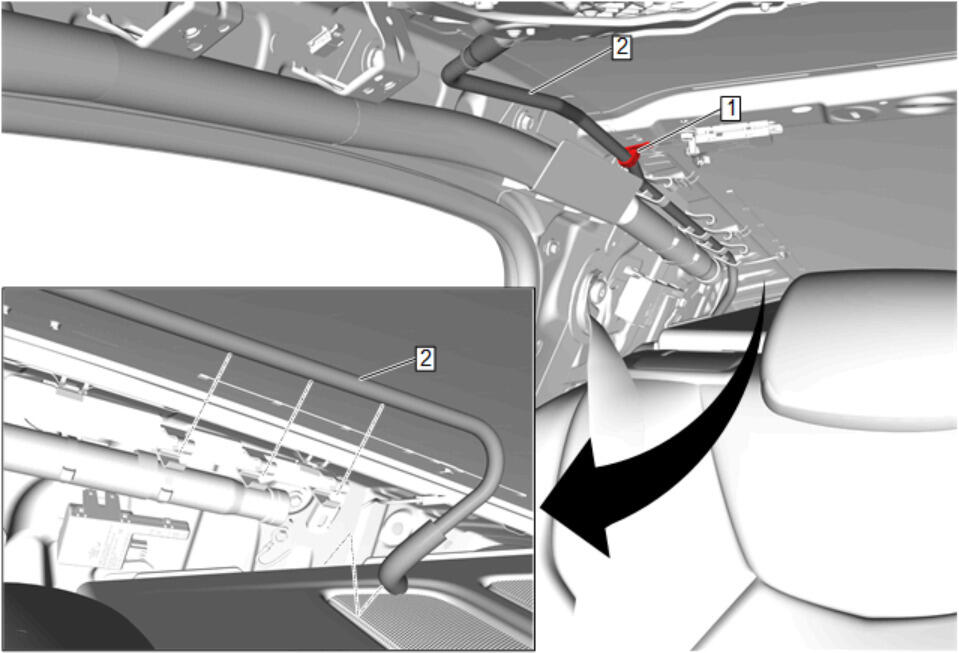

  3. GM5331759Courtesy of GENERAL MOTORS COMPANY

    Secure the sunroof housing rear drain hose clip (1).

  4. Secure the wiring harness in place.

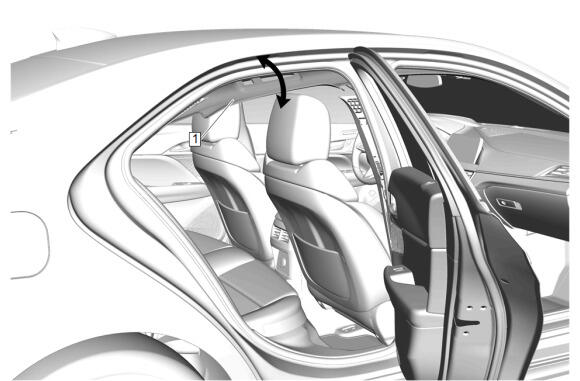

  5. GM5494599Courtesy of GENERAL MOTORS COMPANY

    Install the headlining trim panel (1).

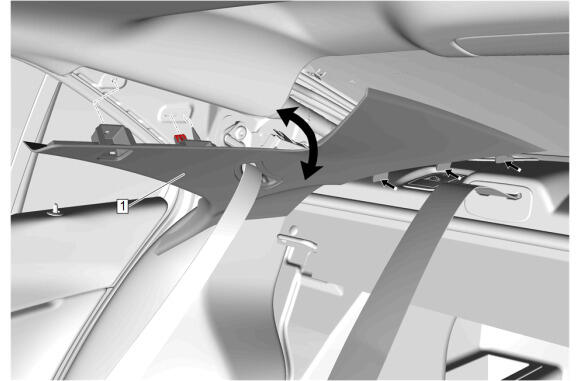

  6. GM5494598Courtesy of GENERAL MOTORS COMPANY

    Quarter Upper Trim Panel (1) - Install

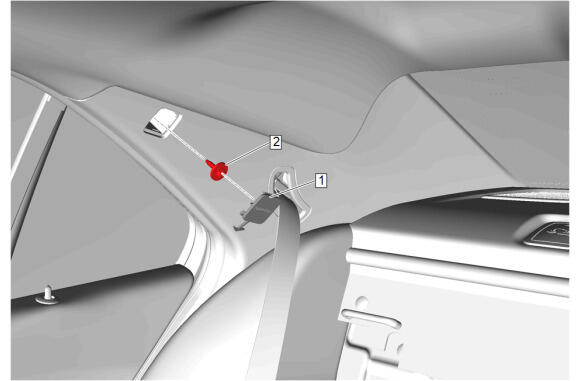

  7. GM5494597Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Quarter Window Trim Finish Panel Bolt (2) Install and tighten - Fastener Specifications

  8. Quarter Window Trim Finish Panel Bolt Cap (1) - Install

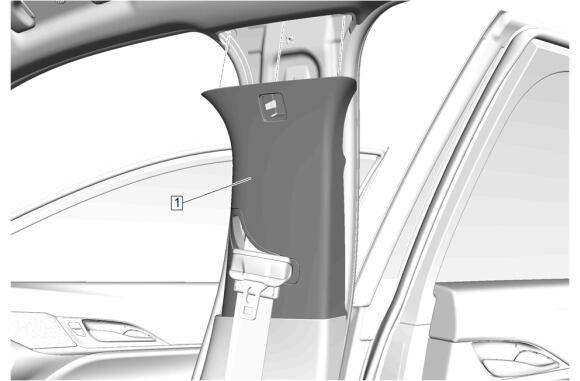

  9. GM5494592Courtesy of GENERAL MOTORS COMPANY

    Center Pillar Upper Trim Panel (1) - Install

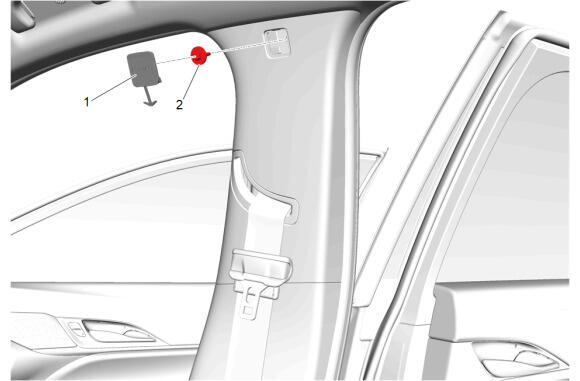

  10. GM5494591Courtesy of GENERAL MOTORS COMPANY

    Center Pillar Upper Garnish Molding Bolt (2) - Install and tighten - Fastener Specifications

  11. Center Pillar Upper Trim Panel Bolt Cap (1) - Install

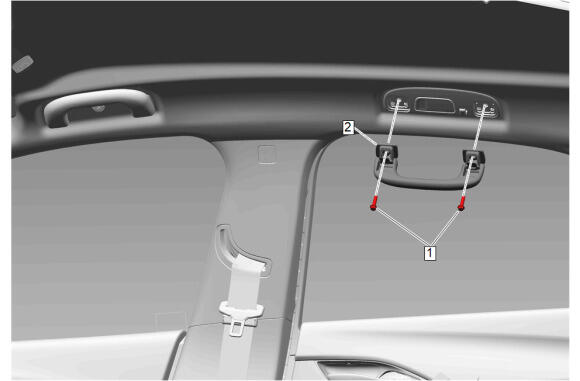

  12. GM5494589Courtesy of GENERAL MOTORS COMPANY

    Roof Rail Rear Assist Handle (2) - Install

  13. Roof Rail Rear Assist Handle Bolt (1) - Install and tighten [2x] - Fastener Specifications

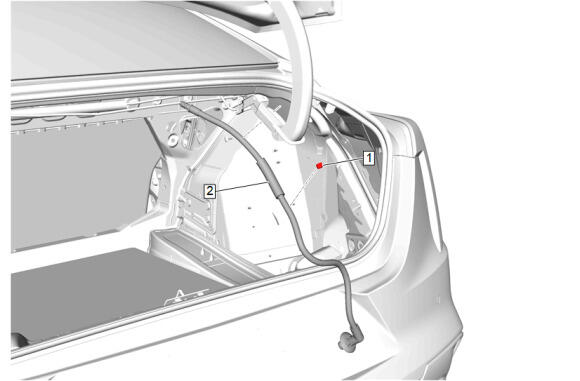

  14. GM5494600Courtesy of GENERAL MOTORS COMPANY

    Sunroof Housing Rear Drain Hose (2) @ Quarter Inner Panel Extension - Connect

  15. Secure the 2 sunroof housing rear drain hose clips (1).
  16. Water test and inspect sunroof for proper operation.
  17. GM5470126Courtesy of GENERAL MOTORS COMPANY

    Rear Compartment Side Trim-Right Side (2) - Install

  18. Rear Compartment Side Trim Insulator Retainer (1) - Install [4x]
  19. GM5471885Courtesy of GENERAL MOTORS COMPANY

    Rear Compartment Floor Panel Trim (2) - Install

  20. Rear Compartment Floor Stowage Compartment Retainer (1) - Install [3x]
  21. GM5465255Courtesy of GENERAL MOTORS COMPANY

    Rear End Trim Finish Panel (1) - Install

  22. GM5459293Courtesy of GENERAL MOTORS COMPANY

    Rear End Trim Finish Panel Opening Cover (1) - Install

  23. GM5471799Courtesy of GENERAL MOTORS COMPANY

    Rear Compartment Floor Panel Trim (1) - Install

  24. GM5459270Courtesy of GENERAL MOTORS COMPANY

    Cargo Tie Down Loop (3) - Install [2x]

  25. Cargo Tie Down Loop Bolt (2) - Install and tighten [2x] - Fastener Specifications
  26. Cargo Tie Down Loop Bolt Cap (1) - Install [2x]
  27. Enable the SIR System. SIR Disabling and Enabling
