Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

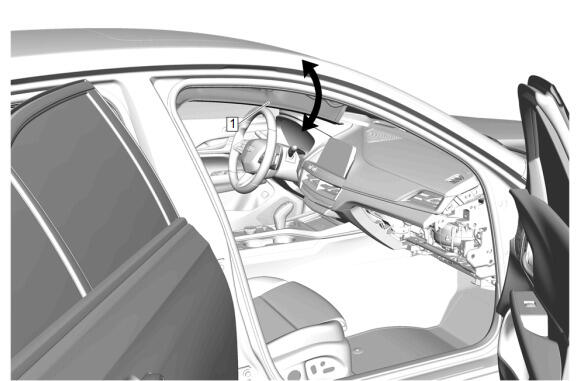

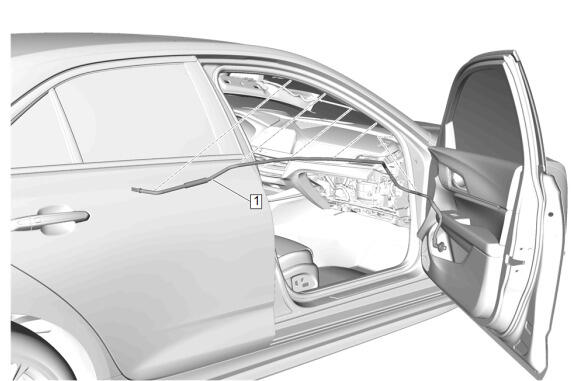

Sunroof Housing Front Drain Hose (1) - Install
Courtesy of GENERAL MOTORS COMPANY

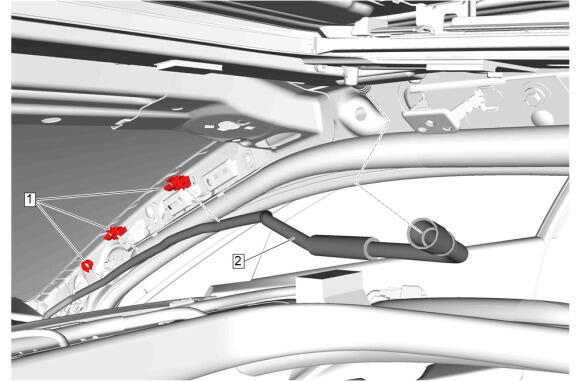

Sunroof Housing Front Drain Hose (2) @ Sunroof Housing Drain Gutter - Connect
Secure the 3 sunroof housing front drain hose clips (1).
Secure the wiring harness.
Courtesy of GENERAL MOTORS COMPANY

Install the headlining trim panel (1).
Courtesy of GENERAL MOTORS COMPANY

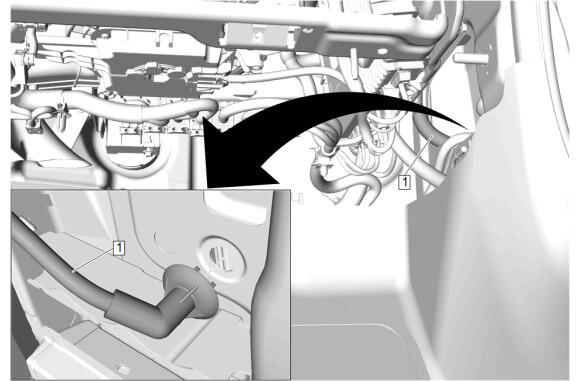

Sunroof Housing Front Drain Hose (2) @ Body Hinge Pillar Outer Panel - Connect
Secure the sunroof housing front drain hose clip (1).
Secure the body hinge pillar sound barrier.
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connectors.
Instrument Panel Compartment (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

Instrument Panel Compartment Bolt (1) - Install and tighten [5x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connector.
Instrument Panel Lower Airbag - Passenger Side (2) - Install
Instrument Panel Lower Airbag Nut (1) - Install and tighten [2x] - Fastener Specifications
Connect the electrical connectors.
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Lower Trim Panel Insulator (1) - Install
Install the tab into the instrument panel lower trim panel insulator (1).
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Insulator Bolt (2) - Install and tighten [4x] - Fastener Specifications
Connect and position the wiring harness.
Courtesy of GENERAL MOTORS COMPANY

Close and lock the body control module bracket (2) into the instrument panel lower trim panel insulator.
Body Control Module Bracket Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Outer Trim Cover - Right Side (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connector.
Install the retainer that attaches the sunshade to the headliner.

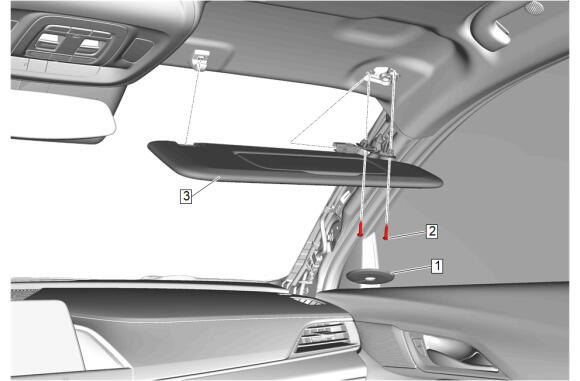

Sunshade (3) - Install
Sunshade Bolt (2) - Install and tighten [2x] - Fastener Specifications
Sunshade Retainer Bolt Cover (1) - Install
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

Center Pillar Upper Trim Panel (1) - Install
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

Center Pillar Upper Garnish Molding Bolt (2) - Install and tighten - Fastener Specifications
Center Pillar Upper Trim Panel Bolt Cap (1) - Install
Courtesy of GENERAL MOTORS COMPANY

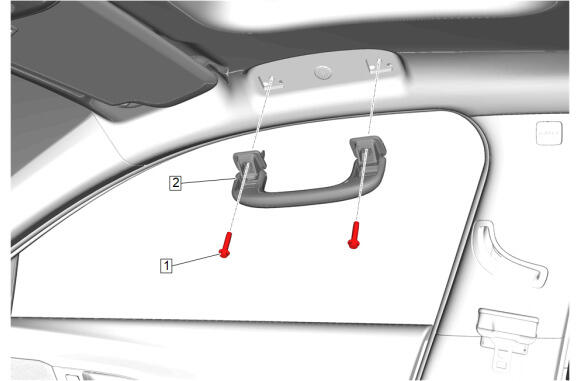

Roof Rail Assist Handle (2) - Install
Roof Rail Assist Handle Bolt (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Install the windshield multifunction sensor mount bracket cover (1) ensuring the retaining tabs are fully seated.
Courtesy of GENERAL MOTORS COMPANY

Windshield Multifunction Sensor Mount Bracket Cover Insert (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connector.
Install the roof console (1) and front roof console tab into the headliner.
Courtesy of GENERAL MOTORS COMPANY

Push up both sides of the roof console (1) along the retaining clips to install.
Courtesy of GENERAL MOTORS COMPANY

Sunshade Support Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connector.
Windshield Garnish Molding Bolt (2) - Install and tighten - Fastener Specifications

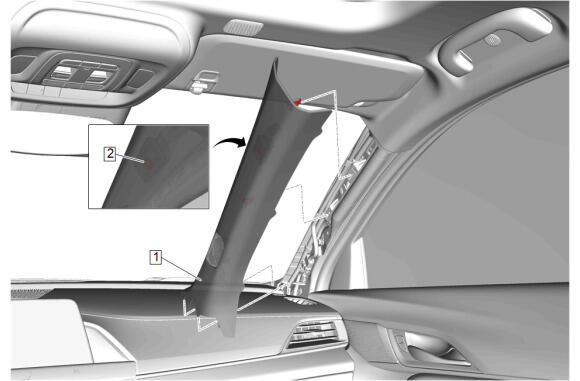

Align the retainer clips with the slots in the A pillar and press the windshield garnish molding (1) into place.
Windshield Garnish Molding (1) - Install
Enable the SIR System. SIR Disabling and Enabling .
Water test and inspect sunroof for proper operation.
