Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Refer to Glass and Sheet Metal Handling Warning .

Open the sunroof sunshade.
Courtesy of GENERAL MOTORS COMPANY

Sunroof Air Deflector Cover- Left Side (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Sunroof Air Deflector Cover- Right Side (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Sunroof Window Bolt (1) - Remove [4x]
Sunroof Window (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

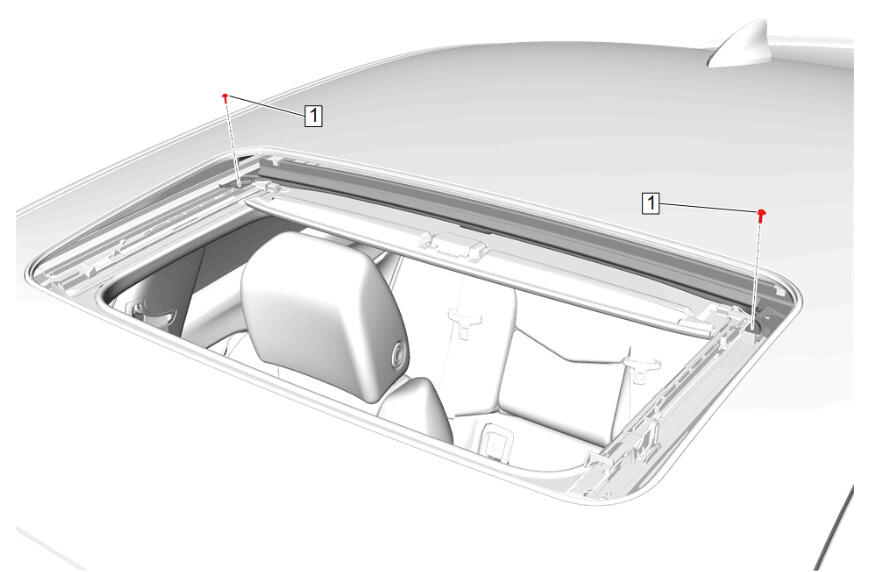

Sunroof Housing Drain Gutter Channel Screw (1) - Remove [2x]
Courtesy of GENERAL MOTORS COMPANY

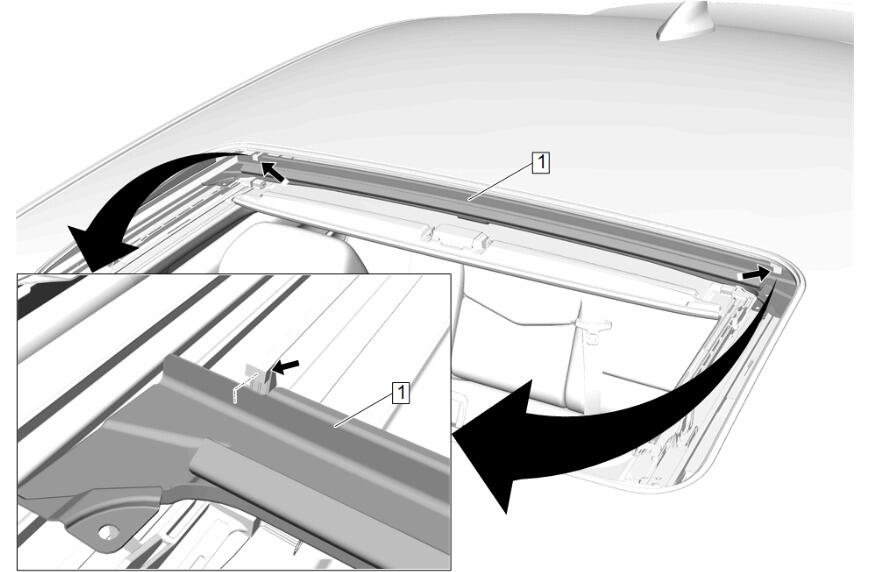

Release the retaining tabs at each end of the sunroof housing drain gutter (1).
Courtesy of GENERAL MOTORS COMPANY

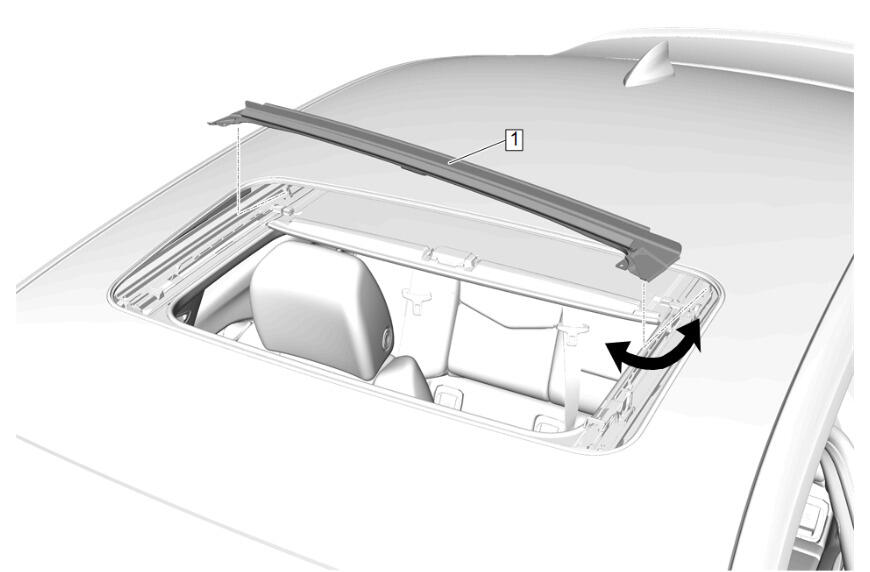

Sunroof Housing Drain Gutter (1) - Remove
