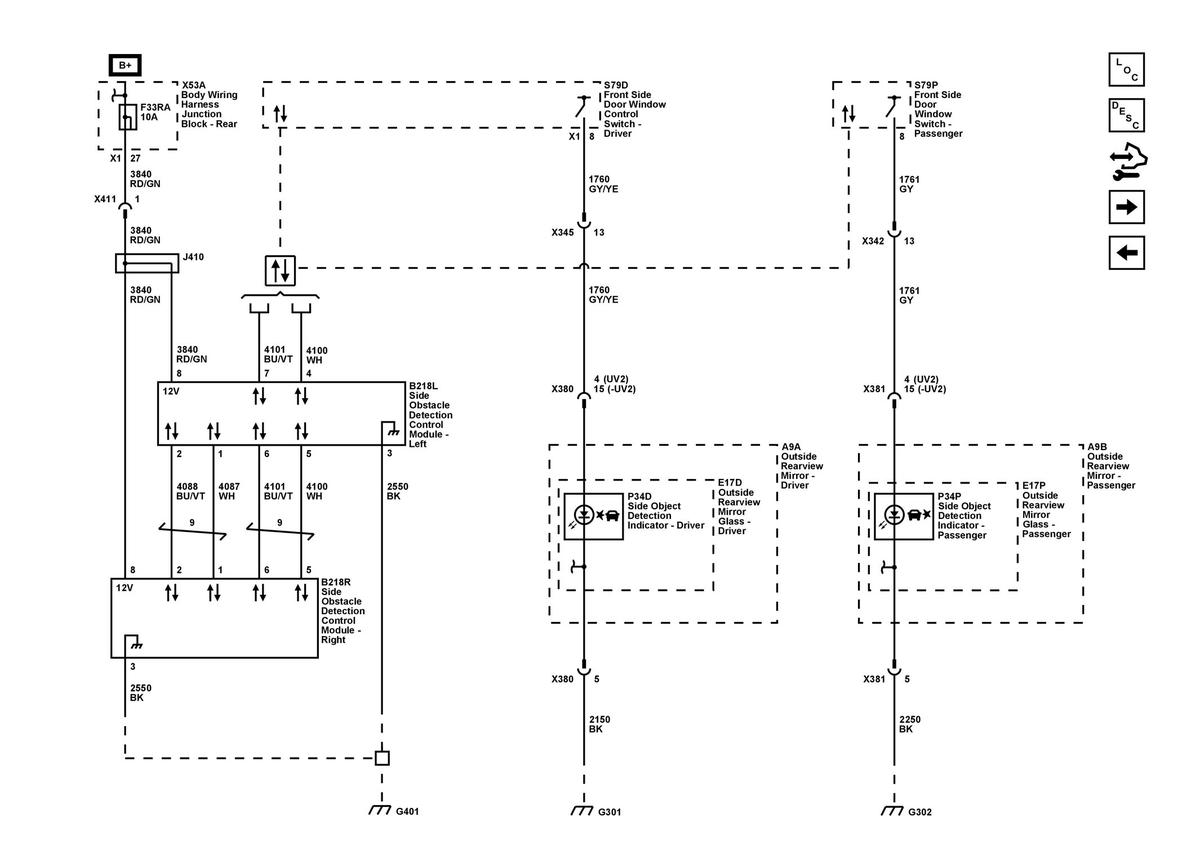

Rear Cross Traffic Alert (UFG) and Side Object Detection

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
GM5751058Courtesy of GENERAL MOTORS COMPANY
