Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
Rear Bumper Fascia (1) - Remove - Rear Bumper Fascia Removal and Installation (without Blackwing) , or Rear Bumper Fascia Removal and Installation (with Blackwing)
Disconnect the electrical connector from the low frequency rear bumper antenna.
- Disconnect the rear parking sensor electrical connector
- Rear Bumper Fascia Energy Absorber Clip (1) - Remove [4x]
- Rear Bumper Fascia Energy Absorber Bolt (2) - Remove [2x]
- Reposition the electrical wiring harness.
- Rear Bumper Energy Absorber (3) - Remove

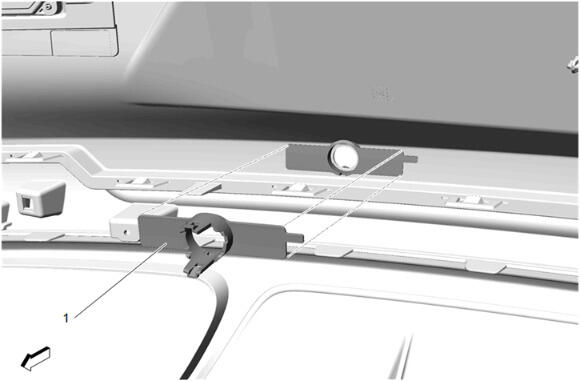

Lift the locking tabs on the housing and remove the parking assist alarm sensor (1).
- Disconnect the electrical connector.

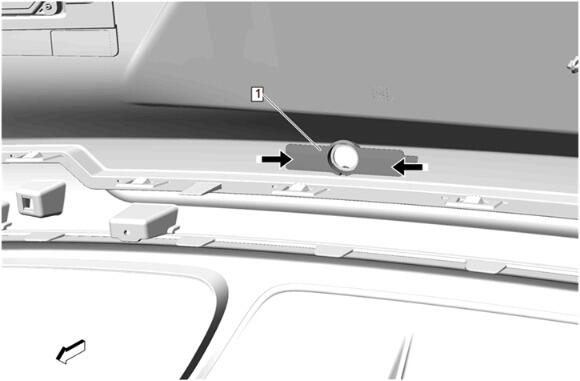

Using a flat bladed tool, carefully remove the bracket (1) from the fascia.
- NOTE:
Do Not sand off alignment tabs / outline.
Sand sonic weld plastic residue (1) from the fascia.
