Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Front Bumper Fascia (1) - Remove - Front Bumper Fascia Removal and Installation (without Blackwing) , or Front Bumper Fascia Removal and Installation (with Blackwing) , or Front Bumper Fascia Removal and Installation (with Blackwing CFV, CFZ)
Reposition the wiring harness.
Courtesy of GENERAL MOTORS COMPANY

Release the retainer tabs on the front bumper fascia and pull the energy absorber (1) from the front bumper fascia.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
The object sensor is a one piece design. Do NOT twist the sensor cap to try and remove the painted cap. Replacement sensor requires painting to match fascia/bumper body color.

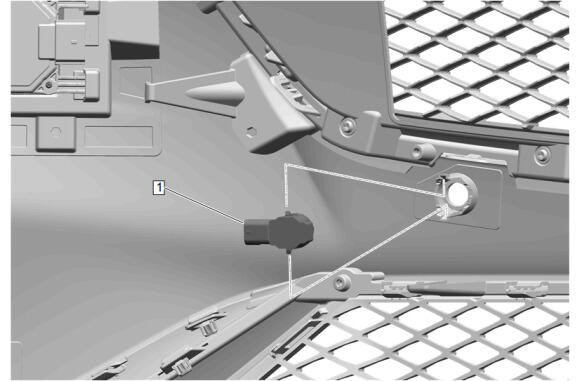

Lift the locking tabs on the housing and remove the sensor (1).
Disconnect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
If the sensor ring has any type of damage it must be replaced.

Pull the parking assist alarm sensor ring (1) from the sensor.
