Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Front Bumper Fascia (1) - Remove - Front Bumper Fascia Removal and Installation (without Blackwing) , or Front Bumper Fascia Removal and Installation (with Blackwing) , or Front Bumper Fascia Removal and Installation (with Blackwing CFV, CFZ)
Reposition the wiring harness.
Courtesy of GENERAL MOTORS COMPANY

Release the retainer tabs on the front bumper fascia and pull the energy absorber (1) from the front bumper fascia.
Courtesy of GENERAL MOTORS COMPANY

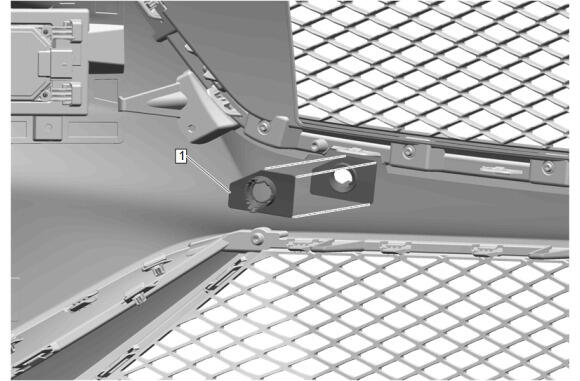

Lift the locking tabs on the housing and remove the parking assist alarm sensor (1).
Disconnect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

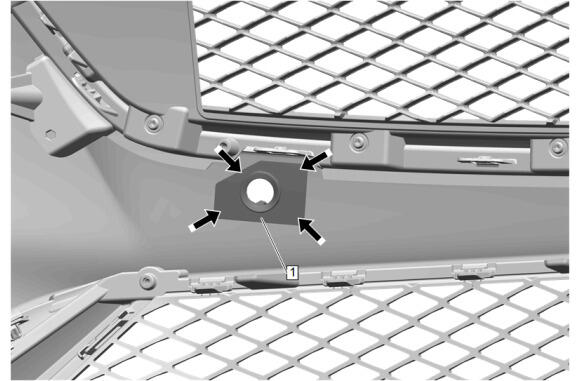

Using a flat bladed tool, carefully remove the bracket (1) from the fascia.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Do Not sand off alignment tabs / outline.

Sand sonic weld plastic residue (1) from the fascia.
