Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
With the aid of an assistant, remove the fascia. (1) - Front Bumper Fascia Removal and Installation (without Blackwing) , or Front Bumper Fascia Removal and Installation (with Blackwing) , or Front Bumper Fascia Removal and Installation (with Blackwing CFV, CFZ)
- NOTE:
The object sensor is a one piece design. Do NOT twist the sensor cap to try and remove the painted cap. Replacement sensor requires painting to match fascia/bumper body color.

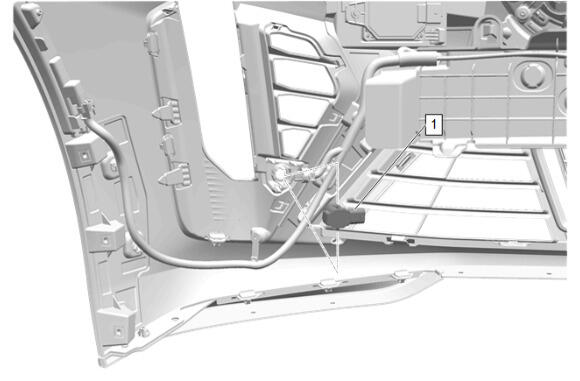

- Lift the locking tabs on the housing and remove the sensor (1).
- Disconnect the electrical connector.

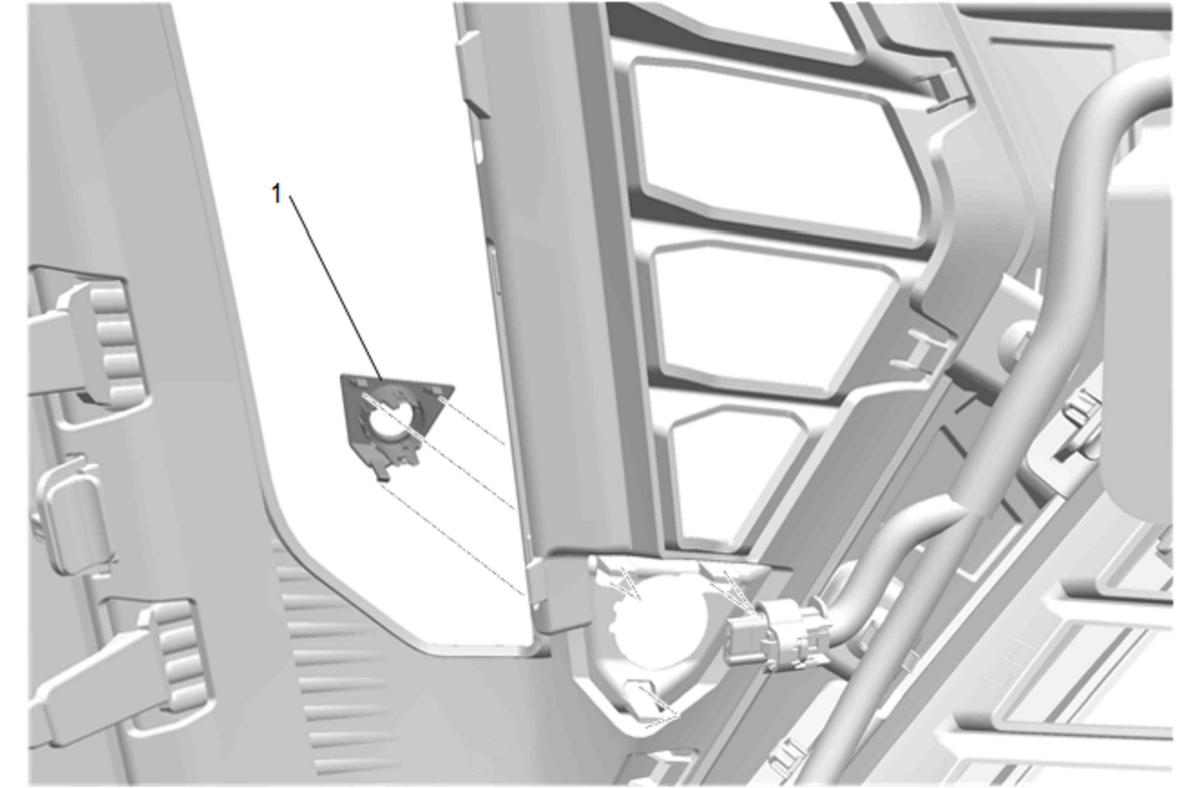

Release the 3 retainer tabs and remove the front parking assist alarm sensor bracket (1).
