Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

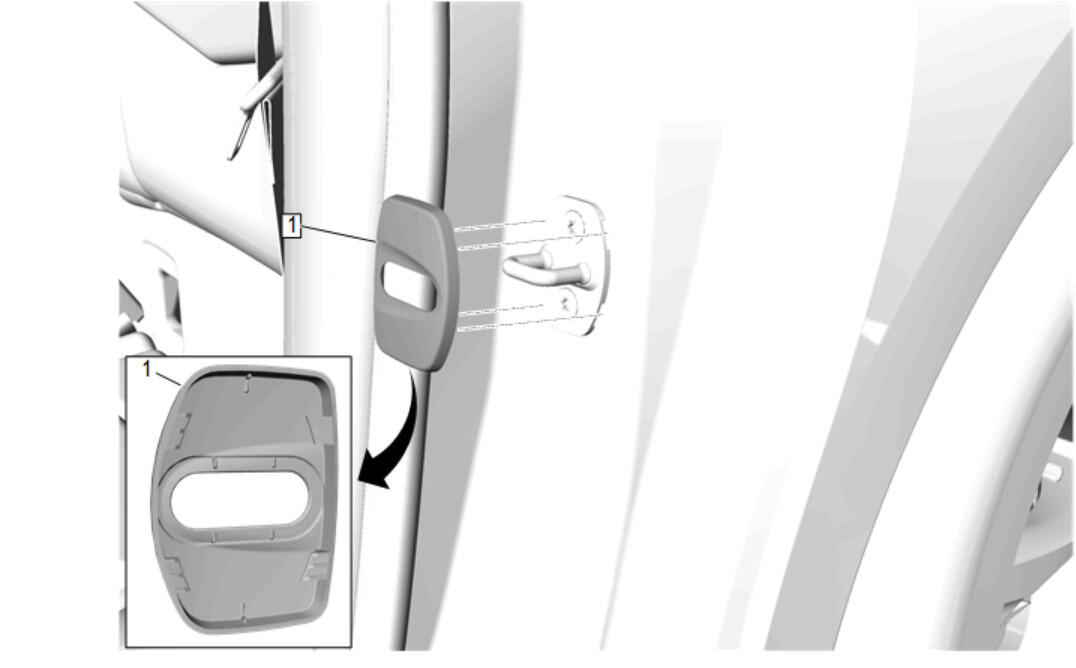

  1. GM5320024Courtesy of GENERAL MOTORS COMPANY

    Rear Side Door Latch Striker Cover (1) - Install

  2. Insert the inboard rear side door latch striker cover retaining tabs into the rear side door latch striker.
  3. Press the outboard rear side door latch striker cover retaining tabs into place, ensuring the rear side door latch striker cover (1) is fully seated.
