Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
Using a suitable plastic trim tool, release the retaining tabs from the outboard edge of the front side door latch striker cover (1).
- Front Side Door Latch Striker Cover (1) - Remove

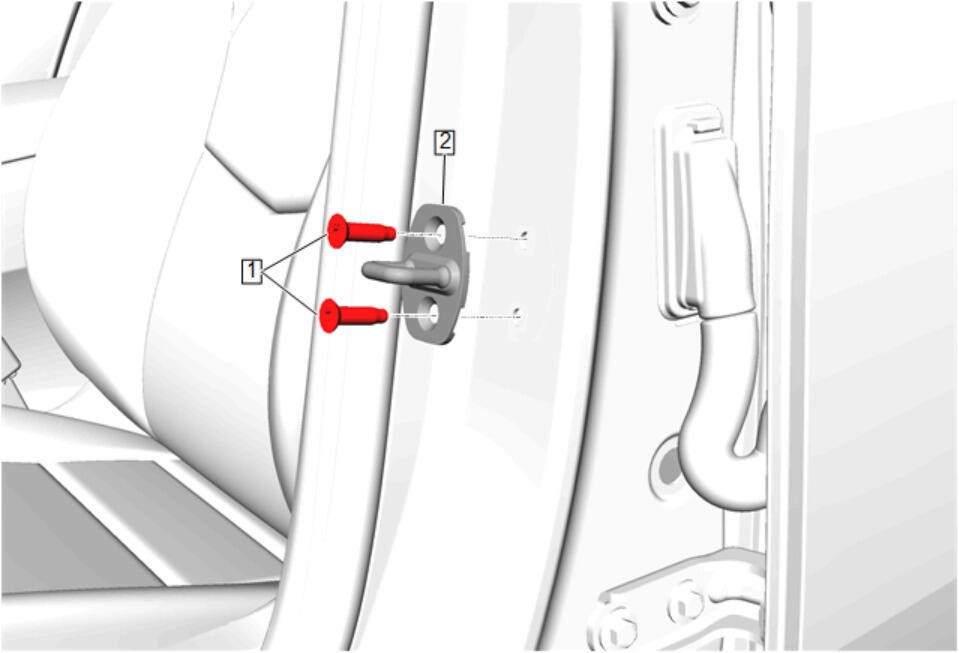

Use a grease pencil to mark the location of the front side door latch striker (2).
- Front Side Door Latch Striker Bolt (1) - Remove [2x]
- Front Side Door Latch Striker (2) - Remove
