Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

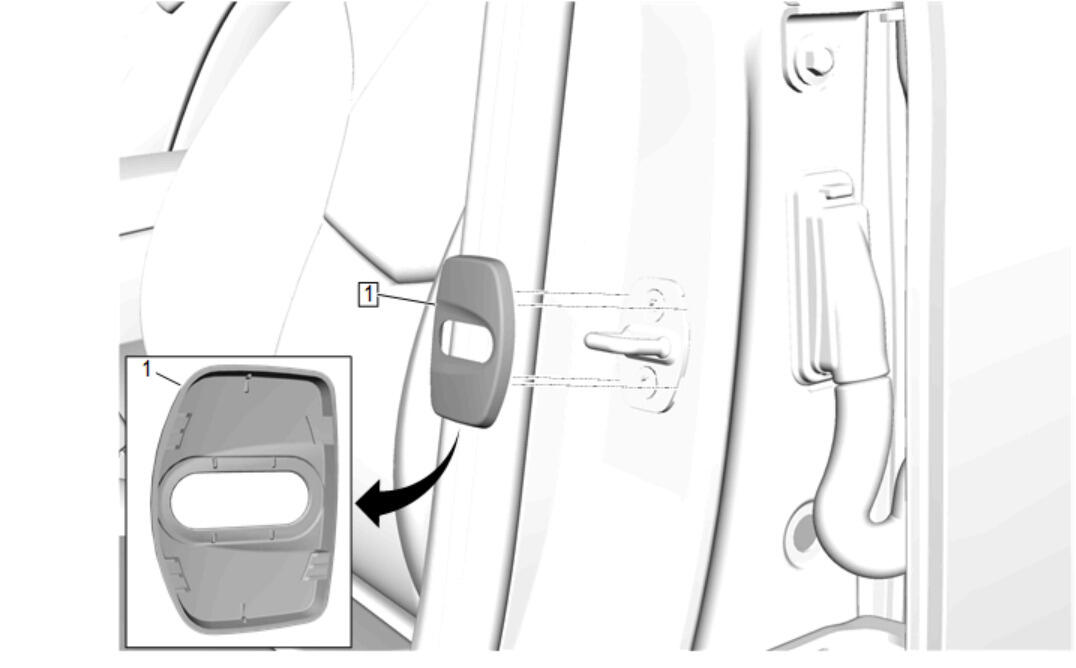

  1. GM5317816Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Latch Striker Cover (1) - Install

  2. Insert the inboard front side door latch striker cover retaining tabs into the front side door latch striker.
  3. Press the outboard front side door latch striker cover retaining tabs into place, ensuring the front side door latch striker cover (1) is fully seated.
