Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

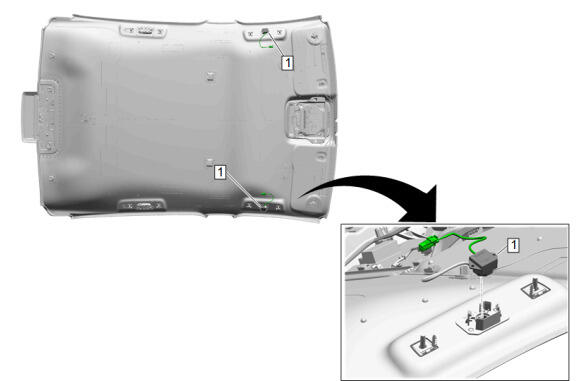

Active Noise Cancellation Microphone (1) - Install [2x]
Lock the retaining tabs
Connect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

Sunshade Bolt (2) - Install and tighten [2x] - Fastener Specifications
Sunshade Retainer Bolt Cover (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Center Pillar Upper Trim Panel (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Center Pillar Upper Garnish Molding Bolt (2) - Install and tighten - Fastener Specifications
Center Pillar Upper Trim Panel Bolt Cap (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Roof Rail Assist Handle (2) - Install
Roof Rail Assist Handle Bolt (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Windshield Multifunction Sensor Mount Bracket Cover Insert (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Install the windshield multifunction sensor mount bracket cover (1) ensuring the retaining tabs are fully seated.
Courtesy of GENERAL MOTORS COMPANY

Sunshade Support Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connector.
Windshield Garnish Molding Bolt (2) - Install and tighten - Fastener Specifications
Align the retainer clips with the slots in the A pillar and press the windshield garnish molding (1) into place.
Windshield Garnish Molding (1) - Install
Enable the SIR System. SIR Disabling and Enabling
