Installation Procedure

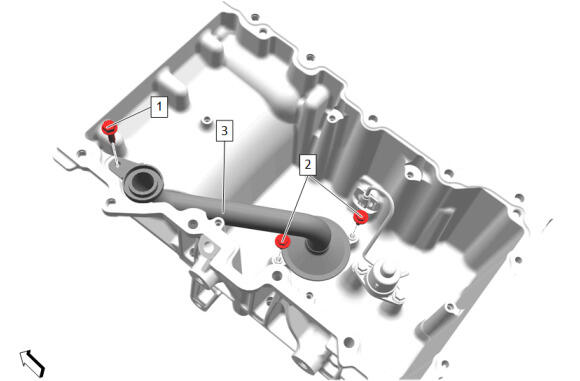

Oil Pump Suction Pipe (2) - Install
- Oil Pump Suction Pipe Bracket Bolt (2, 1) - Install and tighten [3x] - Fastener Specifications
Crankshaft Oil Deflector (2) - Install
- Oil Pan Baffle Bolt (1) - Install and tighten [6x] - Fastener Specifications
EN-46109 Guide Pin (1) - Install [2x]
- NOTE:
- Install and align the front cover within 10 minutes of applying the sealer.
- Ensure proper use of room temperature vulcanizing (RTV) sealant. Use of Room Temperature Vulcanizing (RTV) and Anaerobic Sealant
Apply a.3 mm (0.118 in) bead of RTV sealant on the engine front cover (1). Adhesives, Fluids, Lubricants, and Sealers
- Apply a 5 mm (0.197 in) bead of RTV sealant on the engine front cover (2). Adhesives, Fluids, Lubricants, and Sealers
Oil Pan (1) - Install
Oil Pan Bolt (3, 2, 1) - Install and hand tighten [11x]
- EN-46109 Guide Pin (1) - Remove [2x]
- Oil Pan Bolt (2) - Install and hand tighten [2x]
- Oil Pan Bolt (3, 2, 1) - Tighten in sequence [13x] - Fastener Specifications
- Connect the electrical connector.
Transmission Stud (1) - Install and tighten [5x] - Fastener Specifications
Catalytic Converter Brace (2) - Install
- Catalytic Converter Brace Bracket Nut (1) - Install and tighten [5x] - Fastener Specifications
Oil Filter Adapter Bolt (1) - Install and tighten - Fastener Specifications
Engine Oil Cooler Adapter (1) - Install
Engine Oil Cooler Adapter Bolt (1) - Install and tighten [3x] - Fastener Specifications
Engine Oil Cooler Pipe (2) @ Oil Filter Adapter - Install
- Retaining Clip (1) - Install
Radiator Outlet Hose (4) @ Engine Oil Cooler Adapter - Install
- Radiator Outlet Hose Clamp (3) @ Engine Oil Cooler Adapter - Engage - Hose Clamp Replacement Guidelines - Spring Type
- Turbocharger Coolant Feed Lower Hose (2) @ Engine Oil Cooler Adapter - Install
- Turbocharger Coolant Feed Hose Clamp (1) @ Engine Oil Cooler Adapter - Engage - Hose Clamp Replacement Guidelines - Spring Type
Engine Oil Cooler Pipe (2) - Install
- Retaining Clip (1) - Install
Engine Oil Cooler Pipe (2) @ Engine Oil Cooler Adapter - Install
- Retaining Clip (1) - Install
- NOTE:
Some components not shown for graphic clarity.
Engine Mount Bracket (1) - Install
- CAUTION:
Refer to Torque-to-Yield Fastener Caution .
Engine Mount Bracket Bolt (1) - Install NEW and tighten [4x] - Fastener Specifications
Engine Mount (1) - Install
- Lower the engine.
Engine Mount Nut (2) - Install and tighten - Fastener Specifications
- Engine Mount Bolt (1) - Install NEW and tighten [2x] - Fastener Specifications
Install transmission fluid cooler inlet and outlet pipe.
- Transmission Fluid Cooler Inlet and Outlet Pipe (1) - Install
- Transmission Fluid Cooler Pipe Connector Bolt (1) - Install and tighten - Fastener Specifications
- Install the transmission fluid cooler inlet and outlet pipe as necessary.
- NOTE:
Some components not shown for graphic clarity.
Engine Mount Bracket (1) - Install
- CAUTION:
Refer to Torque-to-Yield Fastener Caution .
Engine Mount Bracket Bolt (1) - Install NEW and tighten [4x] - Fastener Specifications
Engine Mount (1) - Install
- Lower the engine.
Engine Mount Nut (2) - Install and tighten - Fastener Specifications
- Engine Mount Bolt (1) - Install NEW and tighten [2x] - Fastener Specifications
- Remove the engine support fixture. Engine Support Fixture
Engine Front Cover (1) - Install - Engine Front Cover Removal and Installation
Oil Level Indicator Tube (1) - Install
Oil Level Indicator Tube Bolt (1) - Install and tighten - Fastener Specifications
Oil Level Indicator (1) - Install
Auxiliary Air Cleaner Outlet Duct (4) - Install
- Air Cleaner Outlet Duct Clamp (3) - Tighten - Fastener Specifications
- Fill the engine oil to the proper level with NEW engine oil. Engine Oil and Oil Filter Replacement
Refer to Fastener Caution .
Refer to Torque-to-Yield Fastener Caution .
Refer to Torque-to-Yield Fastener Caution .
