Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
  1. Relieve the fuel system pressure. Fuel Pressure Relief
  2. Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection
  3. Drain the cooling system. Refer to Cooling System Draining and Filling (LF4 Static Fill) , or Cooling System Draining and Filling (LF4 GE 47716)
  4. Remove the front tire and wheel assemblies. Tire and Wheel Removal and Installation
  5. GM5865881

    Plenum Front Panel (1) - Remove - Plenum Front Panel Removal and Installation (with Blackwing) , or Plenum Front Panel Removal and Installation (without Blackwing)

  6. Oil Filler Cap - Remove
  7. GM5839407

    Remove all wiring harness retainers from the front end sheet metal cross braces.

  8. Front End Sheet Metal Cross Brace Bolt- Left Side and Right Side (1) - Remove [6x]
  9. Front Suspension Strut Upper Mounting Nut- Left Side and Right Side (2) - Remove [4x]
  10. Front End Sheet Metal Cross Brace- Left Side and Right Side (3) - Remove [2x]
  11. GM5872932
    NOTE:

    Left side shown, right side similar.

    Front End Sheet Metal Diagonal Brace Nut- Right Side (1) - Remove

  12. Front End Sheet Metal Cross Brace Bolt- Right Side (2) - Remove
  13. Front End Sheet Metal Diagonal Brace- Right Side (3) - Remove
  14. Place shop cloths beneath the radiator surge tank outlet pipe connection points to absorb any potential coolant spillage.
  15. GM5861123

    Radiator Surge Tank Inlet Hose Clamp (1) @ Radiator Surge Tank Inlet Hose - Disengage - Hose Clamp Replacement Guidelines - Spring Type

  16. Radiator Surge Tank Inlet Hose Clip (2) @ Engine Control Module Bracket - Remove
  17. Radiator Surge Tank Inlet Hose Clamp (4) @ Engine Radiator - Disengage - Hose Clamp Replacement Guidelines - Spring Type
  18. Radiator Surge Tank Outlet Pipe (3) - Remove
  19. Remove the shop cloths from beneath the radiator surge tank outlet pipe.
  20. GM5839234
    CAUTION:

    Always turn the ignition off when installing or removing the ECM connectors in order to prevent damage to the components.

    CAUTION:
    • Turn the ignition OFF when installing or removing the control module connectors and disconnecting or reconnecting the power to the control module in order to prevent internal control module damage.
    • Control module damage may result when the metal case contacts battery voltage. DO NOT contact the control module metal case with battery voltage when servicing a control module, using battery booster cables, or when charging the vehicle battery.
    • In order to prevent any possible electrostatic discharge damage to the control module, do no touch the connector pins or the soldered components on the circuit board.
    • Remove any debris from around the control module connector surfaces before servicing the control module. Inspect the control module connector gaskets, and ensure that the gaskets are installed correctly. The gaskets prevent contaminant intrusion into the control module.

    Disconnect the electrical connectors.

  21. Use a suitable tool to release the locking tabs securing the engine control module (1) to the engine control module bracket.
  22. Engine Control Module (1) - Remove
  23. GM5839232

    Engine Control Module Bracket Bolt (1) - Remove [3x]

  24. GM5839233

    Use a suitable tool to release the locking tab and remove the transmission control module (1) by sliding it out from the engine control module bracket (2).

  25. Engine Control Module Bracket (2) - Remove
  26. GM5864667

    Air Cleaner Outlet Duct Clamp (1) - Loosen

  27. Air Cleaner Outlet Duct (2) - Reposition
  28. Air Cleaner Outlet Duct Clamp (3) - Loosen
  29. Auxiliary Air Cleaner Outlet Duct (4) - Reposition
  30. GM5862960

    Disconnect the 2 mass airflow sensor electrical connectors.

  31. Remove all retainers from the air cleaner assembly and reposition wiring harnesses as necessary.
  32. Air Cleaner Bolt (1) - Remove
  33. Air Cleaner Assembly (2) - Remove
  34. Oil Filler Cap - Remove
  35. GM5839283

    Intake Manifold Cover Bolt (1) - Remove

  36. Intake Manifold Cover (2) - Remove
  37. Drain the engine oil. Engine Oil and Oil Filter Replacement
  38. Install the oil filler cap after removal of the intake manifold cover to prevent debris from falling into the engine.
  39. GM4044046

    Engine Rear Noise Shield Bolt (1) - Remove

  40. GM5869276

    Engine Rear Noise Shield Bolt (1) - Remove [2x]

  41. Retainer (2) - Unclip [3x]
  42. Wiring Harness (3) - Reposition
  43. GM4044075

    Fuel Pipe Shield (1) - Remove

  44. GM5869727
    WARNING:

    The noise cancelling foam component MUST be replaced if it has been exposed to engine fluids. Failure to replace the noise cancelling foam component that has been exposed to engine fluids may result in an engine fire resulting in catastrophic engine damage, and possible injury or death.

    Engine Rear Noise Shield (1) - Remove

  45. GM5867529

    Fuel Feed Pipe (1) - Disconnect - Metal Collar Quick Connect Fitting Service

  46. GM4289077

    Electrical Connector (1) @ Fuel Feed Pipe Bracket (2) - Unclip [2x]

  47. GM4289104

    Fuel Feed Pipe Bolt (1) - Remove [2x]

  48. GM5870468
    NOTE:

    High pressure fuel feed pipes are one time use only. ALWAYS install a NEW high pressure fuel feed pipe if the pipe is removed OR the fittings are loosened.

    Fuel Feed Pipe Fitting (1) - Loosen until disengaged

  49. Fuel Feed Pipe (2) - Remove and DISCARD
  50. GM4214941

    Electrical Connector (1) @ Fuel Pump (2) - Disconnect

  51. GM5854948
    CAUTION:

    The Positive Crankcase Ventilation (PCV) line is tamper resistant and must always be replaced once it is removed. The fittings connected to the PCV line must also be replaced if they are damaged when the PCV line is removed. To reduce the risk of damage to the fittings, use a suitable cutting tool and carefully cut the connections away.

    Using a suitable cutting tool, carefully cut the 2 positive crankcase ventilation tube connectors (1).

  52. Positive Crankcase Ventilation Foul Air Tube (2) - Remove and DISCARD
  53. GM5860357

    Charge Air Bypass Valve Hose Clamp (1) - Loosen

  54. Charge Air Bypass Valve Hose (2) - Reposition
  55. Retainer Spring (3) - Disengage
  56. GM5860358

    Auxiliary Air Cleaner Outlet Duct (1) - Remove

  57. GM5861039

    Air Cleaner Outlet Duct Bracket Bolt (1) - Remove [2x]

  58. Retainer (2) - Remove [2x]
  59. Oil Level Indicator Tube (3) - Reposition
  60. GM5861042

    Air Cleaner Outlet Resonator Bracket (1) - Remove

  61. GM5846598
    CAUTION:

    The Positive Crankcase Ventilation (PCV) line is tamper resistant and must always be replaced once it is removed. The fittings connected to the PCV line must also be replaced if they are damaged when the PCV line is removed. To reduce the risk of damage to the fittings, use a suitable cutting tool and carefully cut the connections away.

    Using a suitable cutting tool, carefully cut the 2 positive crankcase ventilation tube connectors (1).

  62. Positive Crankcase Ventilation Fresh Air Tube (2) - Remove and DISCARD
  63. GM4057362

    Turbocharger Wastegate Actuator Vacuum Source Tube (1) @ Vacuum Pump - Disconnect - Plastic Collar Quick Connect Fitting Service

  64. GM5860354

    Charge Air Bypass Valve Hose Clamp (1) - Loosen

  65. Charge Air Bypass Valve Hose (2) - Reposition
  66. Air Cleaner Outlet Duct Clamp (3) - Loosen
  67. Retainer Spring (4) - Disengage
  68. GM5860355

    Air Cleaner Outlet Duct (1) - Remove

  69. GM5861118

    Radiator Surge Tank Inlet Hose Clip (3) @ Radiator Surge Tank Inlet Pipe Bracket - Unclip

  70. Radiator Surge Tank Inlet Hose (4) - Reposition
  71. GM5854879
    NOTE:
    • Observe the location and routing of the accessory drive primary belt to ensure proper installation.
    • Some components not shown for graphic clarity.

    Use a suitable tool to rotate the drive belt tensioner (1) counterclockwise to relieve tension from the accessory drive primary belt (2).

  72. Remove the accessory drive primary belt (2) from the pulleys and tensioner (1).
  73. Slowly release tension on the drive belt tensioner (1).
  74. Clean and inspect the drive belt surfaces of all the pulleys.
  75. GM6049112

    Water Pump Pulley Bolt (1) - Remove [4x]

  76. Water Pump Pulley (2) - Remove
  77. GM5865285

    Radiator Outlet Hose Clamp (1) - Disengage - Hose Clamp Replacement Guidelines - Spring Type

  78. Radiator Outlet Hose Clamp (2) - Disengage - Hose Clamp Replacement Guidelines - Spring Type
  79. Radiator Outlet Hose (3) @ Engine Oil Cooler Adapter - Remove
  80. Radiator Outlet Hose (4) @ Radiator Outlet Pipe - Remove
  81. GM5866913

    Radiator Outlet Hose Clamp (2) - Disengage - Hose Clamp Replacement Guidelines - Spring Type

  82. Radiator Outlet Hose (1) @ Engine Radiator - Remove
  83. GM5866915

    Radiator Outlet Hose Clip (1) @ Radiator Outlet Hose Bracket - Remove

  84. Radiator Outlet Hose Clip (2) @ Engine Cooler Fan - Remove
  85. GM5875514

    Radiator Outlet Pipe Bolt (1) - Remove

  86. GM5875715

    Heater Inlet Hose Retainer (1) - Disengage

  87. Heater Inlet Hose (2) @ Heater Core - Disconnect and repositionRemove
  88. Heater Outlet Hose Clamp (3) @ Auxiliary Heater Inlet Hose Tee - Disengage - Hose Clamp Replacement Guidelines - Spring Type
  89. Heater Outlet Hose (4) @ Auxiliary Heater Inlet Hose Tee - Disconnect and reposition
  90. GM5875536

    Wiring Harness Retainer (1) - Remove [2x]

  91. GM5875557

    Radiator Outlet Pipe Bolt (1) - Remove

  92. Radiator Outlet Pipe Bolt (2) - Remove
  93. GM5875573

    Radiator Outlet Pipe (1) - Remove

  94. Radiator Outlet Pipe Seal (2) - Remove and DISCARD
  95. GM5866934

    Radiator Outlet Hose (1) - Remove

  96. Raise and support the vehicle. Lifting and Jacking the Vehicle
  97. GM5876673
    NOTE:

    Left side shown, right side similar.

    Front Wheelhouse Liner Bolt- Left Side and Right Side (1) - Remove [4x]

  98. Front Compartment Air Deflector Retainer- Left Side and Right Side (2) - Remove [2x]
  99. Front Bumper Fascia Lower Stiffener Bolt- Left Side and Right Side (3) - Remove [6x]
  100. GM5876696
    NOTE:

    Left side shown, right side similar.

    Front Compartment Air Deflector- Left Side and Right Side (1) - Remove [2x]

  101. GM5862911

    Front Bumper Fascia Air Deflector Bolt (1) - Remove [4x]

  102. Front Bumper Fascia Air Deflector Retainer (2) - Remove
  103. Support the front cradle shear plate using a suitable jack.
  104. GM5877036

    Front Cradle Shear Plate Bolt (1) - Remove [4x]

  105. Front Cradle Shear Plate Nut (2) - Remove [2x]
  106. Front Crossmember Brace Bolt (3) - Remove [8x]
  107. GM5877073

    Front Wheelhouse Liner Bolt (1) - Remove [2x]

  108. GM5877068

    Position the left and right side wheelhouse liners (1) away from the front cradle sheer plate (2).

  109. Remove the front cradle sheer plate (2) from between the front bumper fascia center air deflector and the driveline and front suspension cradle and lower it from the vehicle.
  110. GM5854965

    Air Conditioning Compressor Bolt (1) - Remove

  111. Air Conditioning Compressor Rear Bracket (2) - Remove
  112. Electrical Connector (4) - Disconnect [2x]
  113. Wiring Harness Retainer (3) - Remove [2x]
  114. GM5854957

    Air Conditioning Compressor Hose Bolt (4) - Remove

  115. Air Conditioning Evaporative Connector Hose/Tube and Compressor Hose (3) - Remove
  116. Air Conditioning Compressor Hose Seal - Large (2) - Remove and DISCARD
  117. Air Conditioning Compressor Hose Seal - Small (1) - Remove and DISCARD
  118. GM5854958

    Air Conditioning Compressor Bolt (1) - Remove [2x]

  119. GM5854959

    Air Conditioning Compressor (1) - Remove

  120. GM5854905
    NOTE:

    Some components not shown for graphic clarity.

    Drive Belt Tensioner Bolt (1) - Remove

  121. Drive Belt Tensioner (2) - Remove
  122. GM5902682

    Air Conditioning Compressor Front Bracket Bolt (1) - Remove [2x]

  123. Air Conditioning Compressor Front Bracket Bolt (2) - Remove [2x]
  124. Air Conditioning Compressor Front Bracket (3) - Remove
  125. GM5863684

    Charge Air Cooler Front Bracket Bolt (1) - Remove [2x]

  126. Auxiliary Water Pump (2) - Remove
  127. GM5880573

    Electrical Connector (4) - Disconnect

  128. Protective Cap (1) - Remove
  129. Engine Wiring Harness Generator Lead Nut (2) - Remove
  130. Starter Solenoid Cable (3) - Remove
  131. GM4277485

    Generator Bolt (1) - Remove [3X]

  132. Generator (2) - Remove
  133. GM5877760

    Generator Bracket Bolt (1) - Remove [2X]

  134. Generator Bracket Bolt (2) - Remove
  135. Generator Bracket Bolt (3) - Remove
  136. GM5877761

    Generator and Drive Belt Tensioner Bracket (1) - Remove

  137. GM5395705
    NOTE:

    Left side shown, right side similar.

    Rear Tire Front Air Deflector Bolt- Left Side and Right Side (1) - Remove [4x]

  138. Rear Tire Front Air Deflector- Left Side and Right Side (2) - Remove [2x]
  139. GM5400553

    Rear Wheelhouse Liner Bolt- Left Side (1) - Remove

  140. Underbody Rear Air Deflector Nut- Left Side (2) - Remove [3x]
  141. Underbody Rear Air Deflector Bolt- Left Side (3) - Remove [3x]
  142. Underbody Rear Air Deflector Nut- Left Side (4) - Remove [2x]
  143. Underbody Rear Air Deflector- Left Side (5) - Remove
  144. GM5400642

    Rear Wheelhouse Liner Bolt- Right Side (1) - Remove

  145. Underbody Rear Air Deflector Bolt- Right Side (2) - Remove [3x]
  146. Underbody Rear Air Deflector Nut- Right Side (3) - Remove [3x]
  147. Underbody Rear Air Deflector Nut- Right Side (4) - Remove [2x]
  148. Underbody Rear Air Deflector- Right Side (5) - Remove
  149. GM5839256

    Underbody Front Air Deflector Bolt- Right Side (1) - Remove [6x]

  150. Underbody Rear Air Deflector Nut- Right Side (2) - Remove [5x]
  151. Transmission Fluid Cooler Pipe Bracket Bolt- Right Side (3) - Remove [2x]
  152. Underbody Rear Air Deflector- Right Side (5) - Remove
  153. GM5854893

    Underbody Front Air Deflector Bolt- Left Side (1) - Remove [6x]

  154. Underbody Rear Air Deflector Nut- Left Side (2) - Remove [5x]
  155. Transmission Fluid Cooler Pipe Bracket Bolt- Left Side (3) - Remove [2x]
  156. Underbody Rear Air Deflector- Left Side (5) - Remove
  157. GM5400756

    Floor Panel Number 4 Cross Bar Reinforcement Bolt (1) - Remove [6x]

  158. Floor Panel Reinforcement (2) - Remove
  159. GM5865265

    Catalytic Converter Nut (1) - Remove [2x]

  160. GM5865271

    Exhaust Pipe Clamp (1) - Loosen [2x]

  161. GM5406578

    Exhaust Muffler (1) @ Exhaust Intermediate Pipe Insulator-Left Side (2) - Separate [2x]

  162. GM5406632

    Exhaust Muffler (1) @ Exhaust Intermediate Pipe Insulator-Right Side (2) - Separate [2x]

  163. GM5865287

    Electrical Connector- Right Side (1) - Disconnect

  164. GM5865293

    Electrical Connector- Left Side (1) - Disconnect

  165. GM5865300
    NOTE:

    Some components not shown for graphic clarity.

    Exhaust Muffler Hanger Bracket Nut (1) - Remove [4x]

  166. GM5865329

    With the aid of an assistant, remove the exhaust muffler (1).

  167. Catalytic Converter Gasket (2) - Remove and DISCARD
  168. GM5865888

    Exhaust Heat Shield Bolt (2) - Remove [2x]

  169. Exhaust Intermediate Underbody Heat Shield (3) - Remove
  170. GM5334717

    Floor Panel Number 2 Cross Bar Reinforcement Bolt (1) - Remove [4x]

  171. Floor Panel Number 2 Cross Bar Reinforcement (2) - Remove
  172. Using a suitable jack stand, support the rear of the transmission.
  173. GM5867370

    Transmission Mount Bracket Bolt (1) - Remove [4x]

  174. GM5867371

    Transmission Mount Bolt (1) - Remove [2x]

  175. Transmission Mount (2) - Remove
  176. GM5863694
    NOTE:

    Before removing the propeller shaft from the vehicle, paint or scribe references marks on the transmission flange to the propeller shaft and the rear differential drive flange to ensure minimal driveline system imbalance.

    Mark (2) the relationship of the propeller shaft flange (3) and the output flange (1) of the transmission.

  177. GM5863695

    Mark (3) the relationship of the propeller shaft flange (1) and the rear axle pinion flange (2).

  178. GM5863696
    NOTE:

    Ensure that the propeller shaft is secured to the jack stand.

    Support the propeller shaft with a suitable jack stand.

  179. Remove the 3 front propeller shaft bolts (2) and the front propeller shaft nuts (1).
  180. GM5863697

    Remove the 3 rear propeller shaft bolts (1) and the 3 rear propeller shaft nuts (2).

  181. GM5863691

    Remove the 2 propeller shaft bearing support bolts (1).

  182. GM5863853
    CAUTION:

    Care should be taken not to use sharp or pry tools when separating the propeller shaft coupler from the drive flange. Damage to the coupler could result and replacement of the entire propeller shaft would be required.

    NOTE:

    It may be necessary to apply a small amount of penetrating lubricant or WD-40® to the area shown (1) to aid in separation of the propeller shaft coupling.

    If the propeller shaft does not easily separate from the differential, or transmission, use a rubber mallet to gently tap the locations (1) on the rubber coupling shown above to separate.

  183. GM5863854

    Remove the propeller shaft (1) from the vehicle.

  184. GM5872016

    Catalytic Converter Brace Bracket Nut (1) - Remove [5x]

  185. Catalytic Converter Brace (2) - Remove
  186. GM5873893

    Disconnect the heated oxygen sensor electrical connector.

    187. CAUTION:

    Refer to Heated Oxygen and Oxygen Sensor Caution .

    NOTE:

    The heated oxygen sensor MAY be difficult to remove when the engine temperature is less than 48°C (120°F).

  187. Remove the heated oxygen sensor (1) using a suitable tool.
  188. GM5786730

    Disconnect the heated oxygen sensor electrical connector. (1)

  189. GM5873921

    Catalytic Converter Nut (1) - Remove [4x]

  190. GM5873937

    Warm Up Three-Way Catalytic Converter (1) - Remove

  191. Turbocharger Exhaust Pipe Gasket (2) - Remove and DISCARD
  192. GM5786732

    Disconnect the heated oxygen sensor electrical connector.

    193. CAUTION:

    Refer to Heated Oxygen and Oxygen Sensor Caution .

    NOTE:

    The heated oxygen sensor MAY be difficult to remove when the engine temperature is less than 48°C (120°F).

  193. Remove the heated oxygen sensor (1) using a suitable tool.
  194. GM5786728

    Disconnect the heated oxygen sensor electrical connector. (1)

  195. GM5872256

    Catalytic Converter Nut (1) - Remove [4x]

  196. GM5872277

    Warm Up Three-Way Catalytic Converter (1) - Remove

  197. Turbocharger Exhaust Pipe Gasket (2) - Remove and DISCARD
  198. GM5414842

    Transmission Fluid Cooler Pipe Connector Bolt (1) - Remove [2x]

  199. Transmission Fluid Cooler Pipe Bolt (2) - Remove
  200. Transmission Fluid Cooler Pipe Clip Bolt (3) - Remove
  201. GM5414849

    Transmission Fluid Cooler Pipe Nut (1) - Remove [2x]

    202. NOTE:

    Cap the fittings and plug the holes when removing the transmission fluid cooler pipes.

  202. Transmission Fluid Cooler Inlet and Outlet Pipe (2) - Remove
  203. GM5414854

    Transmission Fluid Cooler Pipe Seal (1) - Remove and DISCARD [2x]

  204. Transmission Fluid Cooler Seal (2) - Remove and DISCARD
  205. GM5414859

    Transmission Fluid Cooler Thermal Bypass Valve Gasket (1) - Remove and DISCARD [2x]

  206. GM5488458

    Transmission Fluid Cooler Pipe Connector Bolt (1) - Remove [2x]

    207. NOTE:

    Cap the fittings and plug the holes when removing the transmission fluid cooler pipes.

  207. Transmission Fluid Cooler Inlet and Outlet Pipe (2) @ Automatic Transmission Fluid Cooling Exchanger - Remove
  208. GM5488459

    Transmission Fluid Cooler Pipe Seal (1) - Remove and DISCARD [2x]

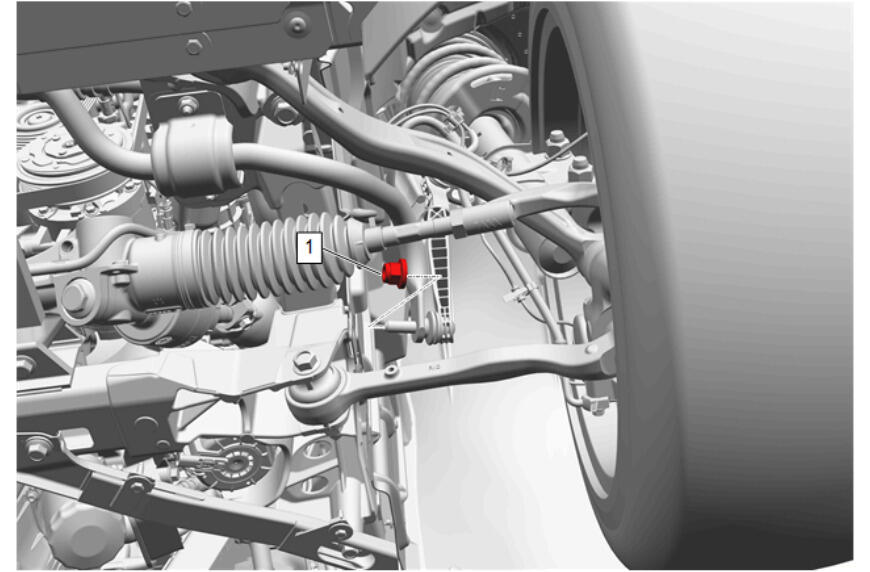

  209. GM5449520
    NOTE:

    Left side shown, right side similar.

    Remove the 2 shaft link nuts (1) from the left and right side stabilizer shaft link.

  210. Separate the left and right side stabilizer shaft links from the stabilizer shaft.
  211. GM5873833
    NOTE:

    Left side shown, right side similar.

    Remove the 4 chassis harness retainers (1) on the left and right side front brake rotor cooling duct deflectors.

  212. GM5873831
    NOTE:

    Left side shown, right side similar.

    Front Brake Rotor Cooling Duct Deflector Bolt- Left Side and Right Side (2) - Remove [6x]

  213. Front Brake Rotor Cooling Duct Deflector- Left Side and Right Side (1) - Remove
  214. GM5479740
    NOTE:
    • Left side shown, right side similar.
    • Some components not shown for graphic clarity.

    Loosen the left and right steering linkage outer tie rod nuts (1).

  215. GM5474571
    CAUTION:

    Do not attempt to disconnect a steering linkage joint by driving a wedge between the joint and the attached part. Seal damage may result which will cause premature failure of the joint.

    NOTE:
    • Left side shown, right side similar.
    • Some components not shown for graphic clarity.

    Using the CH-42188-B  Ball Joint Separator (1), separate the left and right steering linkage outer tie rods (2) from the left and right steering knuckles.

  216. GM5420203
    NOTE:
    • Left side shown, right side similar.
    • Some components not shown for graphic clarity.

    Remove the left and right steering linkage outer tie rod nuts (1).

  217. GM4093212
    NOTE:

    Left side shown, right side similar.

    Separate the left and right steering linkage outer tie rods (1) from the left and right steering knuckles.

  218. GM5479919

    Intermediate Steering Shaft Lower Bolt (1) @ Electric Belt Drive Rack and Pinion Steering Gear - Remove

  219. Intermediate Steering Shaft (2) @ Electric Belt Drive Rack and Pinion Steering Gear - Separate
  220. GM5316620

    Disconnect the electrical connectors.

  221. Remove the tie strap securing the engine wiring harness to the electric belt drive rack and pinion steering gear.
  222. Reposition the engine wiring harness away.
  223. GM5480145

    Steering Gear Nut (1) - Remove [2x]

  224. Steering Gear Bolt (2) - Remove and DISCARD [2x]
  225. Electric Belt Drive Rack and Pinion Steering Gear (3) - Remove
  226. GM5324704
    NOTE:
    • Left side shown, right side similar.
    • Do NOT allow the ball stud to rotate while loosening the nut.

    Front Lower Control Arm Ball Stud Nut- Left Side and Right Side (1) - Loosen [2x]

  227. GM5324710
    NOTE:

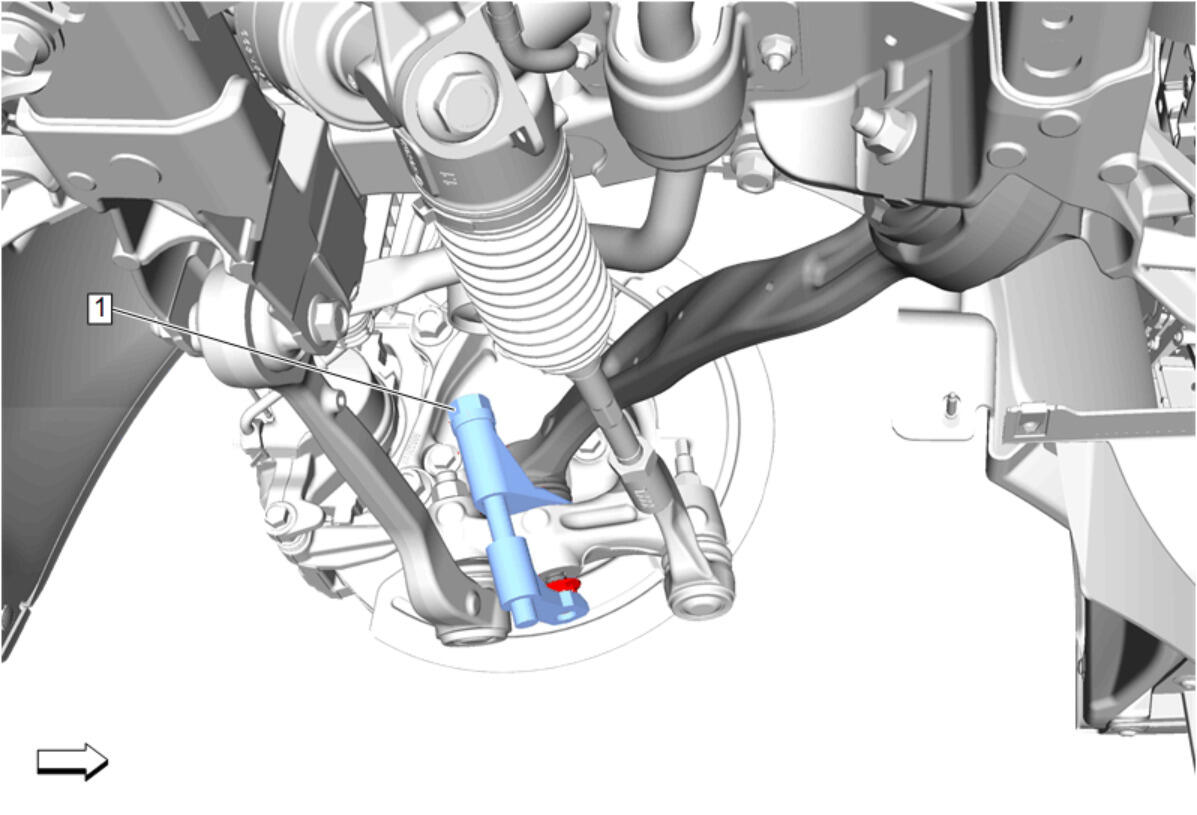

    Left side shown, right side similar.

    Using the CH-42188-B  Ball Joint Separator (1), separate the left and right side front lower control front links from the left and right side steering knuckles.

  228. GM5324712
    NOTE:

    Left side shown, right side similar.

    Front Lower Control Arm Ball Stud Nut- Left Side and Right Side (1) - Remove [2x]

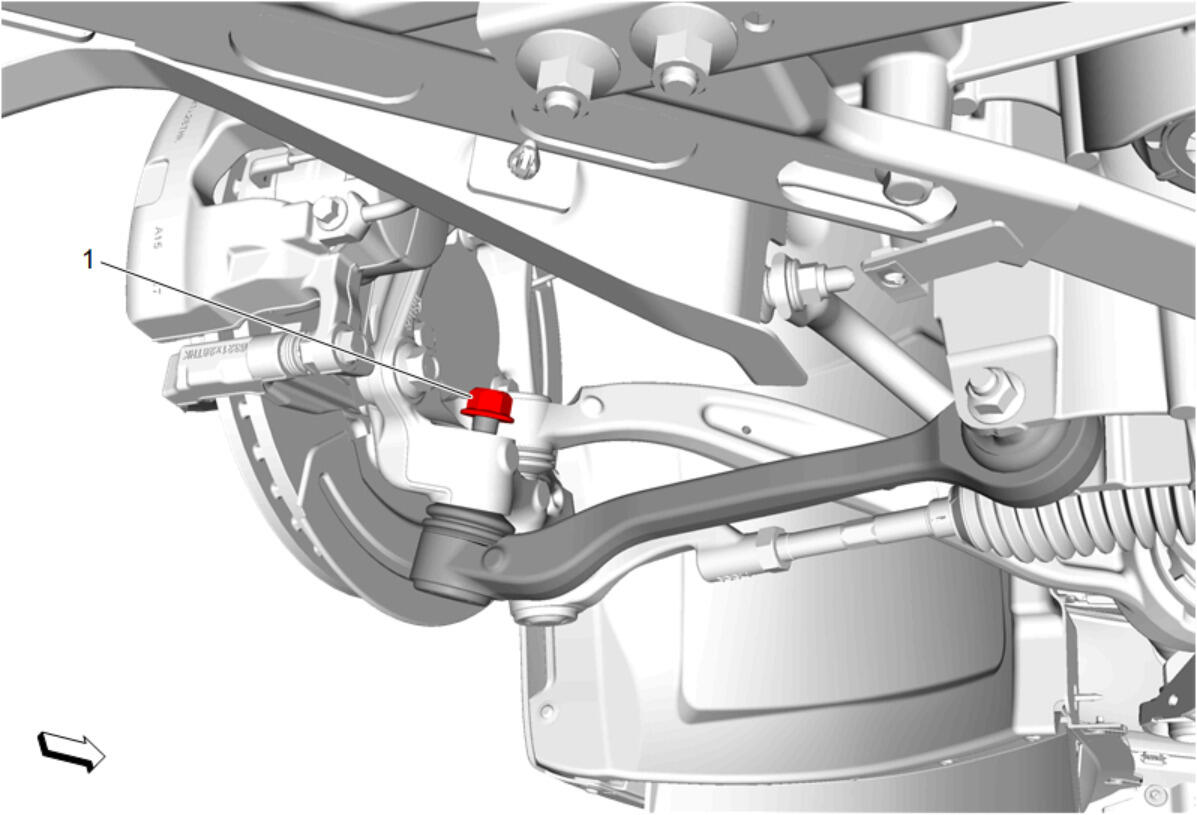

  229. GM5324953
    NOTE:
    • Left side shown, right side similar.
    • Do NOT allow the ball stud to rotate while loosening the nut.

    Front Lower Control Arm Ball Stud Nut- Left Side and Right Side (1) - Loosen [2x]

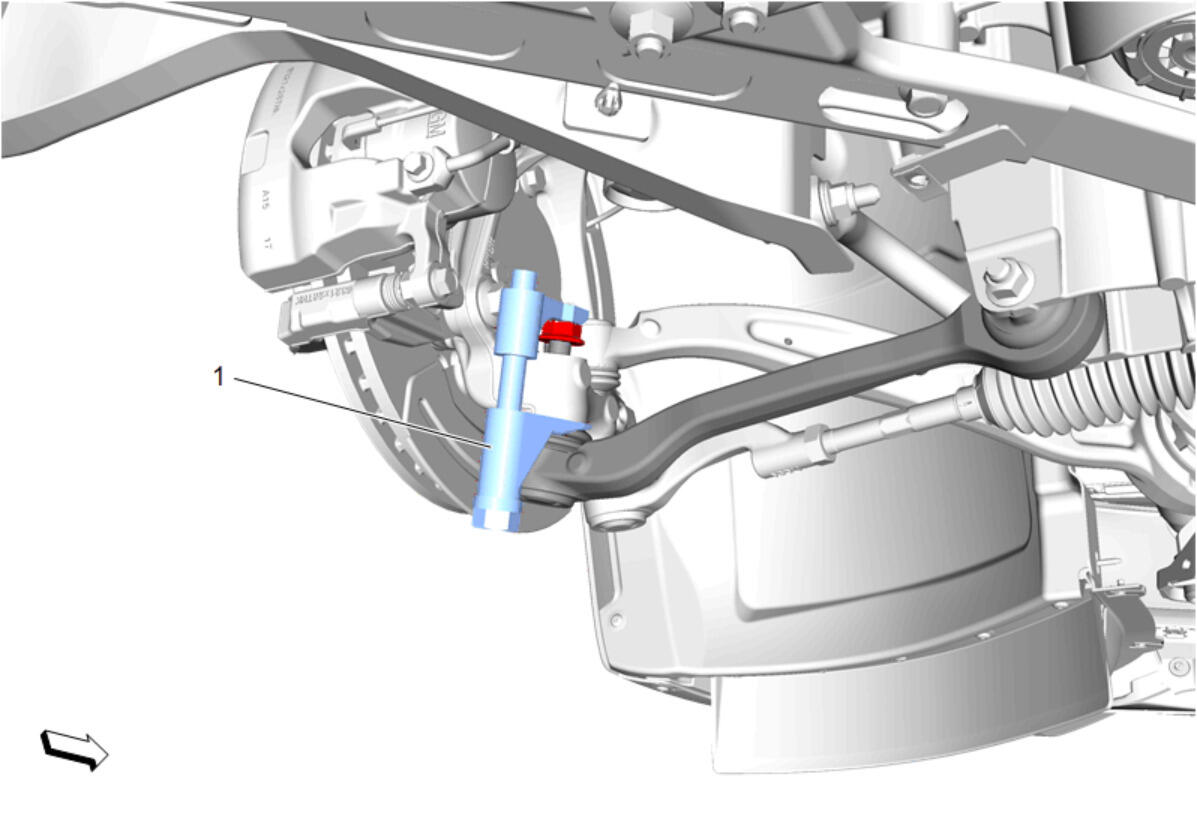

  230. GM5324955
    NOTE:

    Left side shown, right side similar.

    Using the CH-42188-B  Ball Joint Separator (1), separate the left and right side front lower control rear links from the left and right side steering knuckles.

  231. GM5324956
    NOTE:

    Left side shown, right side similar.

    Front Lower Control Arm Ball Stud Nut- Left Side and Right Side (1) - Remove [2x]

  232. GM5877980
    NOTE:

    Left side shown, right side similar.

    Separate the left and right side front lower control arm front links (1) from the left and right side steering knuckles.

  233. Separate the left and right side front lower control arm rear links (2) from the left and right side steering knuckles.
  234. GM5873162
    NOTE:

    Left side shown, right side similar.

    Front Bumper Fascia Bolt- Left Side and Right Side (1) - Remove [12x]

  235. Front Bumper Fascia Lower Stiffener Bolt- Left Side and Right Side (2) - Remove [2x]
  236. Front Bumper Fascia Air Deflector Bolt- Left Side and Right Side (3) - Remove [8x]
  237. GM5873163
    NOTE:

    Left side shown, right side similar.

    Front Bumper Fascia Air Deflector Bolt- Left Side and Right Side (1) - Remove [12x]

  238. Front Bumper Fascia Lower Reinforcement- Left Side and Right Side (2) - Remove [2x]
  239. GM5867673

    Front Wheelhouse Liner- Left Side and Right Side (3) - Reposition [2x] - Front Wheelhouse Liner Replacement , or Front Wheelhouse Liner Replacement (Blackwing)

  240. GM5482555

    Auxiliary Radiator Duct Retainer- Left Side (1) - Remove [3x]

  241. GM5482558

    Auxiliary Radiator Rear Duct- Left Side (1) - Remove

  242. GM5470177

    Auxiliary Radiator Duct Retainer- Right Side (1) - Remove [3x]

  243. GM5470179

    Auxiliary Radiator Rear Duct- Right Side (1) - Remove

  244. GM5839403

    Front Bumper Fascia (1) - Remove - Front Bumper Fascia Removal and Installation (without Blackwing) , or Front Bumper Fascia Removal and Installation (with Blackwing) , or Front Bumper Fascia Removal and Installation (with Blackwing CFV, CFZ)

  245. GM5481342

    Auxiliary Radiator Duct Retainer- Left Side (1) - Remove [3x]

  246. GM5481344

    Auxiliary Radiator Duct Retainer- Left Side (1) - Remove [2x]

  247. GM5454422

    Auxiliary Radiator Duct Retainer- Right Side (1) - Remove [3x]

  248. GM5454427

    Auxiliary Radiator Duct Retainer- Right Side (1) - Remove [2x]

  249. GM5420756

    { If equipped } Forward Range Radar Bracket Bolt (1) - Remove [3x]

    250. NOTE:

    Forward range radar sensor will be with the bracket.

  250. { If equipped } Forward Range Radar Bracket (2) - Remove
  251. Disconnect the electrical connector.
  252. GM5873049
    NOTE:

    Left side shown, right side similar.

    Auxiliary Radiator Front Inlet Duct- Left Side and Right Side (1) - Reposition [2x]

  253. Transmission Fluid Auxiliary Cooler Bracket Bolt- Left Side and Right Side (2) - Remove [2x]
  254. GM5485943
    NOTE:

    Left side shown, right side similar.

    Horn Bolt- Left Side and Right Side (1) - Remove [2x]

  255. Horn- Left Side and Right Side (2) - Reposition [2x]
  256. GM5873051

    Reposition the wiring harness.

  257. Front Bumper Impact Bar Bolt (1) - Remove [8x]
  258. Front Bumper Impact Bar (2) - Remove
  259. GM5481345

    Auxiliary Radiator Front Duct- Left Side (1) - Remove

  260. GM5454437

    Auxiliary Radiator Front Duct- Right Side (1) - Remove

  261. GM5867167

    Using an appropriate tool, remove the auxiliary radiator outlet hose retainer (1) from the auxiliary radiator outlet hose connector at the left side charge air cooler.

  262. Remove the auxiliary radiator outlet hose (2) from the left side charge air cooler.
  263. GM5862986

    Radiator Outlet Hose Clip (3) - Remove

  264. Using an appropriate tool, remove the retainer (1) from the auxiliary water pump outlet upper hose connector at the left side charge air cooler.
  265. Remove the auxiliary water pump outlet upper hose (2) from the left side charge air cooler.
  266. GM5512211

    Charge Air Cooler Upper Bracket Nut (1) - Loosen

  267. Charge Air Cooler Bracket Bolt (2) - Remove [3x]
  268. GM5512214

    Remove the left side charge air cooler assembly (1) from the vehicle.

  269. GM5867788

    Using an appropriate tool, remove the auxiliary radiator inlet hose retainer (1) from the auxiliary radiator inlet hose connector at the right side charge air cooler.

  270. Remove the auxiliary radiator inlet hose (2) from the right side charge air cooler.
  271. GM5866945

    Radiator Outlet Hose Clip (1) - Remove

  272. Using an appropriate tool, remove the radiator outlet hose retainer (3) from the radiator outlet hose connector at the right side charge air cooler.
  273. Remove the radiator outlet hose (2) from the right side charge air cooler.
  274. GM5471812

    Charge Air Cooler Bracket Bolt (1) - Remove [3x]

  275. Charge Air Cooler Upper Bracket Nut (2) - Loosen
  276. GM5471814

    Remove the right side charge air cooler assembly (1) from the vehicle.

  277. GM5878076

    Radiator Outlet Hose Bracket Bolt (1) - Remove

  278. GM5877817

    Engine Wiring Harness Retainer (1) @ Drivetrain and Front Suspension Cradle - Remove [2x]

  279. Engine Wiring Harness Retainer (2) @ Drivetrain and Front Suspension Cradle - Remove
  280. Engine Wiring Harness Retainer (4) @ Charge Air Cooler Bracket Plate Stud - Remove
  281. Reposition the engine wiring harness (3) away from the drivetrain and front suspension cradle.
  282. GM5877819
    NOTE:

    Left side shown, right side similar.

    Electronic Suspension Strut Wiring Harness Retainer - Left Side and Right Side (1) @ Drivetrain and Front Suspension Cradle - Remove [2x]

  283. Using a suitable wire or strap secure the engine coolant fan module radiator assembly to the left and right side radiator upper brackets.
  284. Using a suitable jack, support the drivetrain and front suspension cradle.
  285. GM5877905

    Position the GE-52200  Powertrain and Battery Lifter underneath the vehicle.

  286. Drivetrain and Front Suspension Cradle Rear Bolt (2) - Remove [2x]
  287. Drivetrain and Front Suspension Cradle Front Bolt (1) - Remove and DISCARD [6x]
  288. Lower the drivetrain and front suspension assembly, powertrain from the vehicle.
    289. CAUTION:

    Refer to Fastener Caution .

  289. EN-51768  Engine Support Fixture Adapter Bolts- M10 (2) - Install and tighten 65 N.m (48 lb ft)
  290. GM5865859

    EN-36857  Engine Lift Bracket Set (1) - Install

  291. EN-51768  Engine Support Fixture Adapter Bolts- M10 (2) - Install and tighten 65 N.m (48 lb ft)

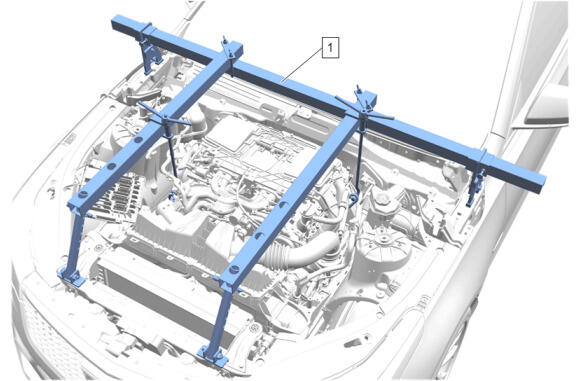

  292. GM5865860
    NOTE:

    Ensure that the engine support fixture only contacts the frame. Do not install on top of fender lip.

    EN-51007  Global Engine Support Fixture (1) - Install

  293. GM5488460

    Automatic Transmission Fluid Cooling Exchanger Bolt (1) - Remove [3x]

  294. Automatic Transmission Fluid Cooling Exchanger (2) - Remove
  295. GM5879181

    Turbocharger Heat Shield Bolt (1) - Remove

  296. GM5879216

    Turbocharger Heat Shield (1) - Remove

  297. GM5875352
    NOTE:

    Some components not shown for graphic clarity.

    Turbocharger Oil Feed Pipe Bolt (1) - Remove

  298. Turbocharger Oil Feed Pipe Washer (2) - Remove and DISCARD
  299. Turbocharger Oil Feed Pipe (3) - Remove
  300. GM5874904
    NOTE:

    Some components not shown for graphic clarity.

    Turbocharger Oil Return Pipe Bolt (1) - Remove [4x]

  301. GM5874905
    NOTE:

    Some components not shown for graphic clarity.

    Turbocharger Oil Return Pipe (1) - Remove

  302. Turbocharger Oil Return Pipe Gasket (2) - Remove and DISCARD [2x]
  303. GM5892303

    Turbocharger Coolant Feed and Return Pipe Bolt (1) - Remove

  304. Turbocharger Coolant Feed and Return Pipe Gasket (2) @ Compressor Air Intake Turbocharger - Remove and DISCARD [2x]
  305. Turbocharger Coolant Feed Pipe (3) @ Compressor Air Intake Turbocharger - Separate
  306. GM5880453

    Turbocharger Bolt (1) - Remove [4x]

  307. GM5880454

    Compressor Air Intake Turbocharger (1) - Remove

  308. Turbocharger Gasket (2) - Remove and DISCARD
  309. GM5949435

    Starter Shield Bolt (1) - Remove

  310. GM5949804

    Starter Heat Shield (2) @ Starter (1) - Remove

  311. GM5950348

    Starter Solenoid Cable Nut (1) - Remove

  312. Starter Solenoid Cable Retainer (2) - Remove
  313. GM5950484

    Wiring Harness (1) @ Starter (2) - Disconnect

  314. Wiring Harness (1) - Reposition away
  315. GM5950612

    Starter Bolt (1) - Remove

  316. Starter Bolt (2) - Remove
  317. GM5951972

    Starter (1) - Remove

  318. GM5342773

    Repeat the following steps for all torque converter bolts (1):

    1. Rotate the harmonic balancer center bolt clockwise ONLY, to align the torque converter bolt with the starter opening.
    2. Torque Converter Bolt (1) - Remove [6x]
  319. GM5522054

    Disconnect the electrical connector. (1)

  320. Release the 5 retainers (2).
  321. GM5522052

    Transmission Bolt (1) - Remove [3x]

  322. Transmission Stud (1) - Remove
  323. GM5522047

    Transmission Bolt (1) - Remove [3x]

  324. Transmission Stud (1) - Remove
  325. GM5523009

    Transmission Stud (1) - Remove

  326. Disconnect the transmission vent hose from the engine.
  327. Support the transmission with a suitable jack.
  328. GM5427472

    Transmission Mount Bracket Bolt (1) - Remove [4x]

  329. GM5427478

    Transmission Mount Bolt (1) - Remove [2x]

  330. Transmission Mount (2) - Remove
  331. Pull the transmission straight back.
  332. GM5536478

    Install the J-21366  strap (1) onto the transmission bell housing to retain the torque converter.

  333. GM5522056

    Remove the transmission. (1)

  334. GM5867016

    Engine Mount Bolt- Left Side (1) - Remove and DISCARD [2x]

  335. GM5867016

    Engine Mount Bolt- Right Side (1) - Remove and DISCARD [2x]

scientia non olet · About LEMON Manuals
