Installation Procedure

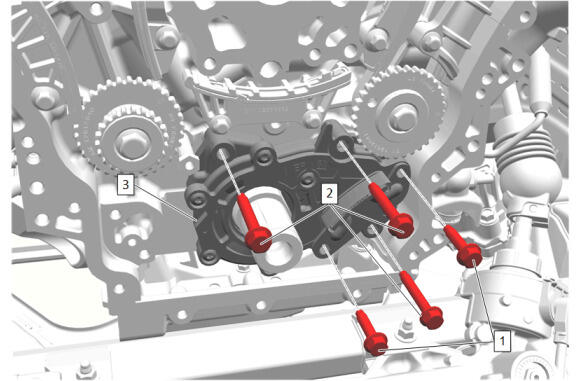

Oil Pump (3) - Remove
- Oil Pump Bolt (2) - Remove [3x] - Fastener Specifications
- Timing Chain Guide Bolt (1) - Remove [2x] - Fastener Specifications
- NOTE:
Ensure the crankshaft sprocket is installed with the timing mark visible.

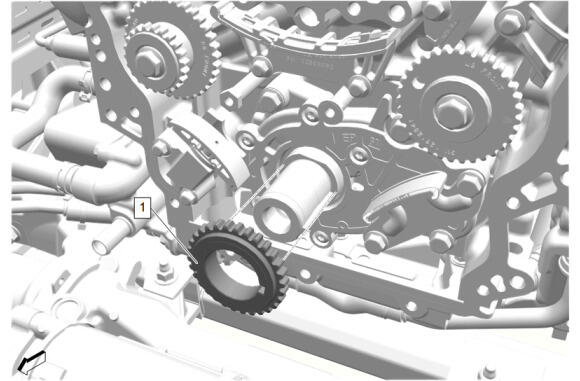

Crankshaft Sprocket (1) - Install
Verify the timing components are correctly aligned for stage 1, refer to Timing Chain Alignment Diagram . If not in stage 1, position the EN-48589 - A Crankshaft Socket Wrench (1), rotate the crankshaft and crankshaft sprocket to stage 1 alignment position.

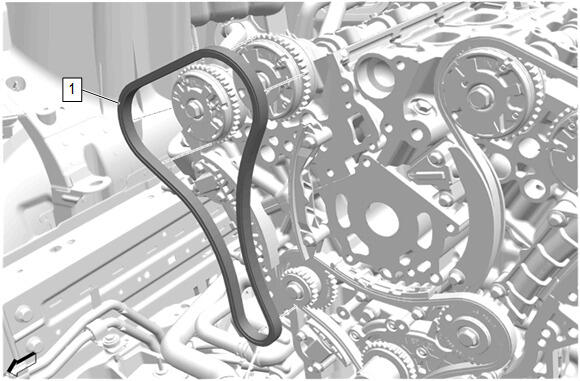

Camshaft Intermediate Drive Chain (1) - Install

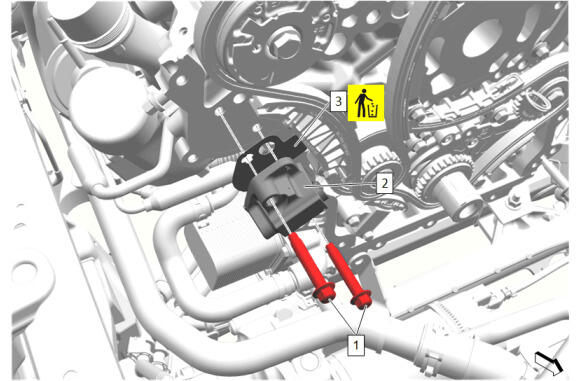

Timing Chain Housing Gasket (3) - Install NEW
- Camshaft Intermediate Drive Chain Tensioner (2) - Install
- Timing Chain Tensioner Bolt (1) - Install and tighten [2x] - Fastener Specifications

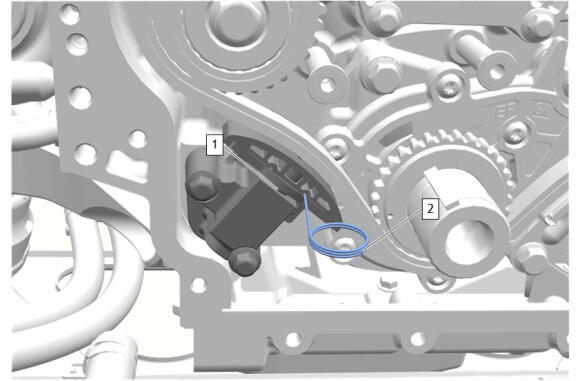

Remove the EN-46112 Tensioner Retraction Pin (2) to release timing chain tensioner plunger (1).

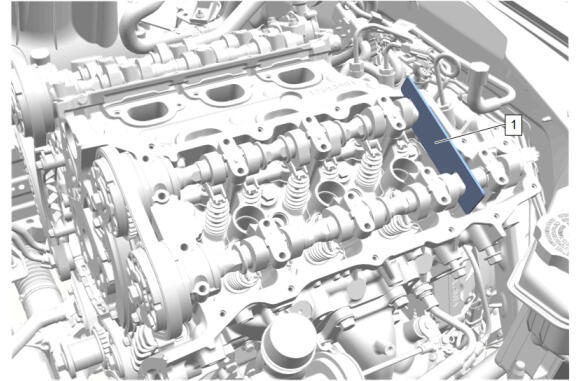

Remove the EN-48383 - 1 Camshaft Retaining Tool (1).

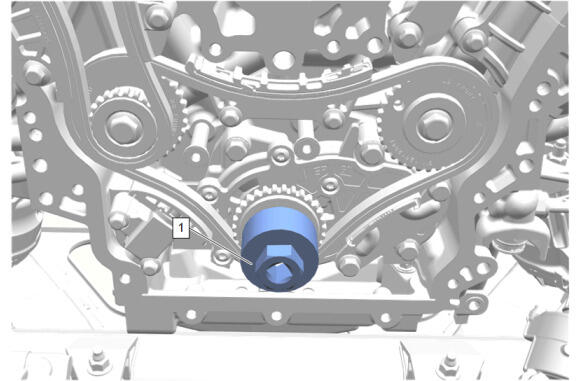

Using the EN-48589 - A Crankshaft Socket Wrench (1) rotate the crankshaft and crankshaft sprocket to stage 2 alignment position. Verify the timing components are correctly aligned for stage 2. Timing Chain Alignment Diagram

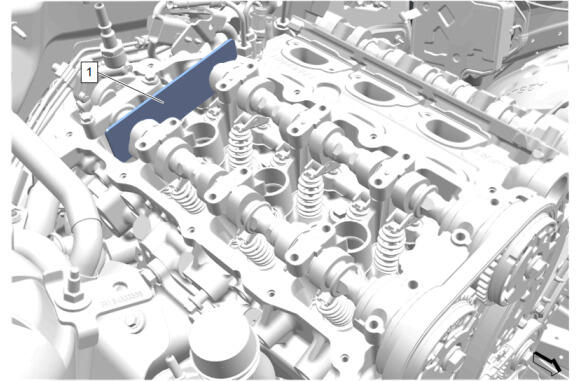

Install the EN-48383 - 2 Camshaft Retaining Tool (1) to ensure Bank 2 is in correct timing position to time Bank 1.

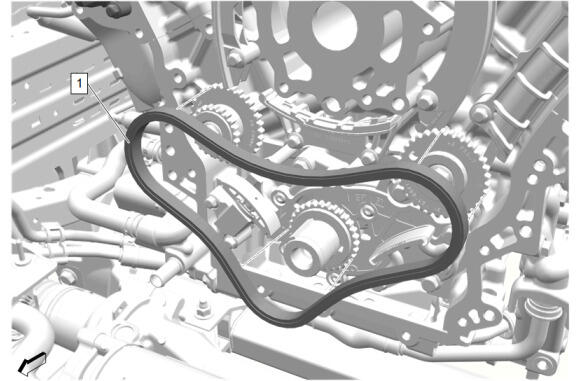

Camshaft Intermediate Drive Chain (1) - Install

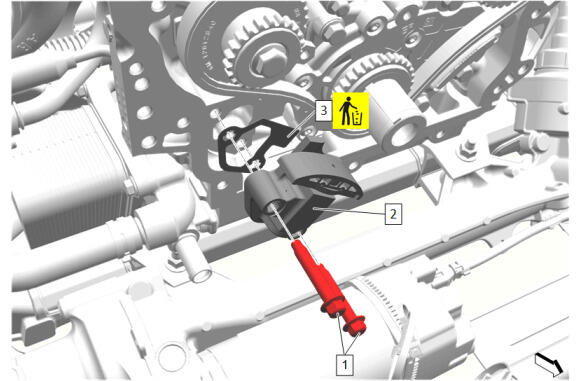

Timing Chain Tensioner Gasket (3) - Install NEW
- Timing Chain Tensioner (2) - Install
- Timing Chain Tensioner Bolt (1) - Install and tighten [2x] - Fastener Specifications

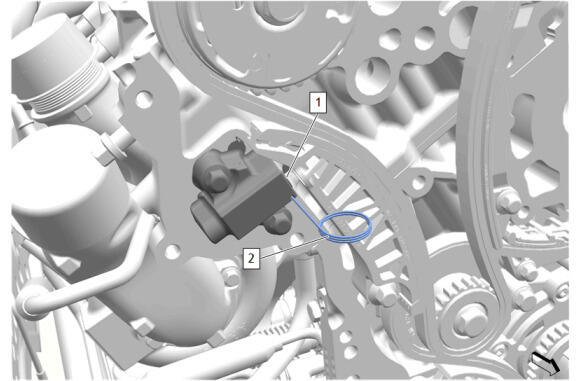

Remove the EN-46112 Tensioner Retraction Pin (2) to release timing chain tensioner plunger (1).
Remove the EN-48383 - 2 Camshaft Retaining Tool (1).
Remove the EN-48383 - 3 Camshaft Retaining Tool (1).
Engine Front Cover (1) - Install - Engine Front Cover Removal and Installation
Refer to Fastener Caution .
