Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the manual transmission from the vehicle. Manual Transmission Removal and Installation
Install the EN-50792 Flywheel Holding Tool (1).
- NOTE:
- If reusing the pressure plate assembly, place an alignment mark on the pressure plate and flywheel for proper alignment during installation.
- DO NOT use air tools to remove the clutch pressure plate bolts
Loosen the clutch pressure plate bolts using the following sequence:
- Loosen bolts 1 and 2 one full turn, then stop.
- Loosen bolts 3 and 4 one full turn, then stop.
- Loosen bolts 5 and 6 one full turn, then stop.
- Repeat Steps 3.1 through 3.3 until all bolts are loose.

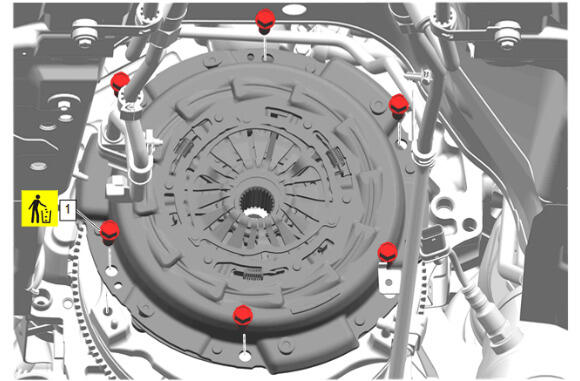

Clutch Pressure Plate Bolt (1) - Remove and DISCARD [6x]
- Remove the clutch pressure plate (2) from the dowel pins on the flywheel.
- Remove the driven disc (3).
- NOTE:
Note the position and direction of the engine flywheel before removal. The flywheel does not use a locating pin for alignment. Mark or scribe the end of the crankshaft and the flywheel before component removal. The existing manual transmission engine flywheel must be installed to the original position and direction.
Mark or scribe the end of the crankshaft and the manual transmission flywheel.
- Install the EN-46106 Flywheel Holding Tool (1).

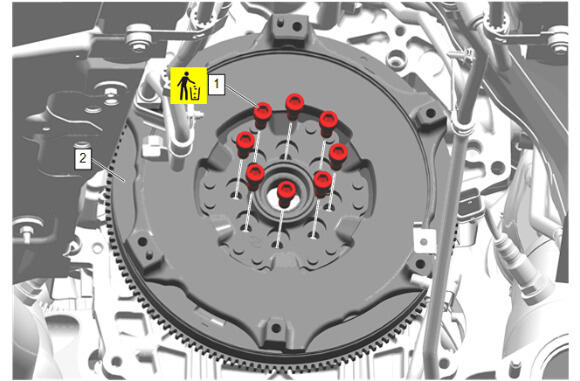

Flywheel Bolt (1) - Remove and DISCARD [8x]
- Flywheel - (2) Remove
- Note the location of the manual transmission flywheel balance weights, if applicable.
Remove the EN-46106 Flywheel Holding Tool (1).
