Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:
- Ensure proper use of room temperature vulcanizing (RTV) sealant. Use of Room Temperature Vulcanizing (RTV) and Anaerobic Sealant
- DO NOT allow any engine oil on the area where the crankshaft rear oil seal housing is to be installed.

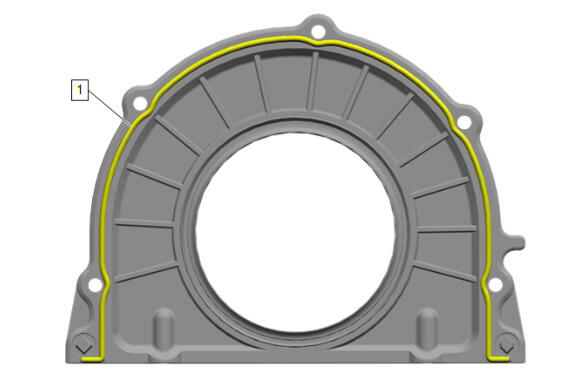

Apply a 3 mm (0.118 in) bead of RTV sealant around the perimeter of the NEW crankshaft rear oil seal housing (1). Adhesives, Fluids, Lubricants, and Sealers
Install the EN-47839 Crankshaft Rear Oil Seal Installation Tool (1) onto the rear of the crankshaft flange.

NOTE:

Do NOT allow any engine oil on the area where the crankshaft rear oil seal housing is to be installed.

Install the NEW crankshaft rear oil seal housing (2) to the engine block.

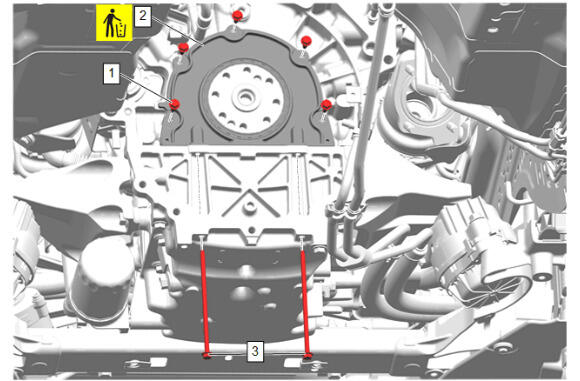

Crankshaft Rear Oil Seal Housing Bolt (1) - Install and hand tighten [5x]
Oil Pan Bolt (2) - Install and hand tighten [2x]
Remove the EN-47839 Crankshaft Rear Oil Seal Installation Tool (1) from the crankshaft flange.
CAUTION:
Refer to Fastener Caution .

Crankshaft Rear Oil Seal Housing Bolt (1) - Tighten in sequence [5x] - Fastener Specifications
Oil Pan Bolt (2) - Tighten in sequence [2x] - Fastener Specifications
Automatic Transmission Flex Plate - Install - Automatic Transmission Removal and Installation (All Wheel Drive) , or Automatic Transmission Removal and Installation (Rear Wheel Drive)
