Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
  1. Transmission - Remove - Automatic Transmission Removal and Installation (All Wheel Drive) , or Automatic Transmission Removal and Installation (Rear Wheel Drive)
  2. GM4017620

    Install the EN-46106  Flywheel Holding Tool (1).

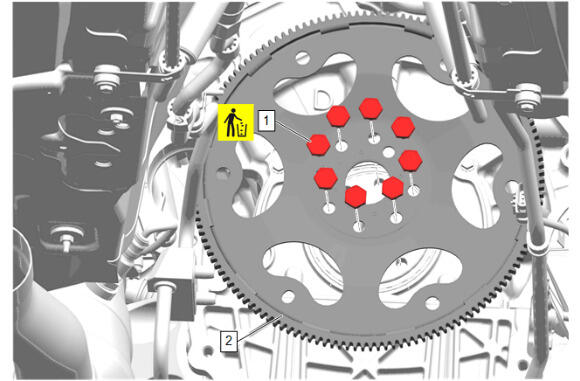

  3. GM5906799

    Automatic Transmission Flex Plate Bolt (1) - Remove and DISCARD [8x]

  4. Automatic Transmission Flex Plate (2) - Remove
  5. GM4017620

    Remove the EN-46106  Flywheel Holding Tool (1).
