Installation Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

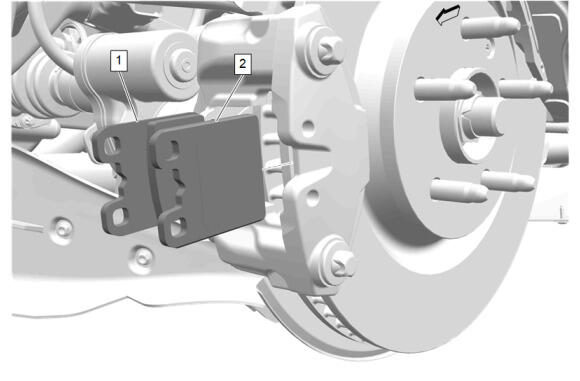

Parking Brake Caliper Outer Pad (2) - Install
- Parking Brake Caliper Inner Pad (1) - Install

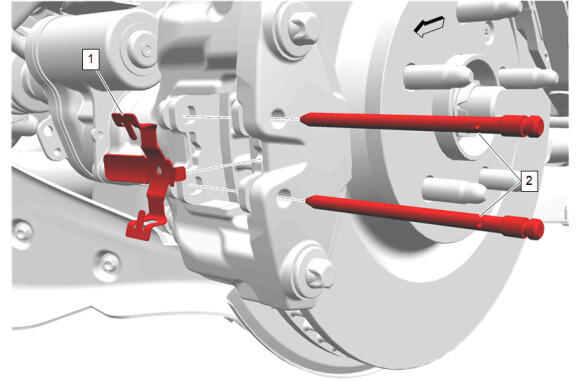

Parking Brake Caliper Pad Spring (1) - Install
- Parking Brake Caliper Pin (2) - Install [2x]

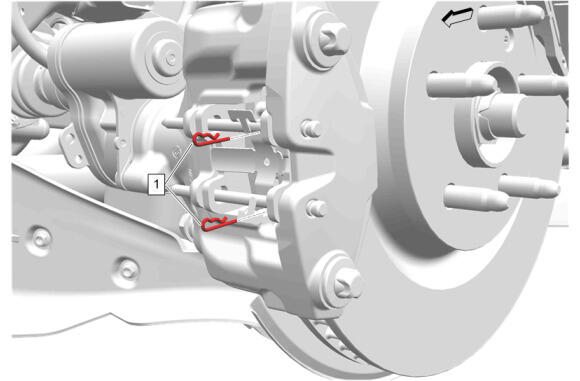

Parking Brake Caliper Pin Clip (1) - Install [2x]
- Install the rear tire and wheel assembly. Tire and Wheel Removal and Installation
- Remove the support and lower the vehicle.
- Calibrate the electronic parking brake. Park Brake Calibration
