Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Ride Control Switch (1) - Install
Courtesy of GENERAL MOTORS COMPANY

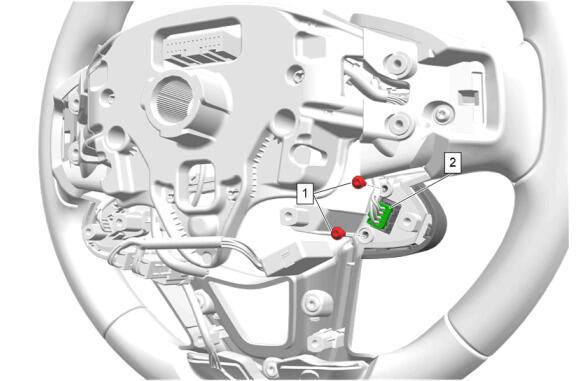

Connect the electrical connector. (2)

CAUTION:

Fastener Caution .

Steering Wheel Bolt (1) @ Ride Control Switch - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

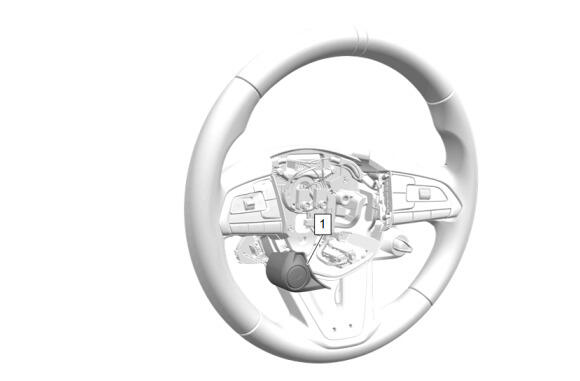

Steering Wheel Shroud (1) - Install [3x]
Connect the electrical connectors.
Courtesy of GENERAL MOTORS COMPANY

Steering Wheel Bolt (2) - Install and tighten [6x] - Fastener Specifications
Steering Wheel Bolt (1) - Install and tighten [4x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Steering Wheel (2) - Install
Prepare the steering wheel bolt (1) for installation as follows:
1. Remove any loose cured adhesive from the external threads of the component using a lint free cloth.
2. Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive.
3. Apply thread locking adhesive to the external threads of the component. Adhesives, Fluids, Lubricants, and Sealers
4. Ensure there are no gaps in the thread locking adhesive once applied to the component.
Steering Wheel Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connectors.
Install any connector position assurance (CPA) devices or secondary locks.
Steering Wheel Airbag (2) - Install
Steering Wheel Airbag Bolt (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Install the 2 steering wheel airbag access hole covers (1).
Enable the SIR System. SIR Disabling and Enabling
