Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle. Lifting and Jacking the Vehicle
Remove the front tire and wheel assembly. Tire and Wheel Removal and Installation
Courtesy of GENERAL MOTORS COMPANY

Front Tire Front Air Deflector Bolt (1) - Remove [4x]
Front Tire Front Air Deflector (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

Front Bumper Fascia Air Deflector Bolt (1) - Remove [3x]
Front Bumper Fascia Bolt (2) - Remove [2x]
Courtesy of GENERAL MOTORS COMPANY

Engine Front Splash Shield Retainer (2) - Remove [2x]
Engine Front Splash Shield Bolt (1) - Remove [5x]
Engine Front Splash Shield (3) - Remove
Courtesy of GENERAL MOTORS COMPANY

Front Wheelhouse Liner Bolt (1) - Remove [7x]
Front Wheelhouse Liner Retainer (2) - Remove [4x]
Front Wheelhouse Liner (3) - Remove
Courtesy of GENERAL MOTORS COMPANY

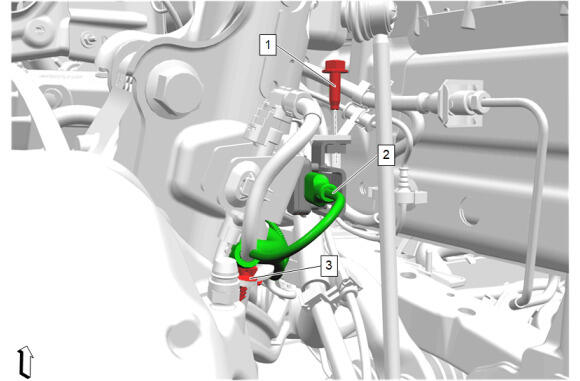

Disconnect the electronic suspension wheel front vertical accelerometer electrical connector (2).
Remove the electronic suspension wheel front vertical accelerometer retainer (1).
Remove the electronic suspension wheel front vertical accelerometer retainer (3).
Courtesy of GENERAL MOTORS COMPANY

Remove the 3 electronic suspension wheel front vertical accelerometer retainers (1).
Courtesy of GENERAL MOTORS COMPANY

Remove the electronic suspension wheel front vertical accelerometer retainer (3).
Electronic Suspension Front Vertical Accelerometer Bolt (1) - Remove
Electronic Suspension Wheel Front Vertical Accelerometer (2) - Remove
