Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

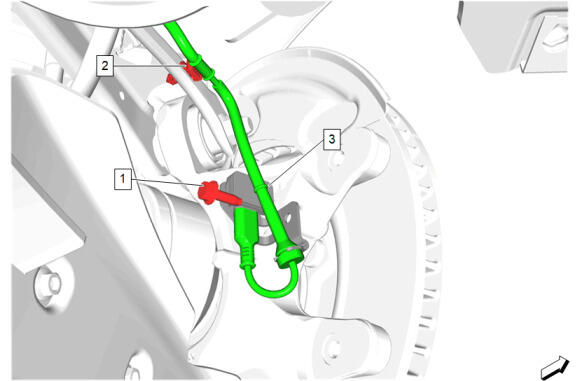

  1. GM5873811Courtesy of GENERAL MOTORS COMPANY

    Electronic Suspension Rear Vertical Accelerometer (3) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Electronic Suspension Rear Vertical Accelerometer Bolt (1) - Install and tighten - Fastener Specifications
  3. Install the electronic suspension rear vertical accelerometer retainer (2).

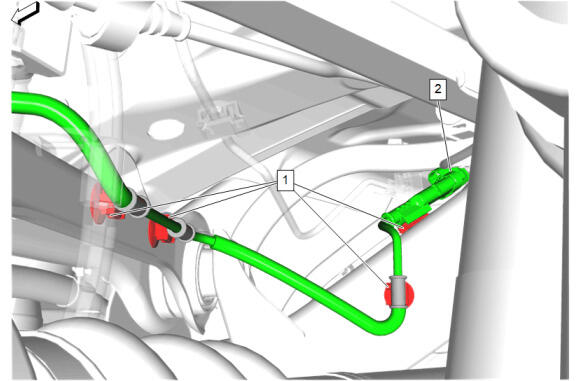

  4. GM5873809Courtesy of GENERAL MOTORS COMPANY

    Install the 4 electronic suspension rear vertical accelerometer retainers (1).

  5. Connect the electronic suspension rear vertical accelerometer electrical connector (2).
  6. Install the rear tire and wheel assembly. Tire and Wheel Removal and Installation
  7. Remove the support and lower the vehicle.
