Lower Crankcase Extension Inspection
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

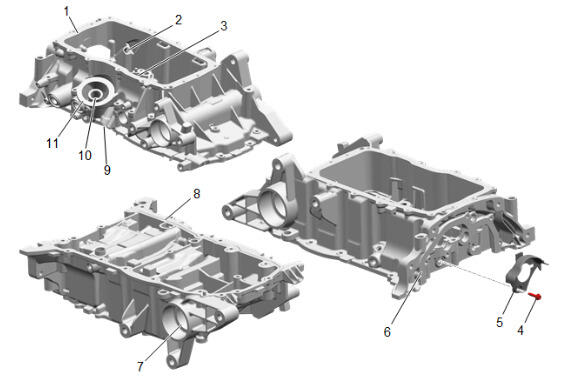

Inspect all sealing and mating surfaces (1, 3, 4, 7, 8) for damage, repair or replace the lower crankcase extension if necessary.
- Inspect the oil level indicator tube hole (2) for damage or excessive debris.
- Inspect the oil cooler seal area (3) for any damage.
- Inspect the oil pump drive chain cover (5) and bolt (4) for any damage. Fastener Specifications
- Inspect the oil filter surface (8) for damage or excessive debris.
- Inspect the oil filter bypass valve hole (9) for damage or excessive debris.
- Inspect the balancer shafts (10) for grooves, cracks, scratches and any other damage.
- Inspect all threaded and through holes for damage or excessive debris.
- Inspect all bolts for damage, if damaged replace with NEW bolts only.
