Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

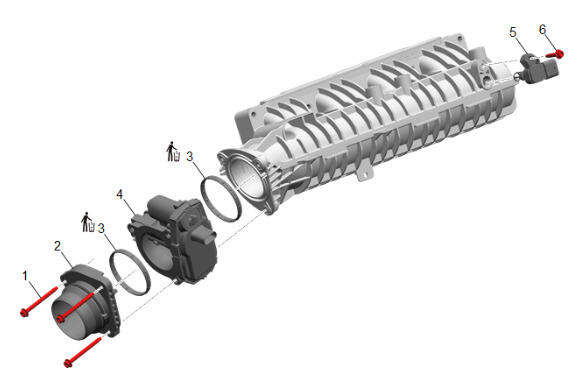

  1. GM5520990

    Intake Air Pressure and Temperature Sensor (5) - Install

  2. CAUTION:

    Refer to Fastener Caution

  3. Intake Air Pressure and Temperature Sensor Bolt (6) - Install - Fastener Specifications
  4. Throttle Body Seal (3) - Install NEW [2x]
  5. Throttle Body (4) - Install
  6. Throttle Body Adapter (2) - Install
  7. Throttle Body Bolt (1) - Install and tighten [3x] - Fastener Specifications
  8. GM5087317

    Intake Manifold Gasket (2) - Install NEW

  9. GM5454734
    NOTE:

    Check that the 2 pins (4) of the intake manifold are seated correctly in the cylinder head.

    Intake Manifold (3) - Install

  10. Charge Air Cooler Outlet Air Tube (2) @ Intake Manifold (3) - Install
  11. Connect throttle body electrical connector (1)
  12. GM5448534

    Intake Manifold Bolt (1) - Tighten in sequence [7x] - Fastener Specifications

  13. GM5420336

    Electrical Connector (1) @ Intake Air Pressure and Temperature Sensor - Connect

  14. GM5071195

    Retainer Spring (1) - Engage

  15. GM5512539

    Radiator Surge Tank Inlet Pipe Bracket (2) - Install [2x]

  16. Radiator Surge Tank Outlet Hose Clip Bracket Nut (1) - Install and tighten [2x] - Fastener Specifications
  17. GM5137171

    Reposition the wiring harness (3) and connect as necessary.

  18. Retainer (1) @ Intake Manifold (2) - Install [7x]
  19. GM5299671

    Evaporative Emission Canister Purge Pump (2) - Install

  20. Evaporative Emission Canister Purge Pump Bolt (1) - Install and tighten [3x] - Fastener Specifications
  21. GM5439477

    Evaporative Emission Pipe (1) @ Evaporative Emission Canister Purge Pump (2) - Connect - Plastic Collar Quick Connect Fitting Service

  22. Connect the electrical connector.
  23. GM5431234

    Connect the evaporative emission canister purge tube (2) to the retainer (3).

  24. Connect the evaporative emission canister purge tube quick disconnects (1). Plastic Collar Quick Connect Fitting Service
  25. GM5137016

    Upper Intake Manifold Bracket (2) - Install

  26. Upper Intake Manifold Cover Nut (1) - Install and tighten [2x] - Fastener Specifications
  27. GM5137013

    Upper Intake Manifold Cover Bracket Bolt (1) @ Upper Intake Manifold Bracket (2) - Install and tighten [2x] - Fastener Specifications

  28. GM5137012

    Wiring Harness (4) - Reposition

  29. Retainer (2) @ Upper Intake Manifold Bracket (3) - Install
  30. Electrical Connector (1) - Connect [3x]
  31. Ensure any remaining retainers are connected securely.
  32. GM5068106

    Oil Level Indicator Tube Seal (2) - Install NEW

  33. Oil Level Indicator Tube (1) - Install
  34. GM5136547

    Oil Level Indicator Tube Bolt (1) - Install - Fastener Specifications

  35. Electrical Connector (1) @ Oil Level Indicator Tube (3) - Install
  36. GM5335764

    Oil Level Indicator (1) - Install

  37. GM5335089

    Intake Manifold Cover (1) @ Upper Intake Manifold Bracket (2) - Install

  38. GM5335087
    NOTE:

    Ensure the engine sight shield retainers fully engage the intake manifold cover studs.

    Push down on the front of the intake manifold cover (1) engaging the intake manifold cover retainers to the intake manifold cover studs.

  39. Install the oil fill cap.
  40. Connect the battery. Battery Negative Cable Disconnection and Connection
  41. Perform the throttle body idle air flow compensation reset. Throttle Body Idle Air Flow Compensation Reset
