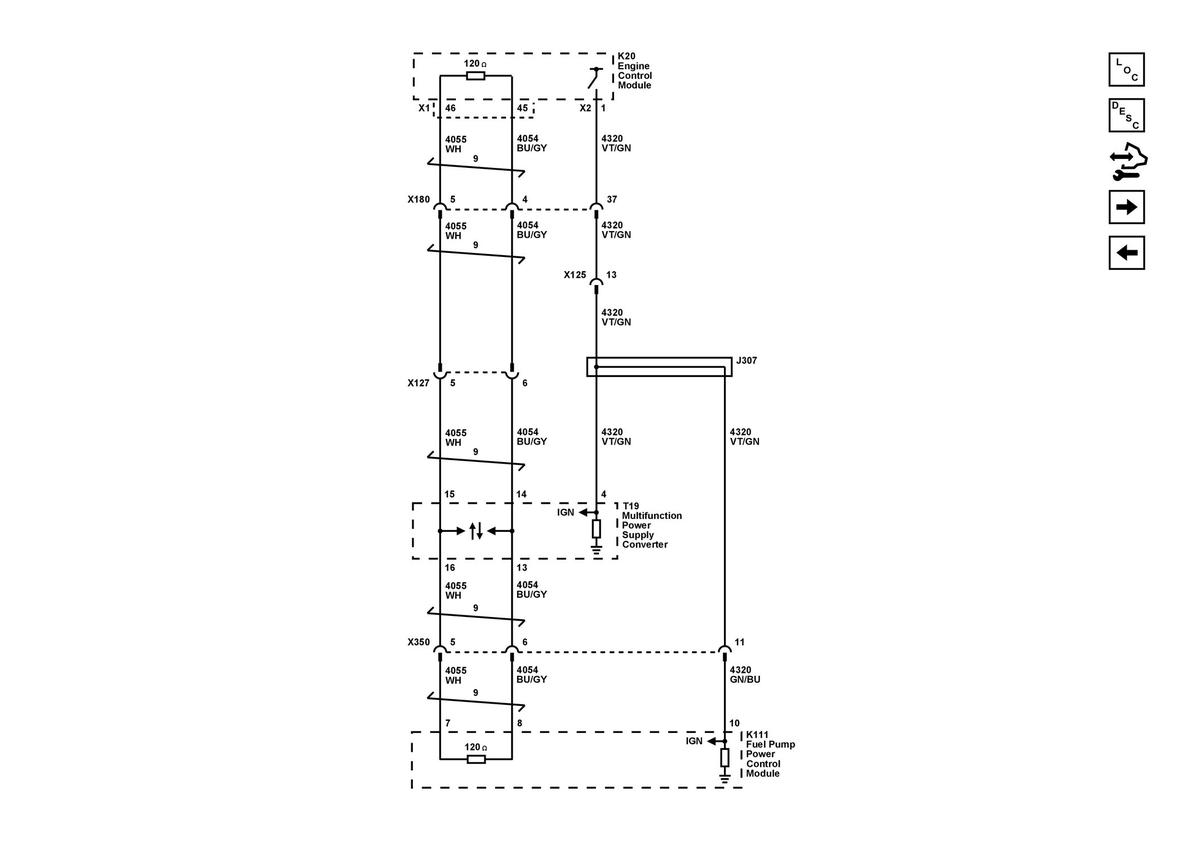

Powertrain and Enable CAN (-EPH)

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
GM5751009Courtesy of GENERAL MOTORS COMPANY
