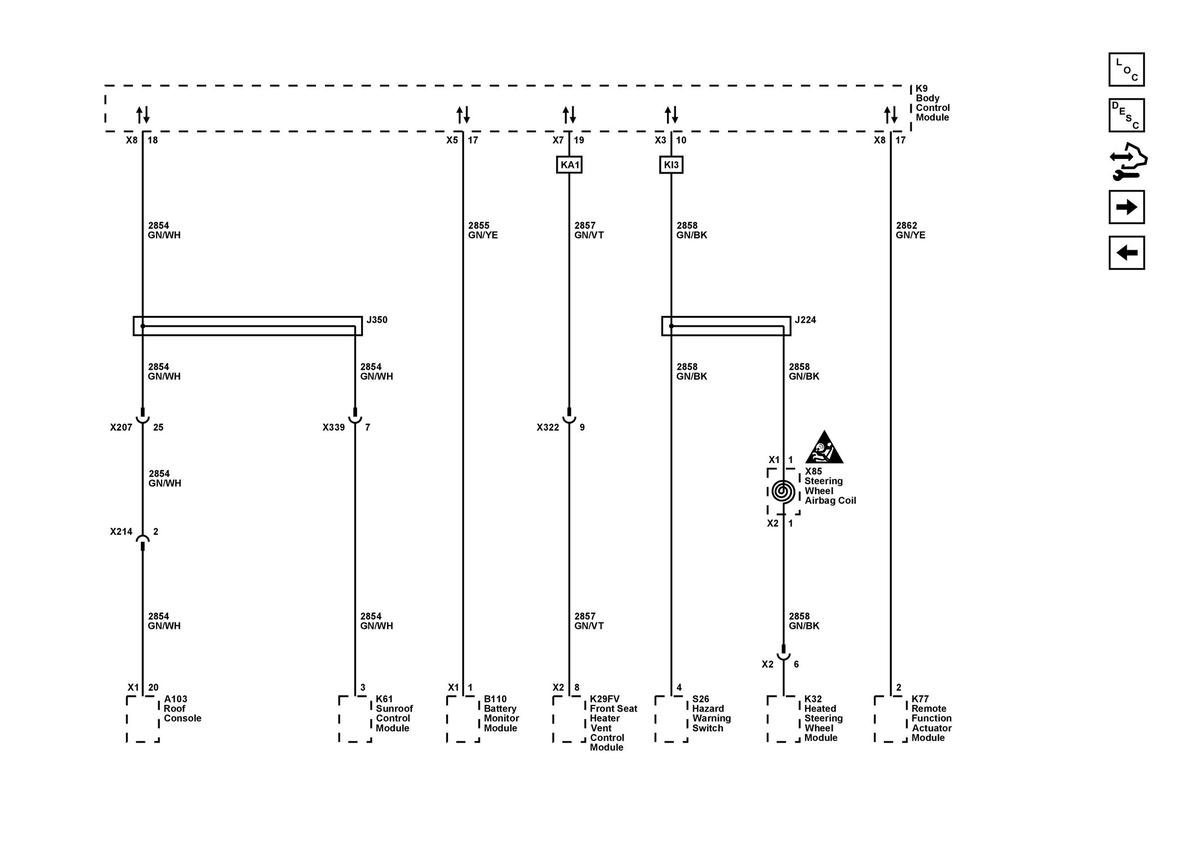

Body Control Module Local Interconnect Network (LIN) Busses 8, 9, 11, 12, and 16

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
GM5751014Courtesy of GENERAL MOTORS COMPANY
