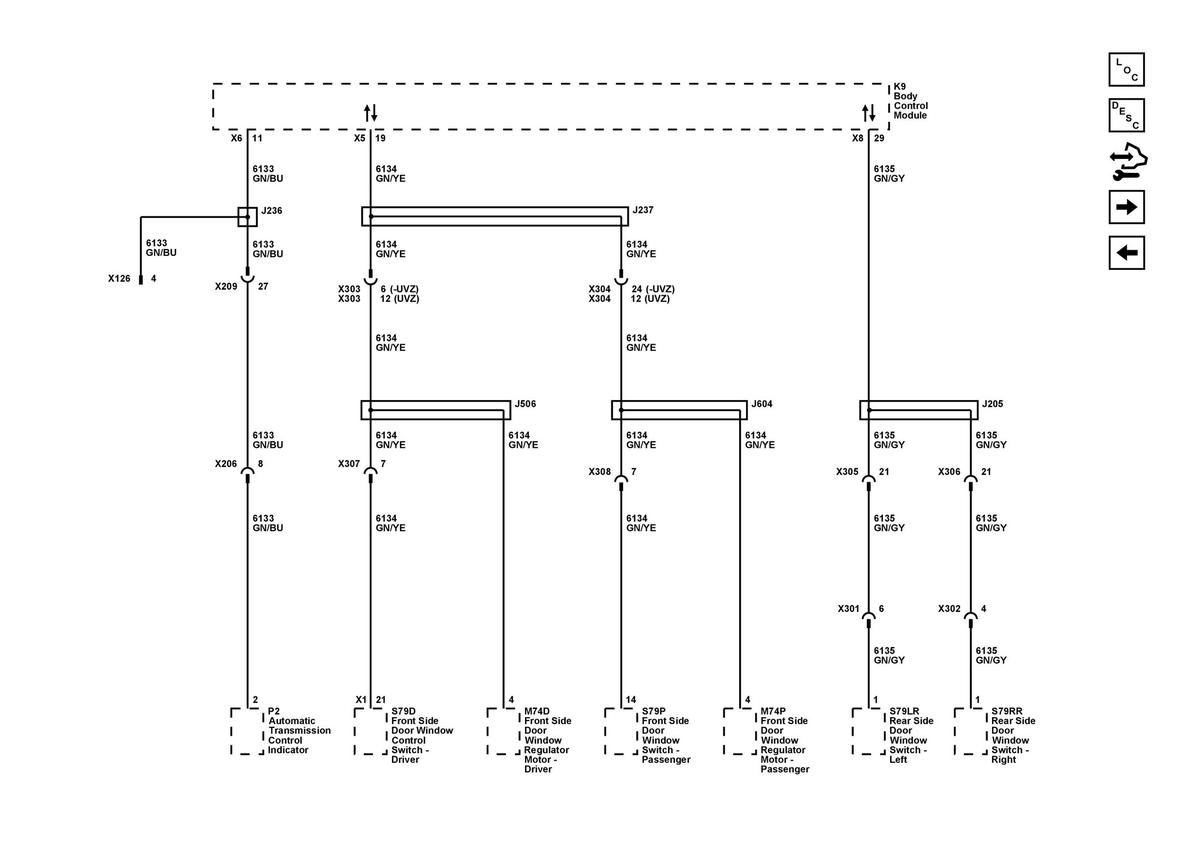

Body Control Module Local Interconnect Network (LIN) Busses 2, 3, and 4

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
GM5751012Courtesy of GENERAL MOTORS COMPANY
