Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
- Move the steering column up so you can access the lower left corner of the instrument panel center trim pad.
Start with a flat-bladed plastic trim tool in the lower left corner of the instrument panel center trim pad (1) and work your way clockwise.
- Instrument Panel Center Trim Pad (1) - Remove
- Disconnect the electrical connector.

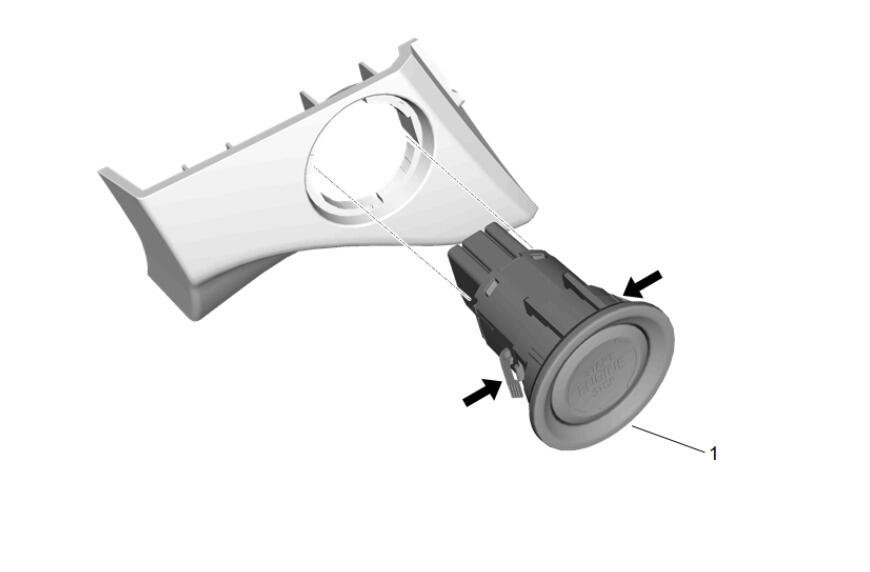

Depress the retaining tabs on the on/off vehicle switch (1).
- On/Off Vehicle Switch (1) - Remove
