Installation Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
Install the fuse block terminals.

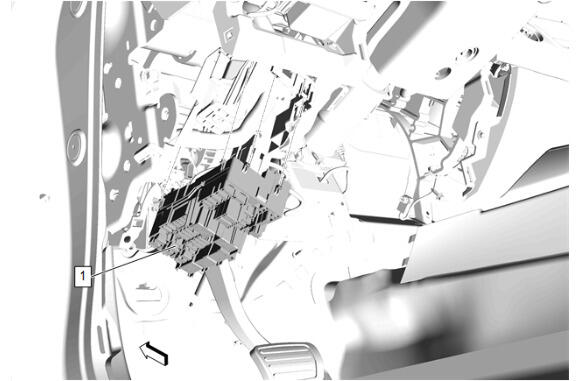

- Install the instrument panel wiring harness fuse block (1) to the instrument panel wiring harness junction block bracket tabs.

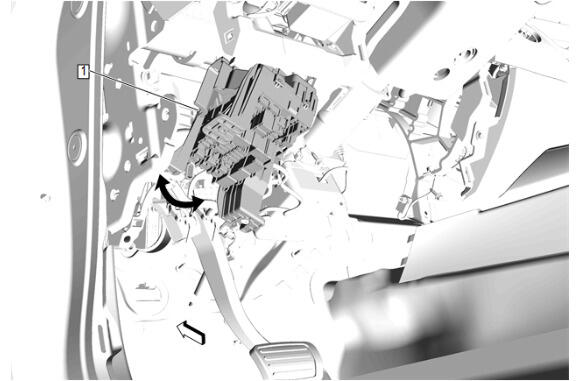

Position the fuse block and bracket (1) to the vehicle.
- Enable the SIR System. SIR Disabling and Enabling .
Instrument Panel Carrier (1) - Install - Instrument Panel Carrier Replacement (without Head Up Display) , or Instrument Panel Carrier Replacement (with Head Up Display)
