Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
- NOTE:
Use a small flat-bladed tool to disengage integral tabs on cargo tie down loop bolt cap
Cargo Tie Down Loop Bolt Cap (1) - Remove [2x]
- Cargo Tie Down Loop Bolt (2) - Remove [2x]
- Cargo Tie Down Loop (3) - Remove [2x]
Rear Compartment Floor Panel Trim (1) - Remove
Use a small flat-bladed tool to disengage integral tabs on rear end trim finish panel opening cover (1).
- Rear End Trim Finish Panel Opening Cover (1) - Remove
With a flat bladed plastic trim tool, disengage the integral clips.
- Rear End Trim Finish Panel (1) - Remove
- NOTE:
Carefully manipulate the deck lid hinge opening of the rear compartment side trim past the hinge cover.
Rear Compartment Side Trim Insulator Retainer (1) - Remove [3x]
- Rear Compartment Side Trim-Left Side (2) - Reposition away
- Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection
Disengage the retaining tabs (1).
- Rear Body Fuse Block Cover (2) - Remove

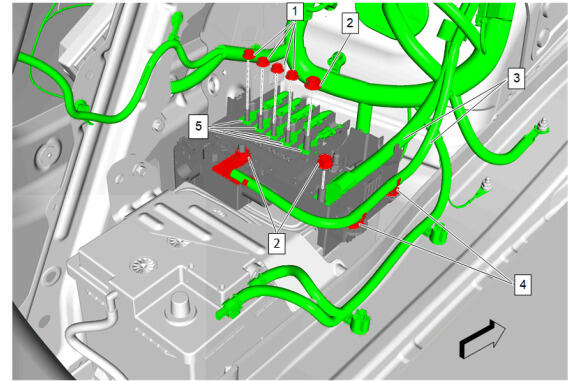

Body Harness Terminal Nut (1) - Remove [4x]
- Battery Positive Cable Nut (2) - Remove [3x]
- Retainer (4) - Disengage [2x]
- Battery Positive Cable (3) - Remove [2x]
- Body Harness Terminal (5) - Remove [5x]

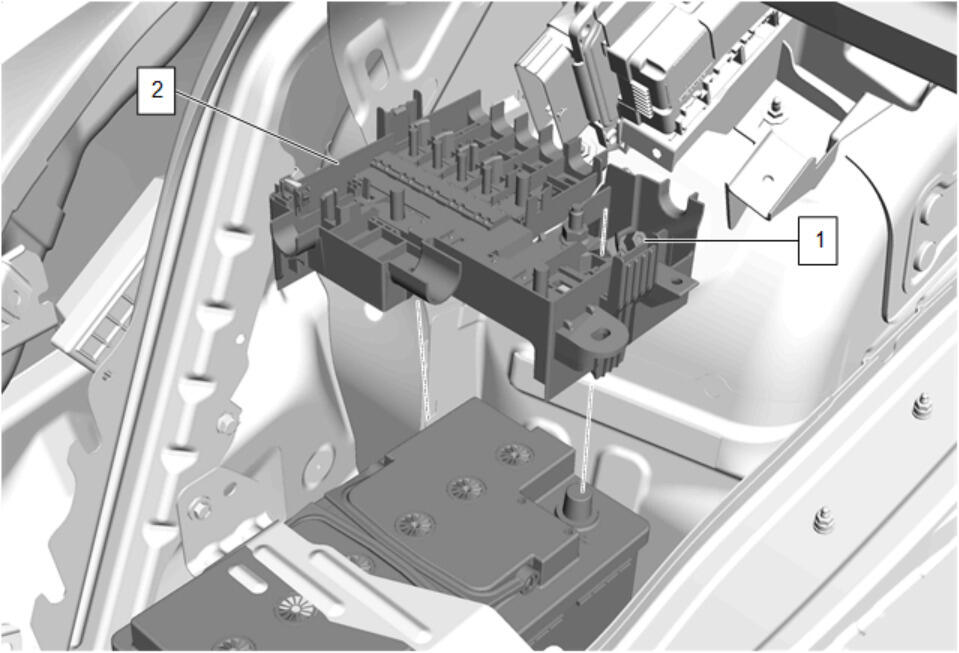

Battery Positive Post Clamp Nut (1) - Loosen
- Disengage the 2 retaining tabs and reposition the battery distribution fuse block (2).

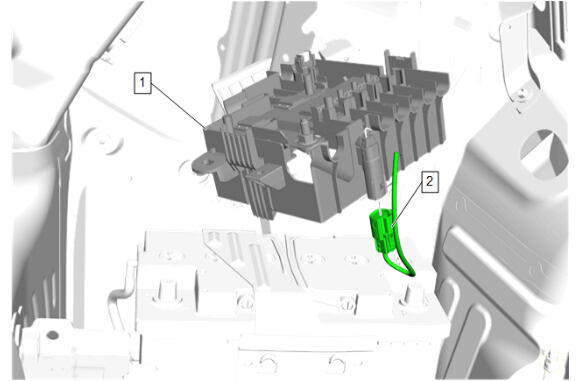

Electrical Connector (2) - Disconnect
- Battery Distribution Fuse Block (1) - Remove
