Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

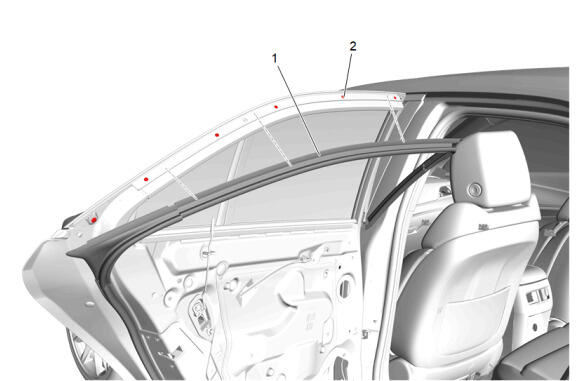

Reposition the rear door weatherstrip (1) to gain access to the rear side door window upper reveal molding rivets (2).
- WARNING:
Refer to Eye Protection Warning .

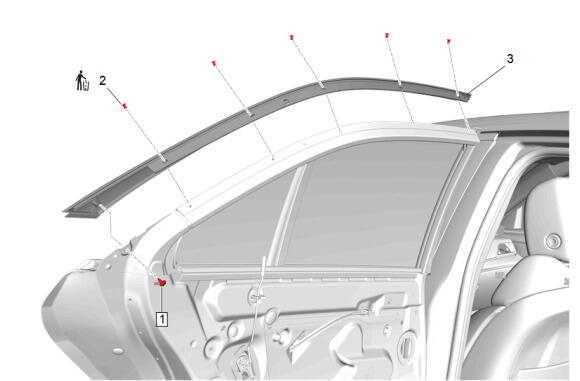

Drill out the rivets. (2) [5x]
- Rear Side Door Window Upper Reveal Molding Bolt (1) - Remove
- Rear Side Door Window Upper Reveal Molding (3) - Remove
