Installation Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
- If adhesive residue is present on the rear side door window upper reveal molding, clean molding using a acetone based cleaner on a lint free cloth.
Rear Side Door Window Upper Reveal Molding (3) - Install
- Rear Side Door Window Upper Reveal Molding Bolt (1) Install and tighten - Fastener Specifications
- Rear Side Door Window Upper Reveal Molding Rivet (2) - Install NEW [5x]

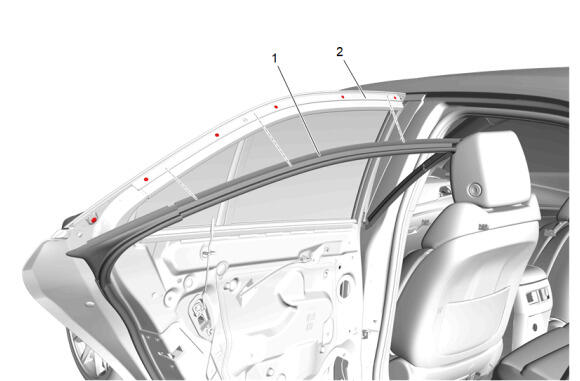

Position the rear side door weatherstrip (1) into the rear side door window upper reveal molding (2).
