Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Refer to Glass and Sheet Metal Handling Warning .
WARNING:
Disconnect the power window switch when working inside the door. When operated, the Express Up/Down Feature allows the door window to move very quickly, without stopping, which could cause personal injury.
- Place the window in the full up position and tape in place.
- Rear Side Door Trim - Remove - Rear Side Door Trim Removal and Installation
Rear Side Door Trim Bolt (1) - Remove [2x]
- Rear Side Door Pull Handle Bracket (2) - Remove
Route the rear side door inside handle cable through hole in deflector.
- Rear Side Door Water Deflector (1) - Remove

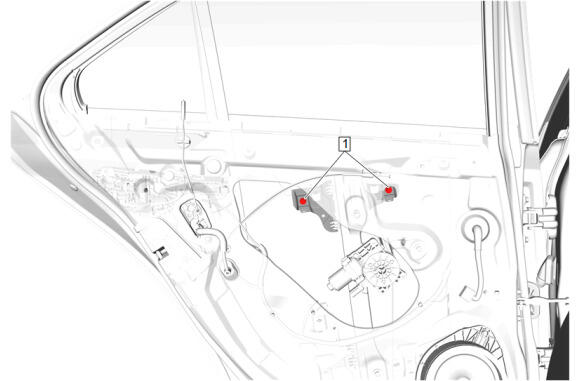

Rear Side Door Window Regulator Sash Clamp Nut (1) - Loosen [2x]
- Place the window regulator in the full down position.
- Disconnect the electrical connector.

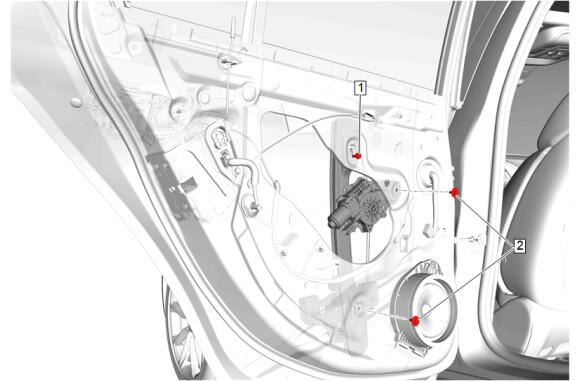

Rear Side Door Window Regulator Bolt (1) - Loosen
- Rear Side Door Window Regulator Bolt (2) - Remove [2x]

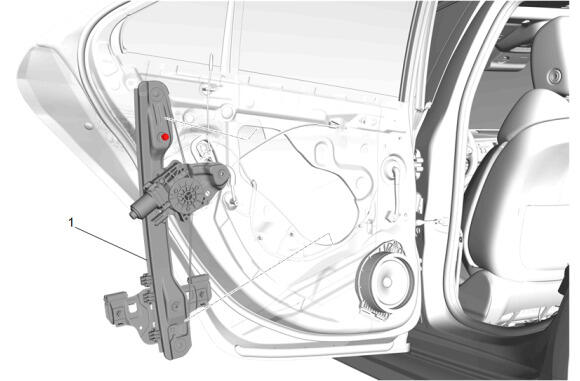

Lift up and out on the rear side door window regulator (1) to remove from the rear side door.

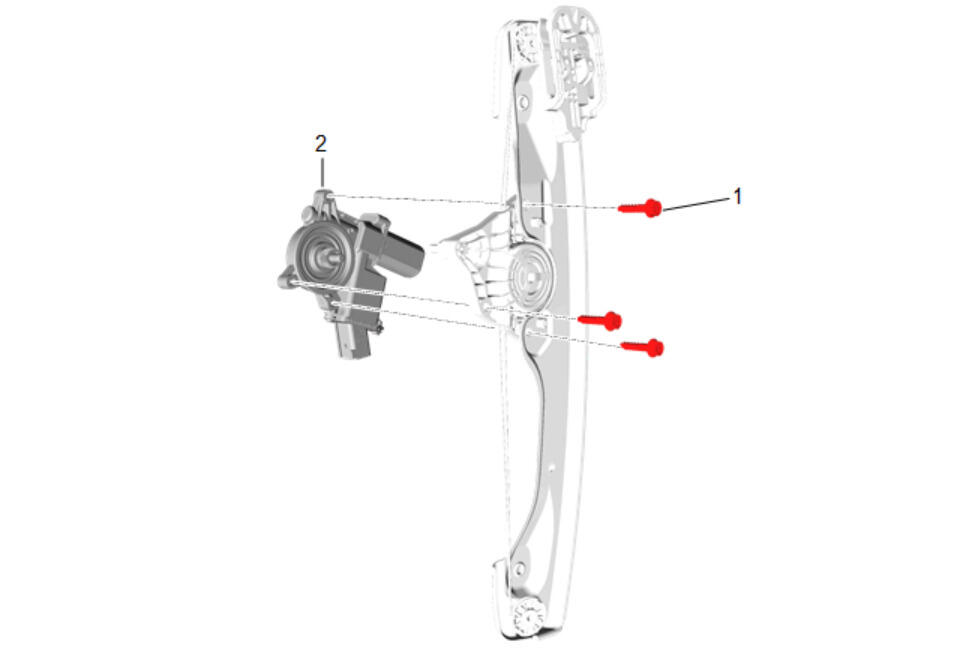

Rear Side Door Window Regulator Motor Bolt (1) - Remove [3x]
- Rear Side Door Window Regulator Motor (2) - Remove
