Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
  1. Rear Side Door Trim - Remove - Rear Side Door Trim Removal and Installation

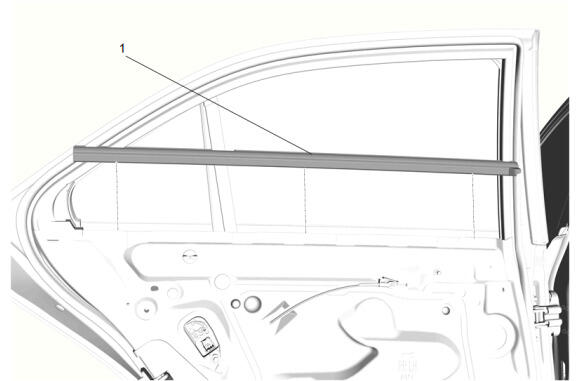

  2. GM5480842Courtesy of GENERAL MOTORS COMPANY

    Lift the rear side door window inner sealing strip (1) off the pinch-weld flange.

  3. Rear Side Door Window Inner Sealing Strip (1) - Remove
