Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

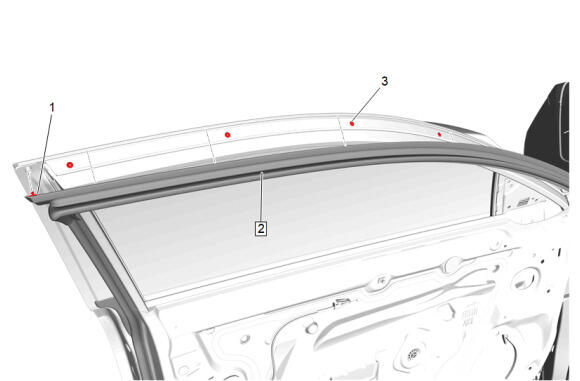

Starting at the top rear of the front door weatherstrip, pull to release the retainer (1) and reposition the front door weatherstrip (2) from the front side door window upper reveal molding to gain access to the front side door window upper reveal molding rivets (3).
- WARNING:
Refer to Eye Protection Warning .

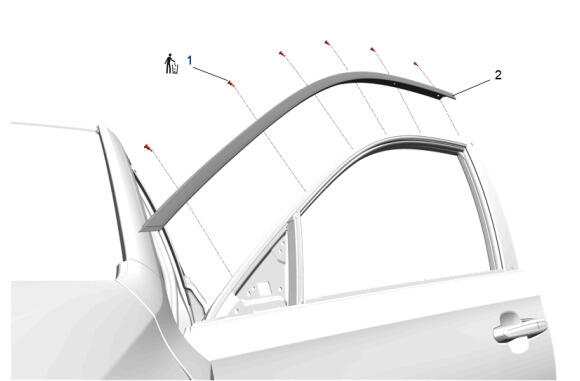

Drill out the rivets. (1) - Remove and DISCARD [6x]
- Front Side Door Window Upper Reveal Molding (2) - Remove
