Installation Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
- If adhesive residue is present on the front side door window upper reveal molding, clean molding using a acetone based cleaner on a lint free cloth.

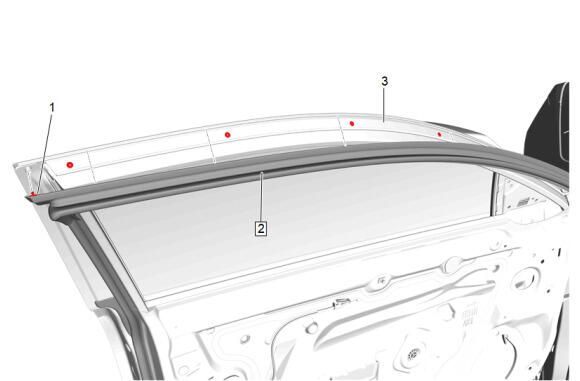

Front Side Door Window Upper Reveal Molding (2) - Install
- Front Side Door Window Upper Reveal Molding Rivet (1) - Install NEW [6x]
Position the front door weatherstrip (2) into the front side door window upper reveal molding (3) then push to install the weatherstrip retainer (1) into the front side door window upper reveal molding.
