Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

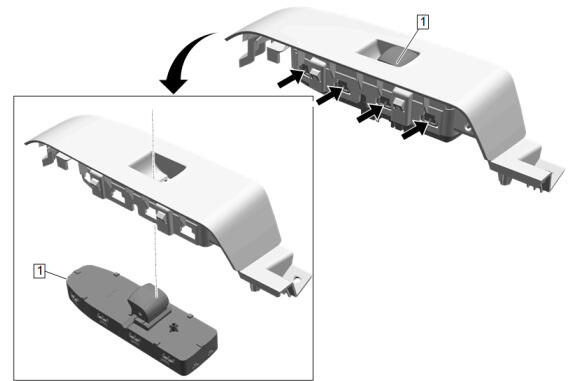

Front Side Door Window Switch - Right Side (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connectors.
Reinstall the harness retainers, as needed.

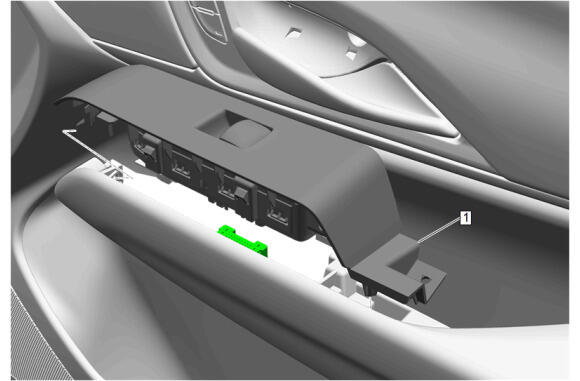

Rotate the front side door armrest switch mount plate (1) up and forward to hook the front retaining feature.
Front Side Door Armrest Switch Mount Plate (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

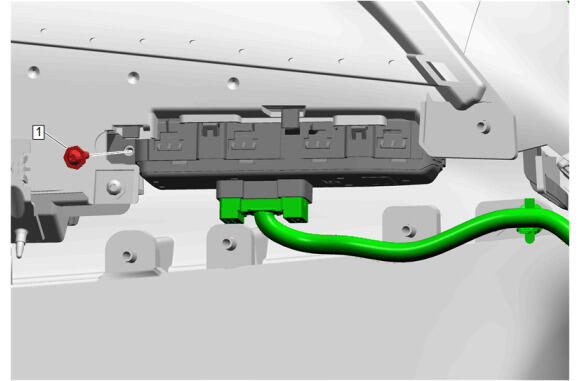

Front Side Door Trim Bolt (1) - Install and tighten - Fastener Specifications
Front Side Door Trim - Install - Front Side Door Trim Removal and Installation
