Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Refer to Glass and Sheet Metal Handling Warning .
WARNING:
Disconnect the power window switch when working inside the door. When operated, the Express Up/Down Feature allows the door window to move very quickly, without stopping, which could cause personal injury.
- Disable the SIR system. SIR Disabling and Enabling
- Front Side Door Trim - Remove - Front Side Door Trim Removal and Installation
Route front side door inside handle cable through hole in deflector (1).
- Front Side Door Water Deflector (1) - Remove
- Place the window in the full up position and tape in place.

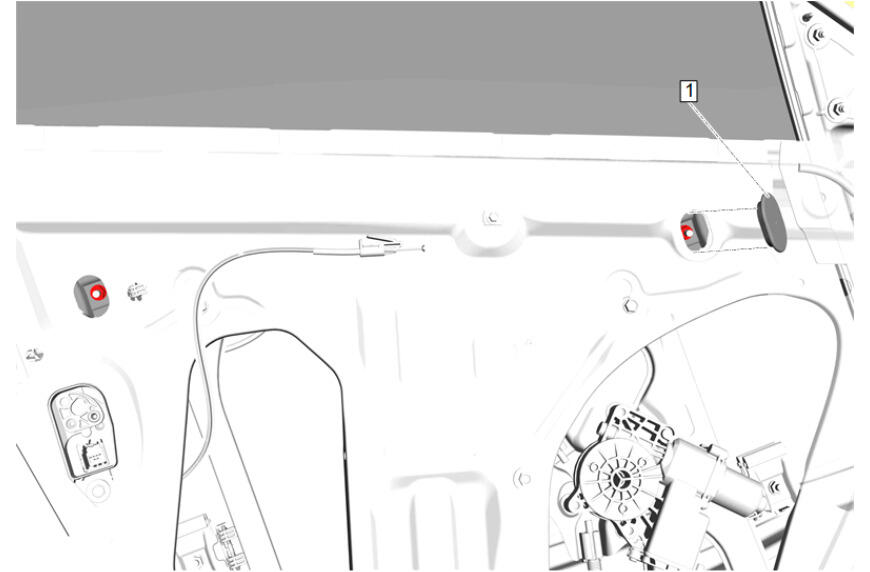

Front Side Door Access Hole Plug (1) - Remove
Front Side Door Window Regulator Sash Clamp Nut (1) - Loosen [2x]
- Place the window regulator in the full down position.
- Disconnect the electrical connector.

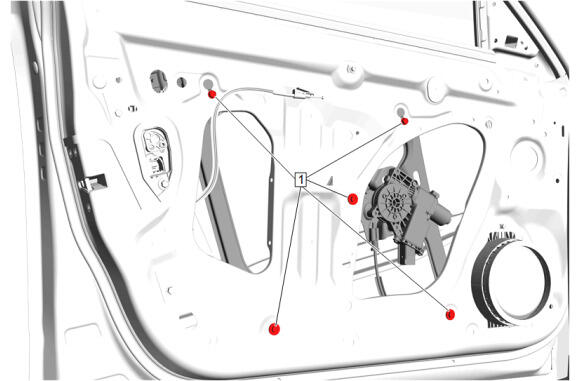

Front Side Door Window Regulator Bolt (1) - Remove [5x]

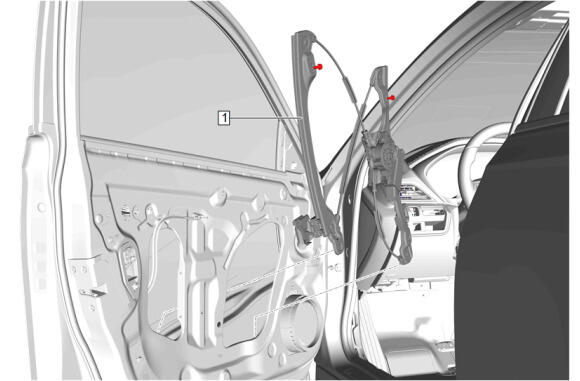

Front Side Door Regulator (1) - Remove

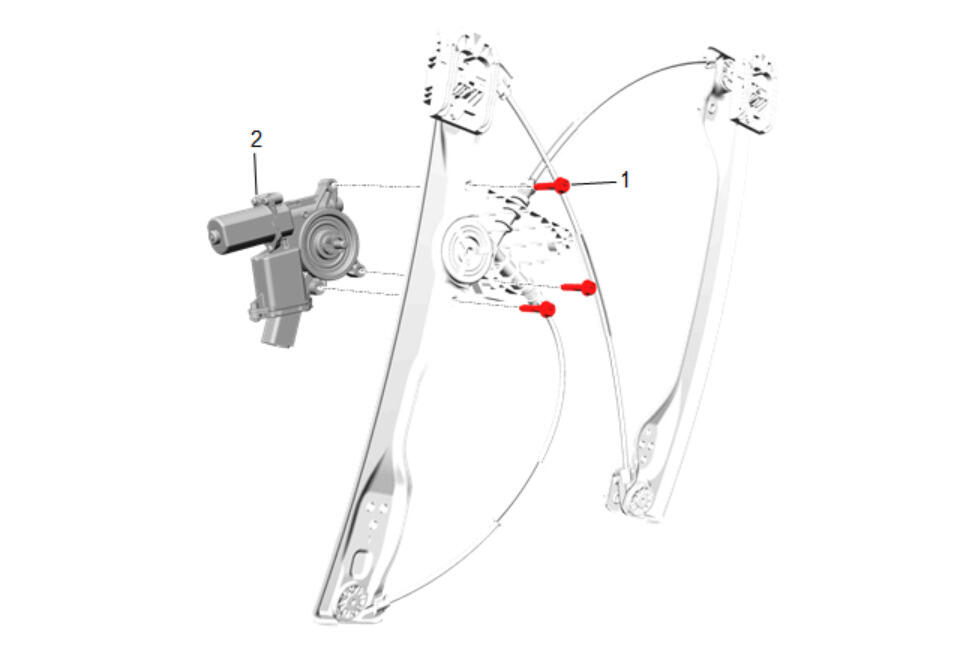

Front Side Door Window Regulator Motor Bolt (1) - Remove [3x]
- Front Side Door Window Regulator Motor (2) - Remove
