Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
Front Side Door Trim (4) - Remove - Front Side Door Trim Removal and Installation
Use a flat-bladed plastic tool to remove the push-in retainers.
- Front Side Door Window Garnish Molding Retainer (1) - Remove [2x]
- Pull outward starting at the front and moving slowly rearward to remove the window garnish molding (2).
- Front Side Door Window Garnish Molding (2) - Remove
Disconnect all electrical connectors.

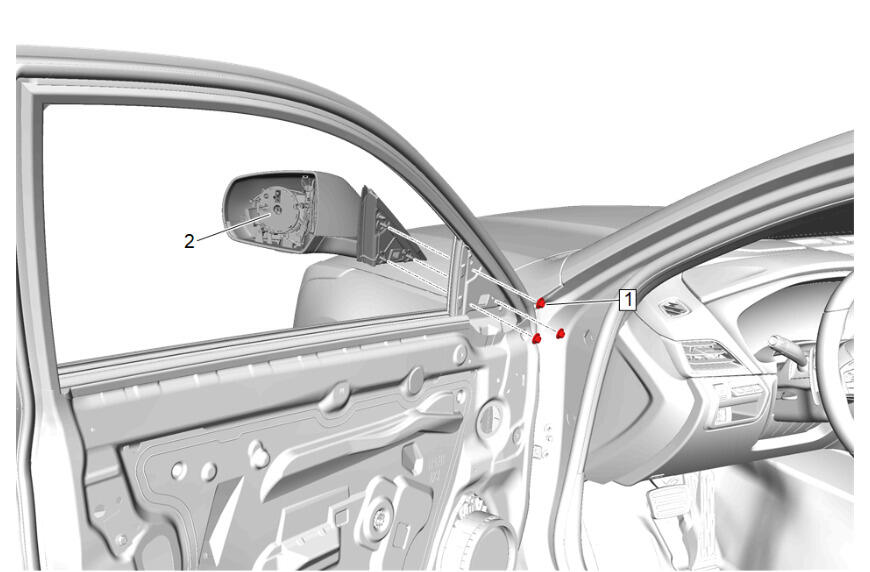

- Outside Rearview Mirror Nut (1) - Remove [3x]
- Outside Rearview Mirror Housing (2) - Remove

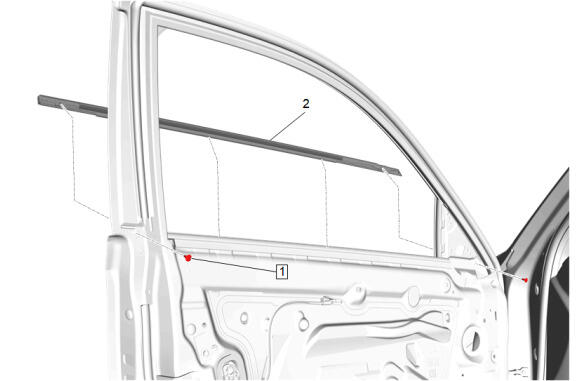

Reposition the weather strip to gain access to the front side door window belt reveal molding bolt (1).
- Front Side Door Window Belt Reveal Molding Bolt (1) - Remove [2x]
- Start at one end and lift up to remove the front side door window belt reveal molding (2).
- Front Side Door Window Belt Reveal Molding (2) - Remove
NOTE:
Leave 1 outside rearview mirror nut partially installed, secure the outside rearview mirror housing, and proceed to remove remaining outside rearview mirror nut.
