Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

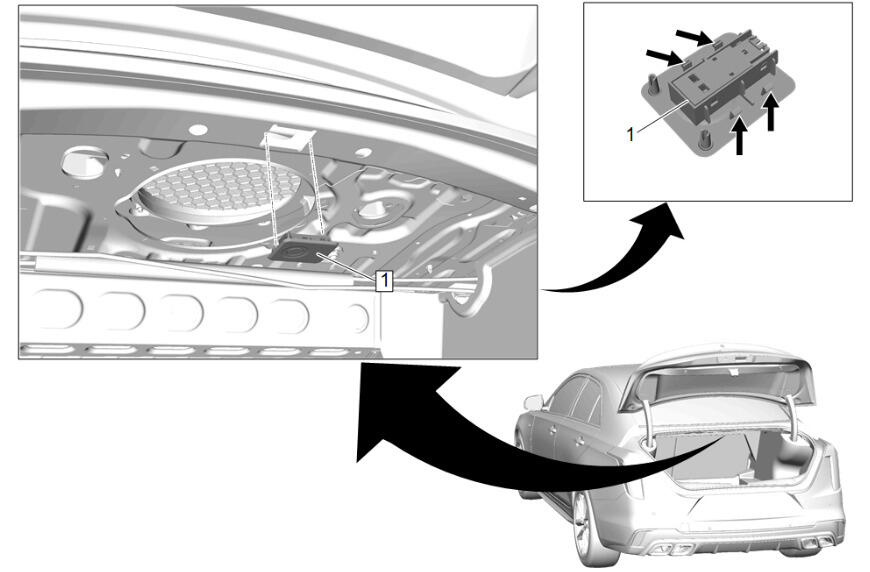

  1. GM5442381Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  2. Rear Compartment Courtesy Lamp (1) - Install
  3. Ensure the retaining tabs have fully secured.
